Chapter 6 Device Control and Upgrading Remote Relay Control
EM13x Series SMART MULTIFUNCTION METER 119

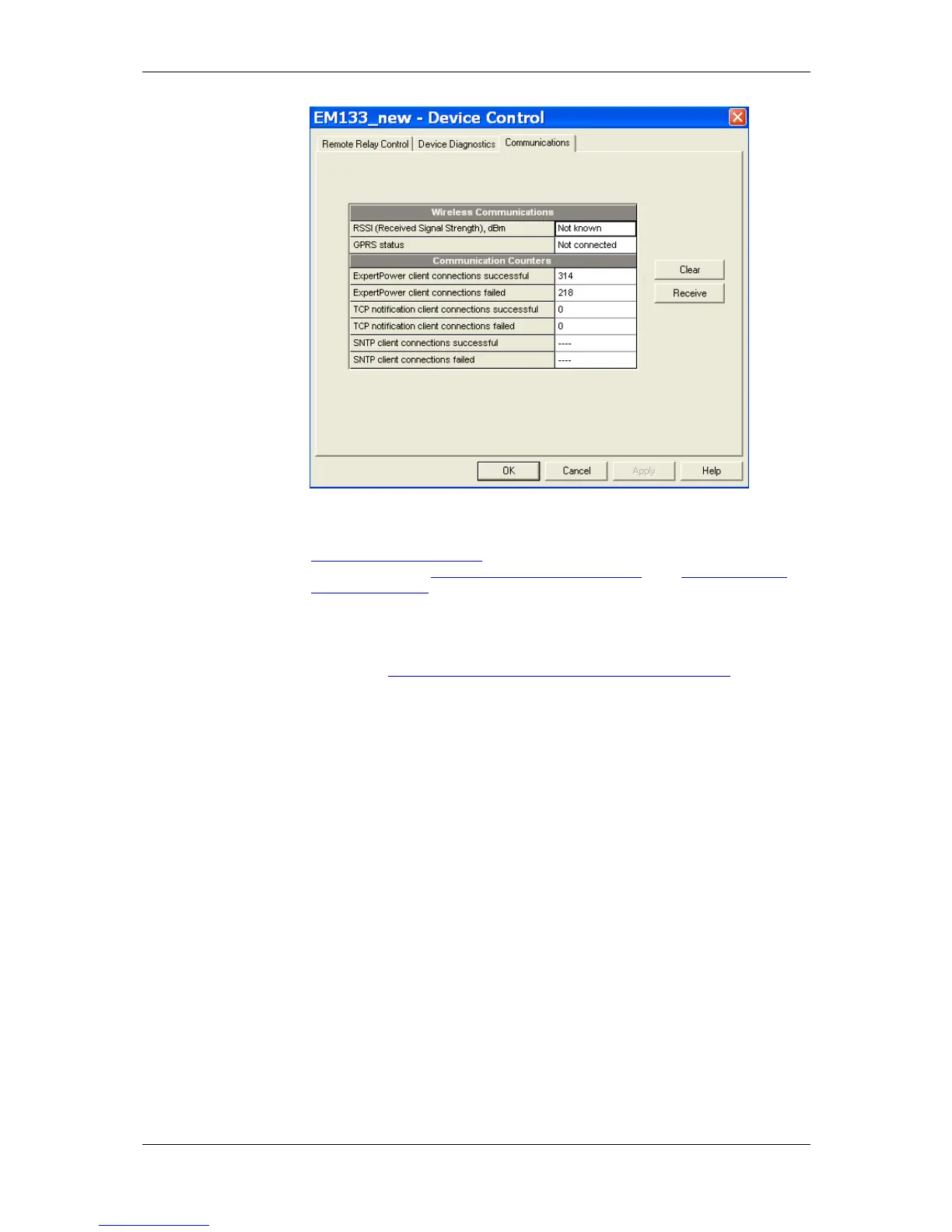

Figure 6-5: Device Control Dialog Box – Communications Tab
This window indicates the present GPRS communication status (see
Setting Up GPRS Network in Chapter 5) and connection statistics of the
TCP clients (see Setting Up eXpertPower Client and Setting Up TCP
Notification Client in Chapter 5).
To clear the communication counters, click on Clear.
You can also clear the communications counters via the PAS Reset
dialog (see Resetting Accumulators, Maximum Values and Files).
6.5 Remote Relay Control
You can use PAS to send a remote command to your meter to operate any
relay output or release a latched relay, except of the relays linked to an
internal pulse source. These relays are blocked for operating from outside
of the meter.
To access the relay control dialog, ensure that the On-line button on the
PAS toolbar is checked, select Device Control from the Monitor menu,
and then click on the Remote Relay Control tab.
