Chapter 5 Configuring the EM13X Series General Meter Setup
80 EM13x Series SMART MULTIFUNCTION METER

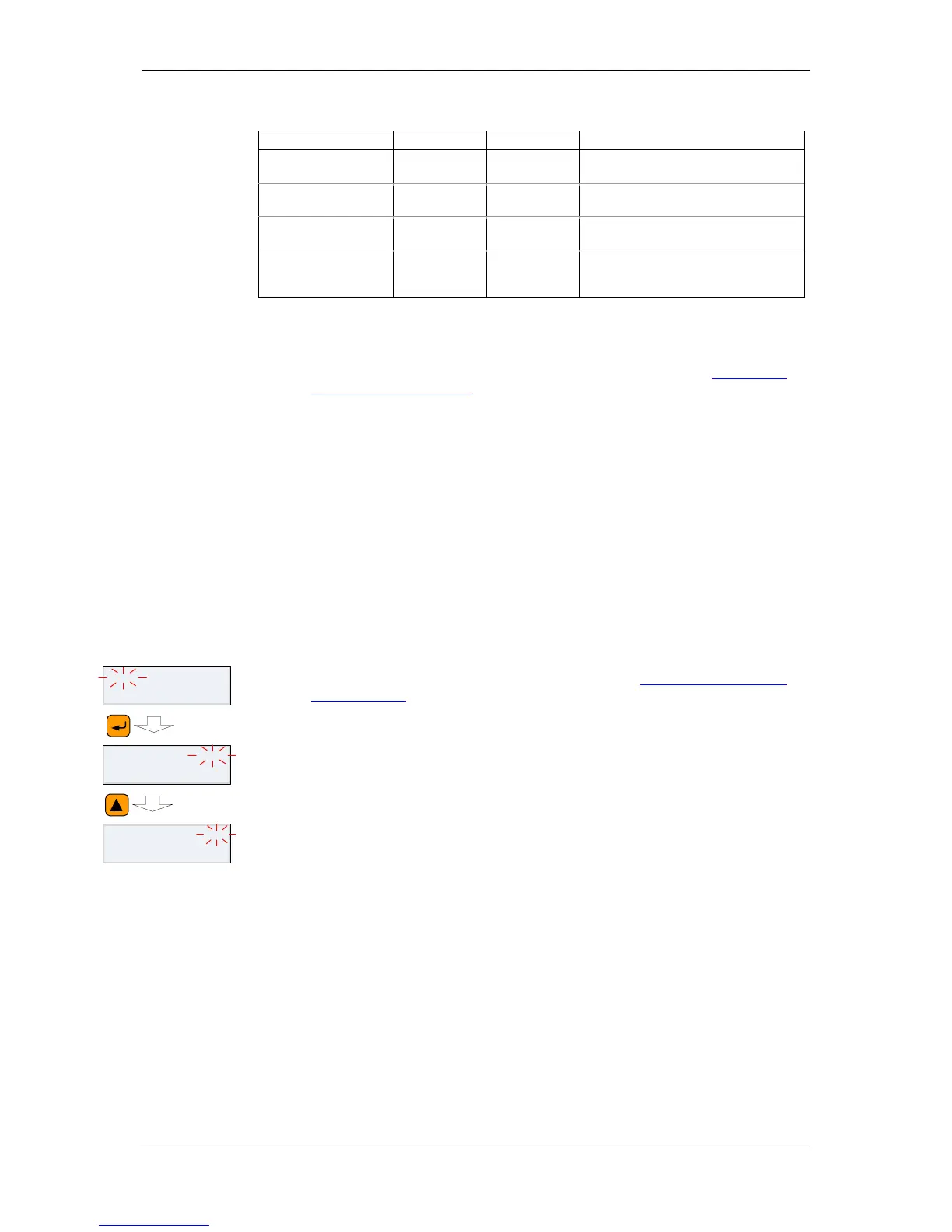

Table 7: TCP Notification Client Setup Options
Parameter
Options
Default
Description
Client Enabled
NO, YES
NO
Enables operations of the
notification client
Server IP Address
192.168.0.3
The IP address of the notification
server
ServerPort
0-65535
502
The TCP service port of the
notification server
Message Exchange
Address
0-65535
1000
The start address of a block
of 16 Modbus registers for receiving
notification messages
Connections with a remote server are triggered via programmable
setpoints. To send event notifications to a server, configure a setpoint
to respond to desired triggers or to periodic time events and put the
"Notification" action to the setpoint action list (see Configuring
Alarm/Control Setpoints).
See the PM130 PLUS Modbus Reference guide for more information on
operation of the notification client and the notification message
structure.
5.2 General Meter Setup
Basic Meter Setup
This section describes how to configure the EM13X Series for your
particular environment and application.
Before operating your meter, provide the device with basic information
about your electrical network.
Using the Front Display
Select the Basic entry from the main menu. See Viewing and Changing
Setup Options in Chapter 3 for information on configuring parameters
via the front display.
See the table below for the Basic Setup options.
Basic Exit
LONG PRESS
Basic Conf
4Ln3
SCROLL until
CT menu
Basic CT
50
