Chapter 2
Installation
Mechanical Installat
ion
EM13x Series SMART MULTIFUNCTION METER
23
D
I
N
R
a
i
l
M
o
u
n
t
i
n
g

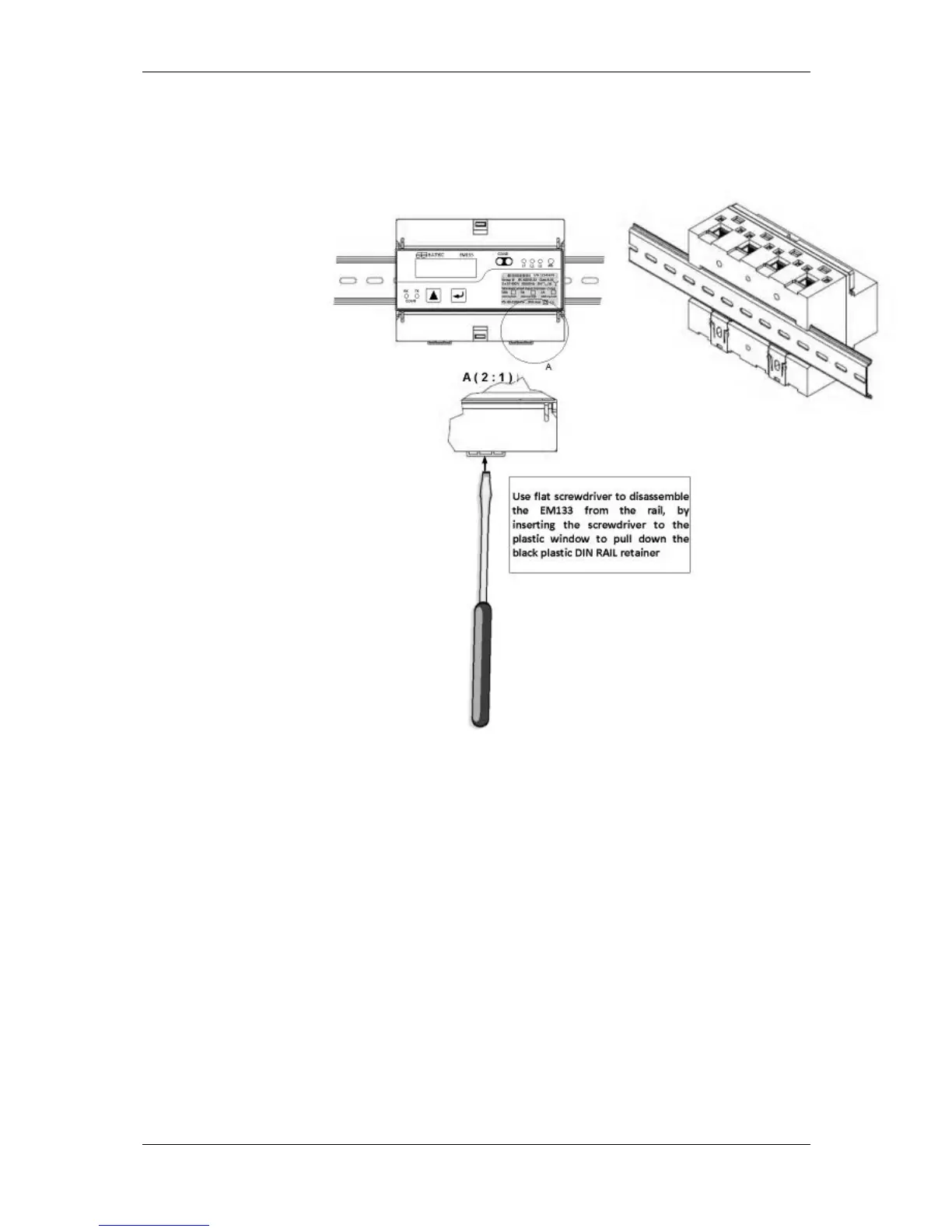

The
EM13X
Series
can
be
mounted
o
n
a
st
andard
35-mm
DIN
rail
as
shown in figure 2-3
F
i
g
u
r
e
2
-
3
.
E
M
1
3
X
S
e
r
i
e
s
D
I
N
R
a
i
l
M
o
u
n
t
i
n
g
22
24
Table of Contents
Limited Warranty
2
Table of Contents
8
Chapter 1 General Information
11
Features
13
Available Options
14
Digital I/O
15
Analog Output
15
Additional Communication Port- COM2
15
Customized Options
16
Device Resolution
16
Display Options
16
Measured Parameters
17
Labelling
19
Chapter 2 Installation
20
Site Requirements
20
Package Contents
20
Mechanical Installation
20
Wall Mounting
22
DIN Rail Mounting
23
Add-On Module Mounting
24
Electrical Installation
25
Connecting the Wires
25
Typical Installation
26
Terminals
31
Power Source Connection
32
Voltage Input Connection
34
Current Input Connection
35
Wiring Diagrams
36
Battery Replacement
43
I/O Connections
44
2DI/1RO Standard
44
4DI/2RO Module
45
DI Module
46
12DI/4RO Module
46
4AO Module - Analog Outputs
47
Communications Connections
49
Connection
50
ETH Module - COM2 Ethernet Connection
51
PRO Module - COM2 PROFIBUS Connection
52
Canopen Module - COM2 Canopen Connection
53
RS-232/422-485 Module - COM2 Connection
53
Connecting a GSM/GPRS/3G Module
54
Connecting an RF Module
55
Chapter 3 Using Front Display
56
Energy Pulse LED
56
Comport Activity Leds
56
VOLTAGES Leds
56
Navigation Buttons
56
Display Operations
57
Navigation Buttons
57
Navigating in Data Display Mode
58
Display Features
58
Measurement Units
59
Data Displays
59
TEST Mode Data Display
59
Billing Period Energy Data Displays
59
Tou/Maximum Demand Power Data Display
61
Instrumentation Measurement Maximum Demand Data Display
63
Instrumentation Measurement
64
Status Inputs and Outputs
66
Device Info Display
67
Programming Mode
69
Navigation Buttons
69
Entering Numeric Values
69
Password Security
69
Setup Menus and Access Rights
69
Viewing and Changing Setup Options
71
Chapter 4 Using PAS Software
72
Installing PAS
72
Chapter 5 Configuring the EM13X Series
74
Configuring Communications
74
Setting up Serial Communication Ports
74
Setting up the Ethernet
76
Setting up GPRS Network
77
Setting up Expertpower Client
78
Setting up TCP Notification Client
79
General Meter Setup
80
Basic Meter Setup
80
Device Options
83
Configuring Digital Inputs
84
Configuring Relay Outputs
86
Configuring Analog Outputs
89
Configuring Counters
91
Configuring Alarm/Control Setpoints
93
Configuring the Display
96
Local Time Settings
98
Configuring Meter Security
100
Configuring Billing/Tou
102
Configuring Billing/Tariff Registers
102
Configuring the Daily Tariff Schedule
104
Configuring the Season Tariff Schedule
105
Configuring Recorders
106
Configuring Meter Memory
106
Configuring the Event Recorder
108
Configuring the Data Recorder
108
Configuring Communication Protocols
111
Configuring Modbus
111
Configuring DNP3
112
Chapter 6 Device Control and Upgrading
115
Resetting Accumulators, Maximum Values and Files
115
Updating the Meter Clock
117
Viewing and Clearing Device Diagnostics
118
Viewing Communication Status and Statistics
118
Remote Relay Control
119
Upgrading Device Firmware
120
Chapter 7 Monitoring Meters
122
Viewing Real-Time Data
122
Viewing Real-Time Min/Max Log
125
Viewing Real-Time Waveforms
125
Viewing Real-Time Harmonic Spectrum
127
Chapter 8 Retrieving and Storing Files
131
Uploading Files on Demand
131
Using the Upload Scheduler
132
Viewing Files On-Line
134
Exporting Files
134
Exporting Files in COMTRADE and PQDIF Formats
134
Exporting Files in Excel Format
135
Archiving Files
136
Chapter 9 Viewing Files
137
Operations with Files
137
Viewing Options
137
Customizing Views
137
Working with Tables
138
Working with Graphic Windows
138
Viewing the Event Log
140
Viewing the Data Log
141
Appendix A Technical Specifications
143
Appendix B Standards Compliance
149
Appendix C Analog Output Parameters
152
Appendix D Setpoint Triggers and Actions
154
Appendix E Parameters for Data Monitoring and Logging
157
Appendix F Billing/Tou Profile Log File
166
Appendix G Data Scales
168
Appendix H Device Diagnostic Codes
169
