Chapter 2 Installation Communications Connections
EM13x Series SMART MULTIFUNCTION METER 51
ETH module – COM2 Ethernet Connection

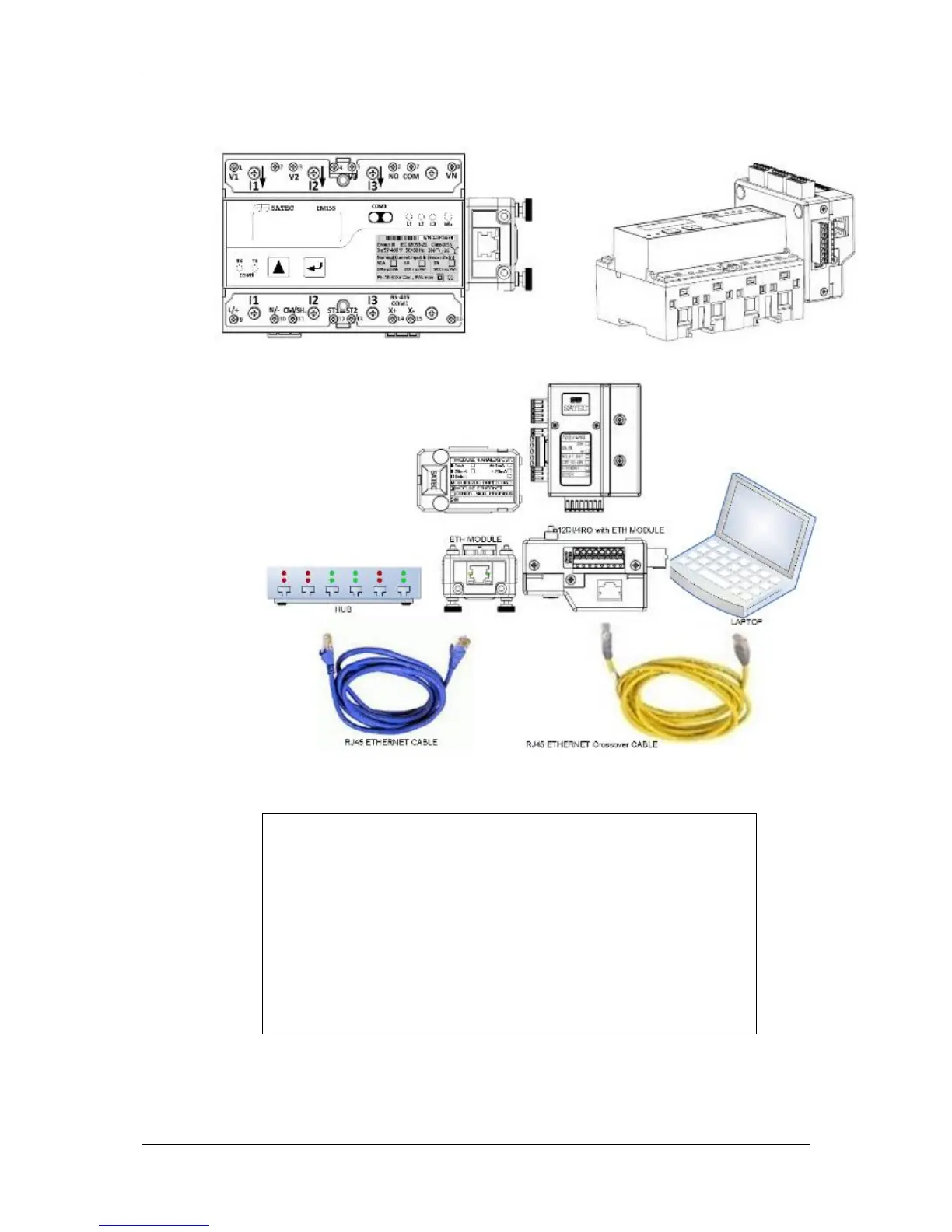

Figure 2-20 COM2 Ethernet Connection
The ETH module TERMINAL is for use only with equipment
which has no live parts which are ACCESSIBLE
The RATING of the insulation of the external equipment for
use with the ETH module, shall comply according to
Installation Category III for insulation to be suitable for
SINGLE FAULT CONDITION
The external equipment TERMINAL connection type is RJ-45
The type of equipment that might be connected to the
TERMINAL is:
Personal Computer – PC or LAPTOP
10/100Base-T LAN HUB and/or Switch
