SATO HT200e - Names of Individual Parts

SECTION 2: INSTALLATION AND SETUP
SATO HT200e Page 2-3

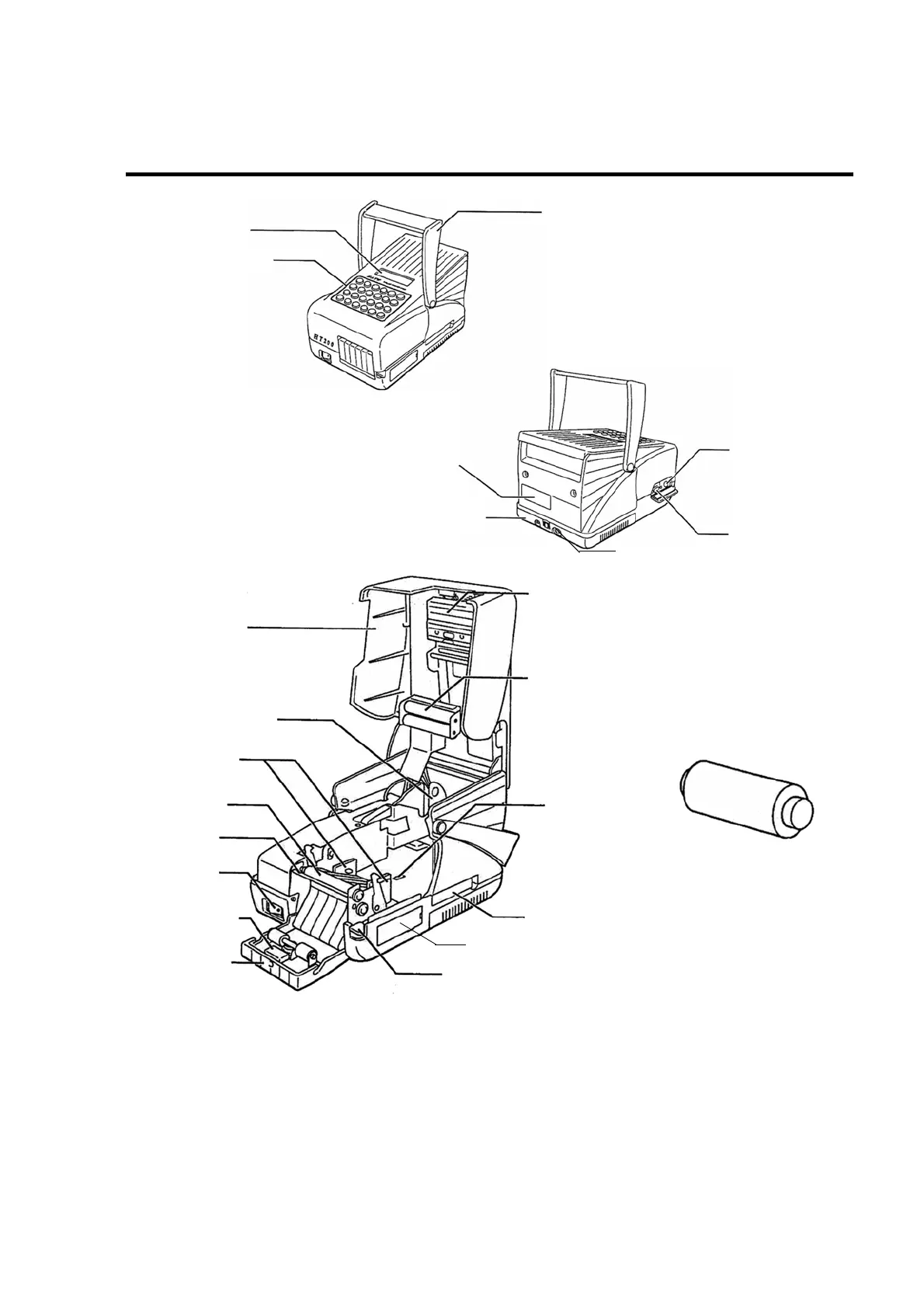

NAMES OF INDIVIDUAL PARTS
Handle
Display
Operation panel
RS-232C
connector
*Manufacturer
Use Only
Scanner
connector
Outlet
Power supply or
battery pack
P
ower ca
bl
e
connector
Top cover
Paper bail
Paper holder
Paper guide
Platen roller
E
ye mar
k
Sensor
Dispense pin
Power switch
Dispense sensor
M
a
i
ntenance cover
*Manufacturer Use Only
Card slot
Reel holder
Dispense frame
Cover open lever
Thermal
head
