SATO HT200e - Label Sensors

SECTION 2: INSTALLATION AND SETUP
SATO HT200e Page 2-13

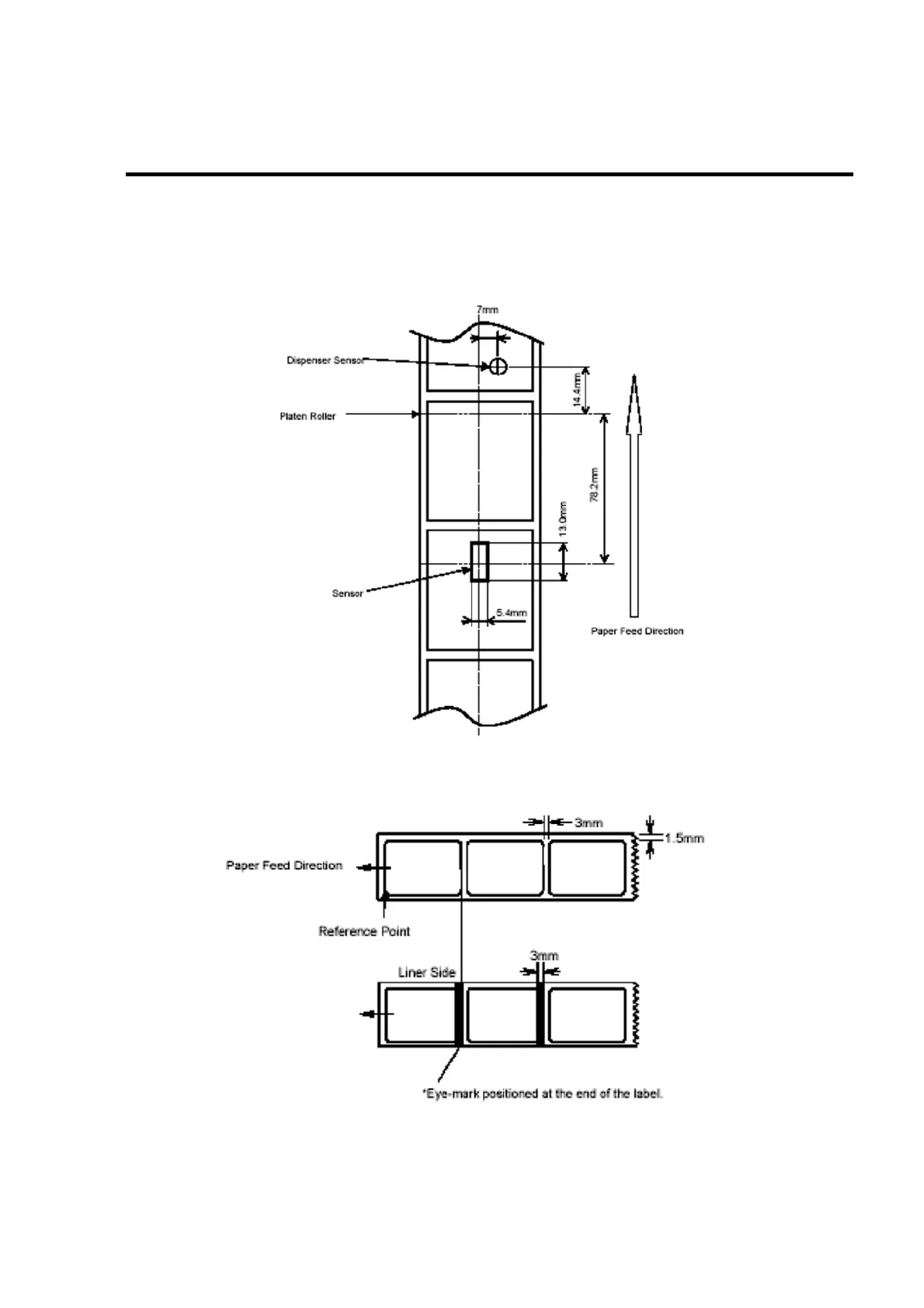

LABEL SENSORS
The HT200e labels are center justified and the label pitch can be sensed using a
black eye mark located on the backside of the label (or label liner). A dispenser
sensor detect when a label is in the dispenser. The printer will not print another label if
a peeled label has not been removed.
