SBM SB-9 - Page 32

CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 32 -

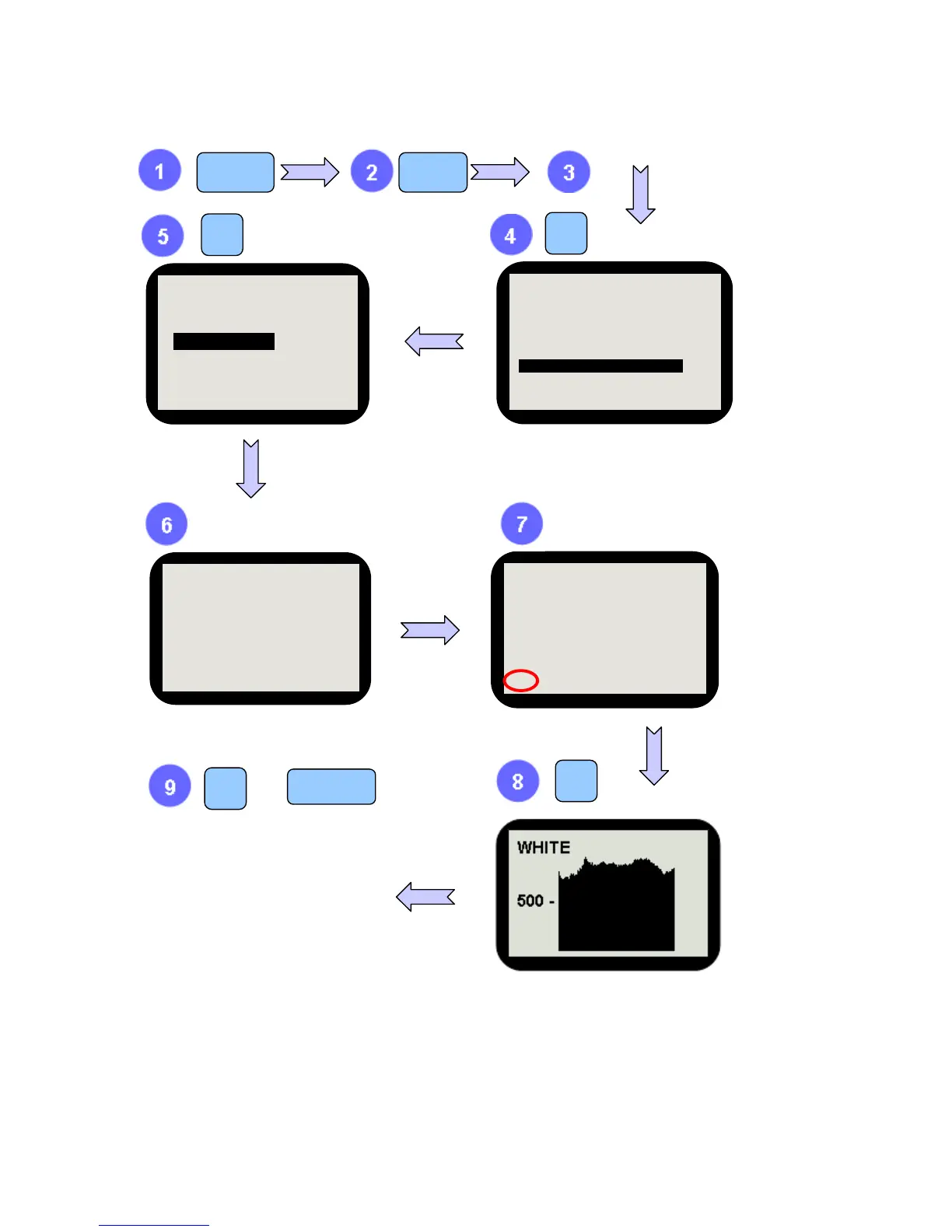

Please wait approximately 5
seconds.
After checking shading result,
press ‘▼’ button.
If you want to move previous
Menu, press ‘9’.
9 MENU
or
Check if ‘OK’ is displayed.
MODE
CODE [*****]
6
3
9 MENU
SERVICE MENU1
1. ERROR STOP CTRL.
2 .SENSOR LEVEL
3. SYSTEM REPORT
4. SET A/S CALL No.
5. SET MACHINE S/N
6. SHADING_______________
7. SENSOR SELECT
SHADING
1. UV SHADING
2. MR SHADING
3. CIS SHADING
4. IR SHADING
CIS SHADING
MIN MAX AVG UNI
B 0.00 0.71 0.00 –
W 0.78 1.11 0.98 87%
OnTime1 :
R=80 / G=111 / B=83
OnTime2 :
R=42 / G=57 / B=43
OK
CIS SHADING
WAIT . . ABOUT 5 SEC
▼
▼
