SBM SB-9 - Cover Top

CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 59 -

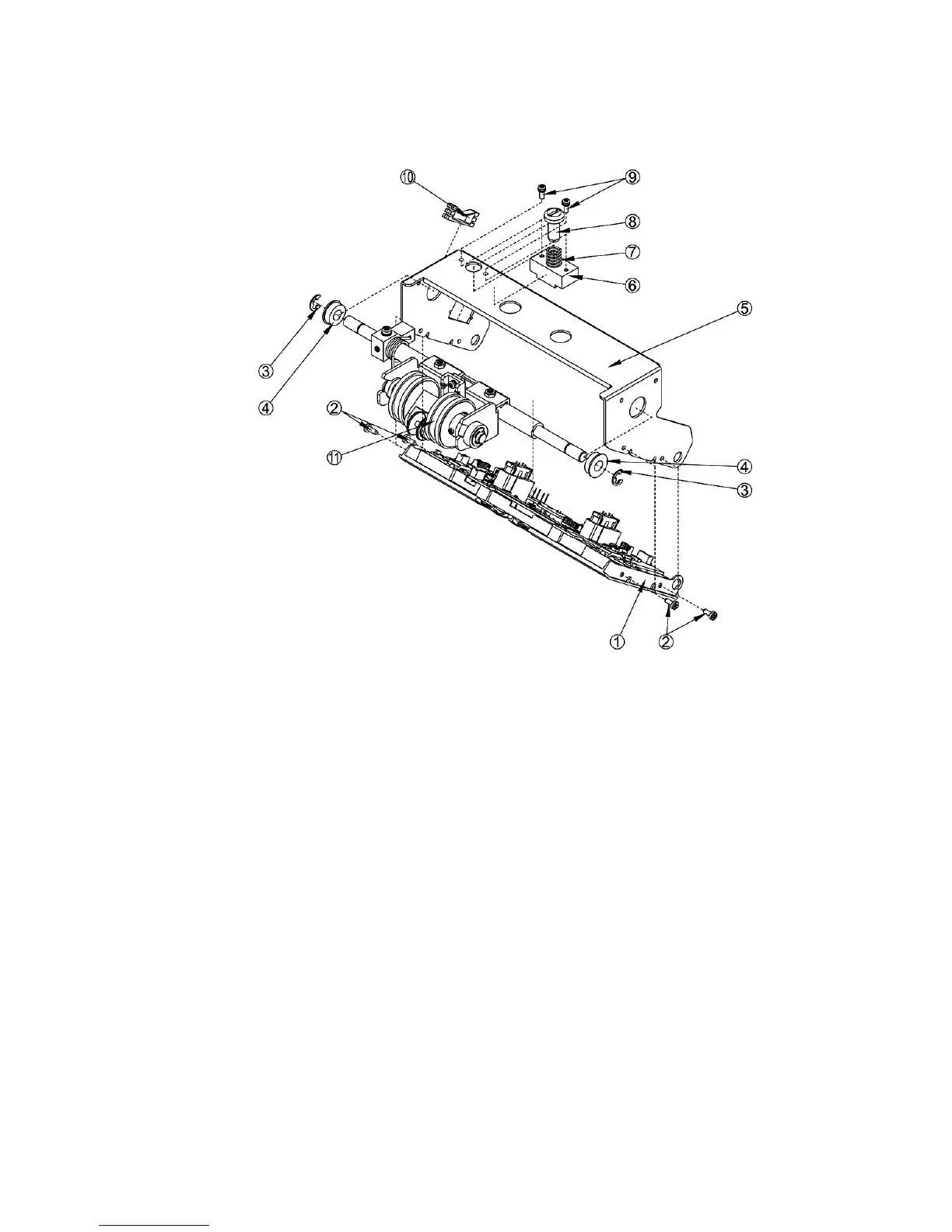

13-13. Cover Top
1 ASS'Y_CASE_DETECTOR
2 SCREW_T/P_PH_T2_Ø3X8_Fe_Zy
3 E_RING_Ø5(5x11x0.6)_Fe_ZB
4 BUSH _HINGE
5 BKT_COVER_TOP
6 ARM_ADJUST_UPPER
7 COIL_SPRING_ADJUST
8 SPECIAL_SCREW_ADUSJT
9 SCREW_M/C_PH/SWW_M3X8_Fe_Zy
10
COVER_SADDLE_DS-2
11
ASS'Y_BKT_SEPARATOR_P
