CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 33 -
9-4. IR SHADING

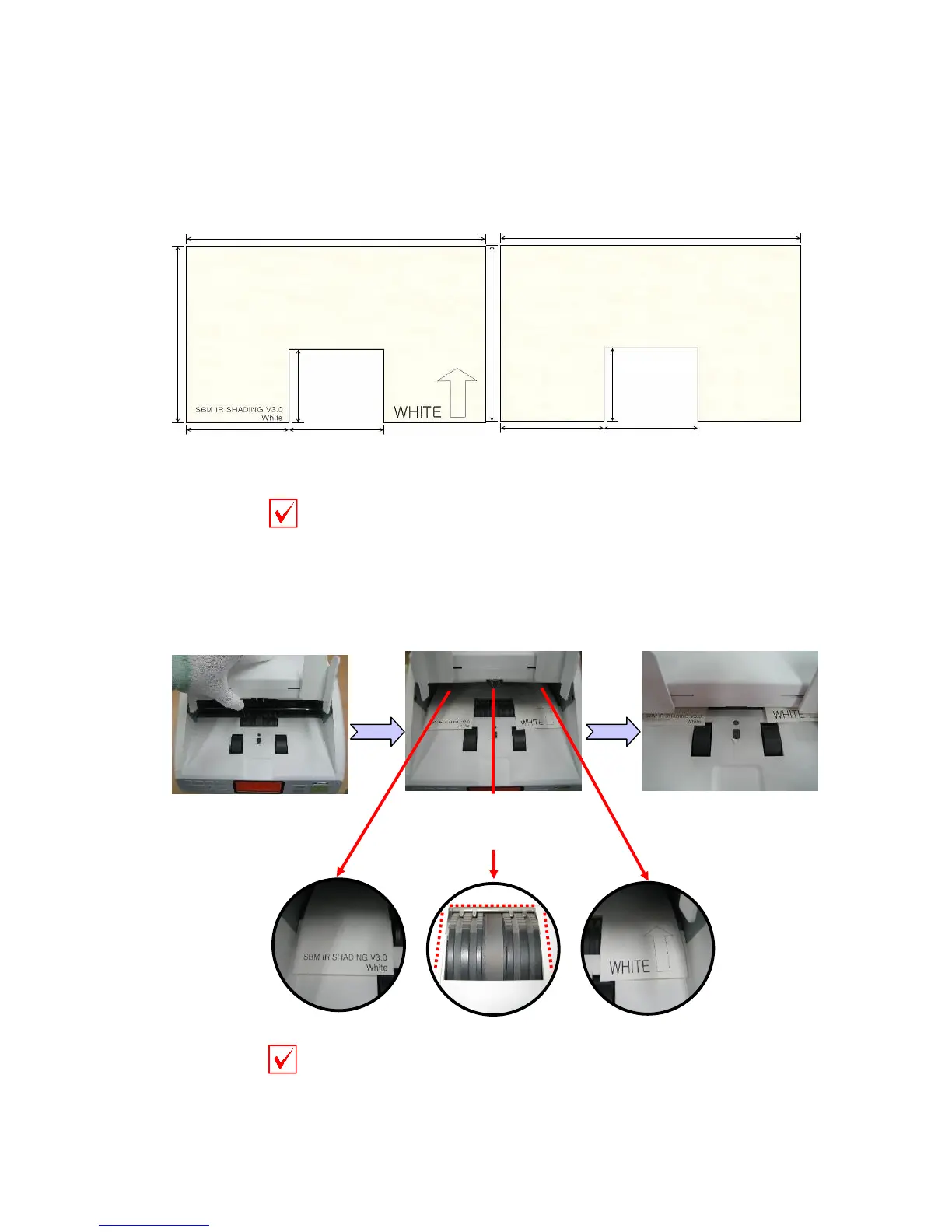

<IR SHADING SHEET (WHITE): SBM IR SHADING V3.0 White>
Prepare to have IR SHADING WHITE
After prepare IR SHADING, refer to the below and have IR shading
Open Front Cover and
brush the dust.
Place IR SHADING SHEET
in the middle of Hopper
like the picture.
Close Front Cover
145 mm
202 mm
62 mm
70 mm
This side faces upward This side faces downward
Shading sheet provided from SBM should be used
