CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 41 -

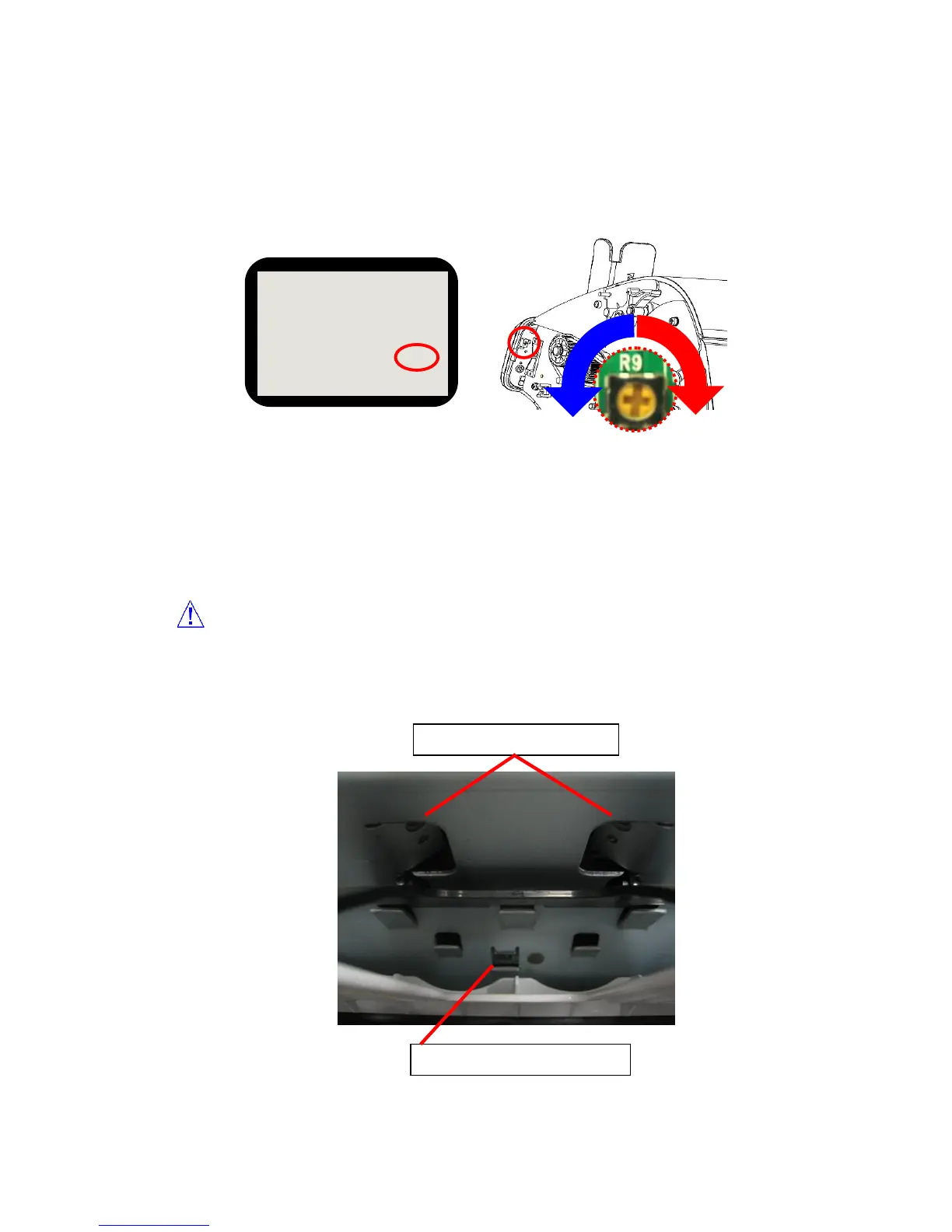

10-6. Reject Pocket Sensor Level
10-6-1. Reject Sensor
Step 4. Adjust R9 (Variable Resistor) so that DIFFERENCE can be from 190 to 210.
HOPPER ON : 213
HOPPER OFF. : 13
DIFFERENCE .: 200
R9
High
Low
If LED lights even though there are no notes on the REJECT POCKET or if LED does not light
even though there are notes on the REJECT POCKET, adjust sensitivity of REJECT
SENSOR.
Reject F (Front Sensor)
Reject R (Rear Sensor)
