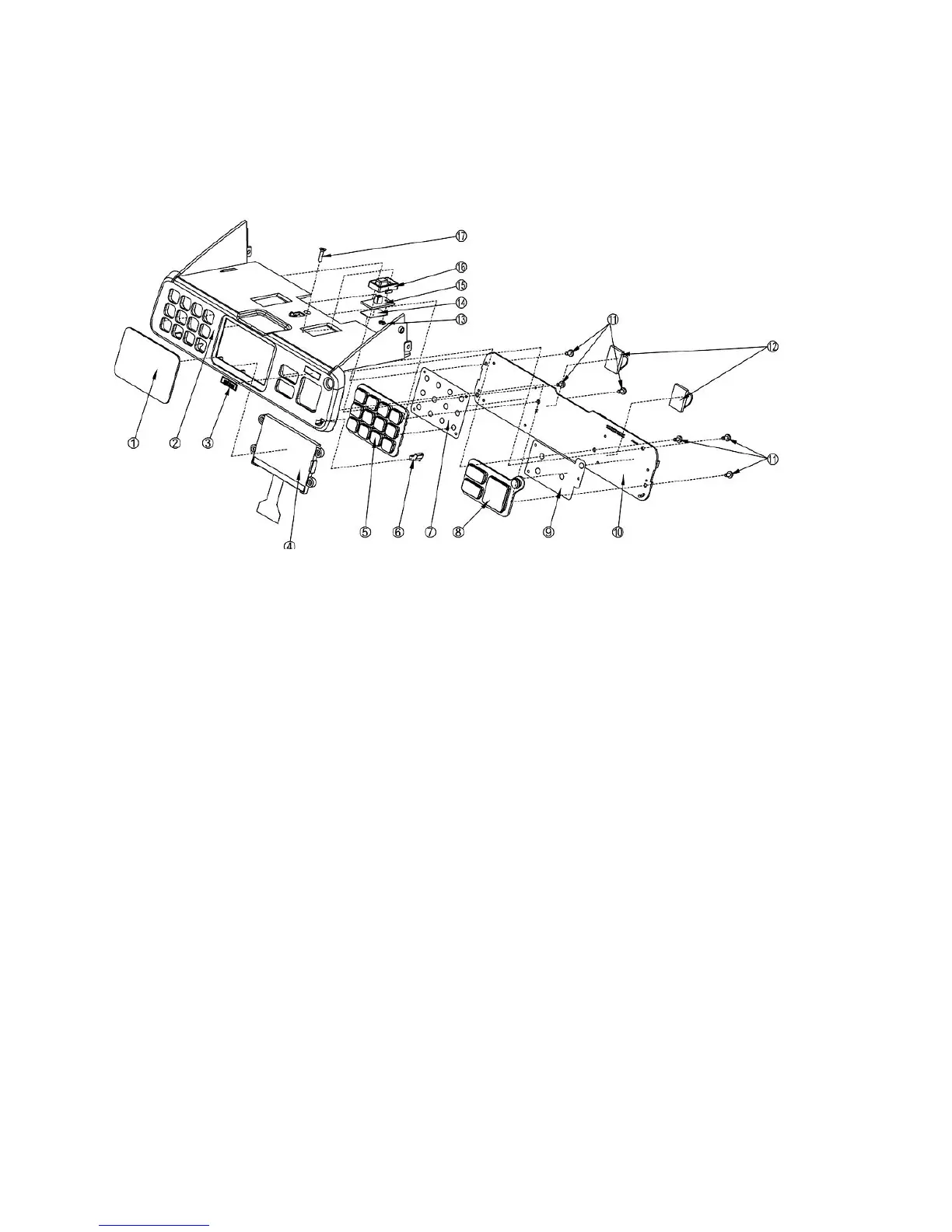

13-8. Ass'y OP PANEL
1 WINDOW_LCD_P (W/Tape)
2 COVER_OP_PANEL
3 ELECTRO_FORMING_BADGE
4 LCD(ODT_TECH 128X80) (W/ 2P Harness)
5 BUTTON_NUMERIC_P
6 LENS_LED
7 DOME_SHEET_NUMERIC
8 BUTTON_FUNCTION_P
9 DOME_SHEET_FUNCTION
10
P-OPE
11
SCREW_T/P_PH_T2_Ø3X6_Fe_Zy
12
QUICK_CLAMP_DQC_106
13
HEX_NUT_M3X0.5_Fe_Zy
14
PBA_HOPPER_1 (W/ SHP-22 Harness)
15
WINDOW_HOPPER
16
SCREW_M/C_FH_M3X12_Fe_Ni
17
SCREW_T/P_PH_T2_Ø3X8_Fe_Zy
