CH LEFT : 550
CH RIGHT : 550
10-7. Double Sensor Level
DOUBLE LOGIC TEST
With this mode, you can check the double level.
Before you select
this mode, you need to check bellows.
Clean the all notes in the path and close all doors.
Please run the motor more than 5 sec.
You need to set the double level to ‘550’ (± 50) using variable resister ‘R123’ and ‘R128’ located in PBA Main.
(Please refer to below fig.)
Step 3. Adjustment of ‘Reject F’

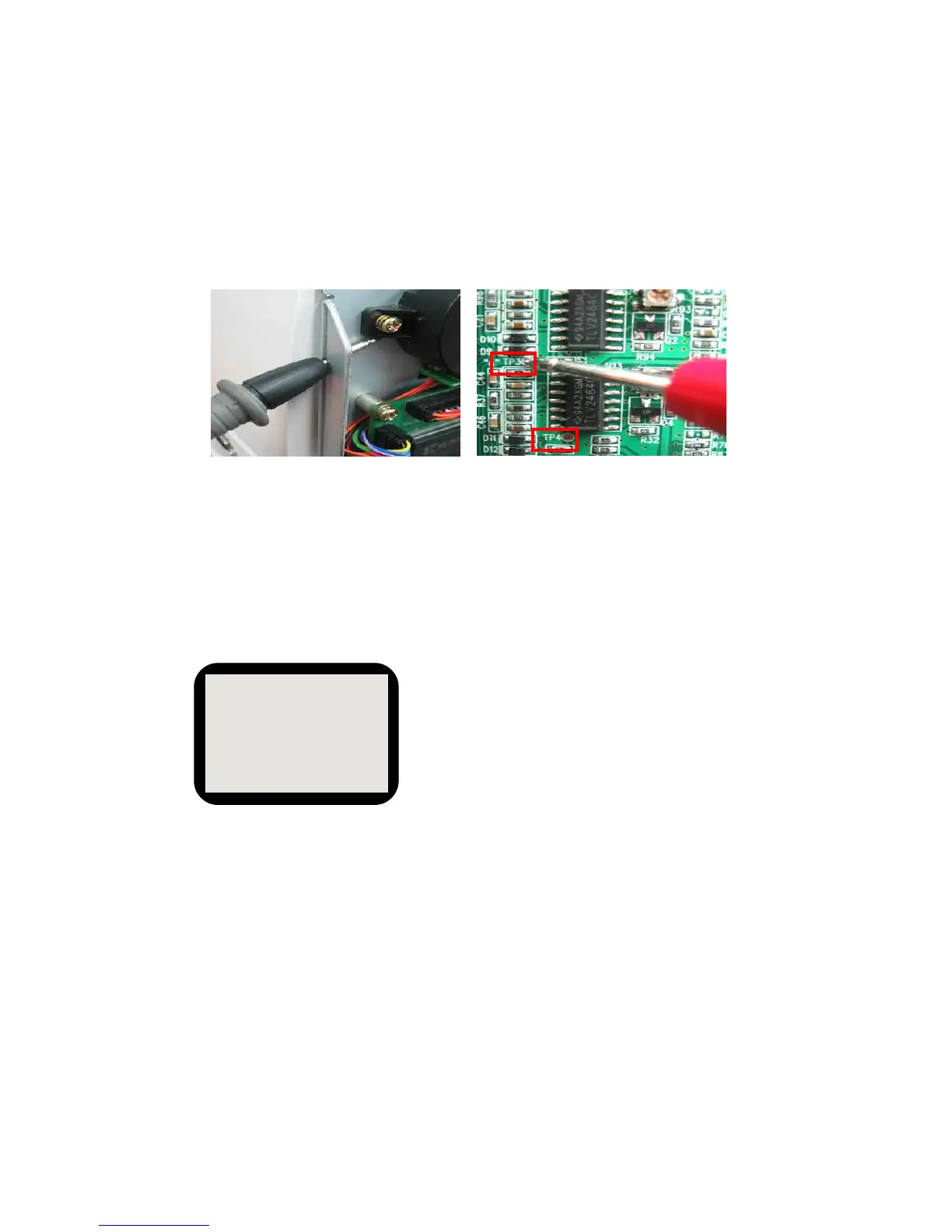

Adjust R97 (Variable Register) so that the voltage of TP3 (Test Point 3) can be 3.2V.
Step 4. Adjustment of ‘Reject R’
Adjust R35 (Variable Register) so that the voltage of TP4 (Test Point 4) can be 1.2V.
