-. The gap should not be too wide to get overlapped 2 number of banknote input into it.
-. Adjust gap for tightly go in and easily out.
Check Gap of ADF by using one
note. Check both sides and Gap of
both sides should be equal.
Check Gap of ADF by using 2 pcs
of notes. If 2 pcs of notes are fed,
adjust Gap so only one note can be
fed.

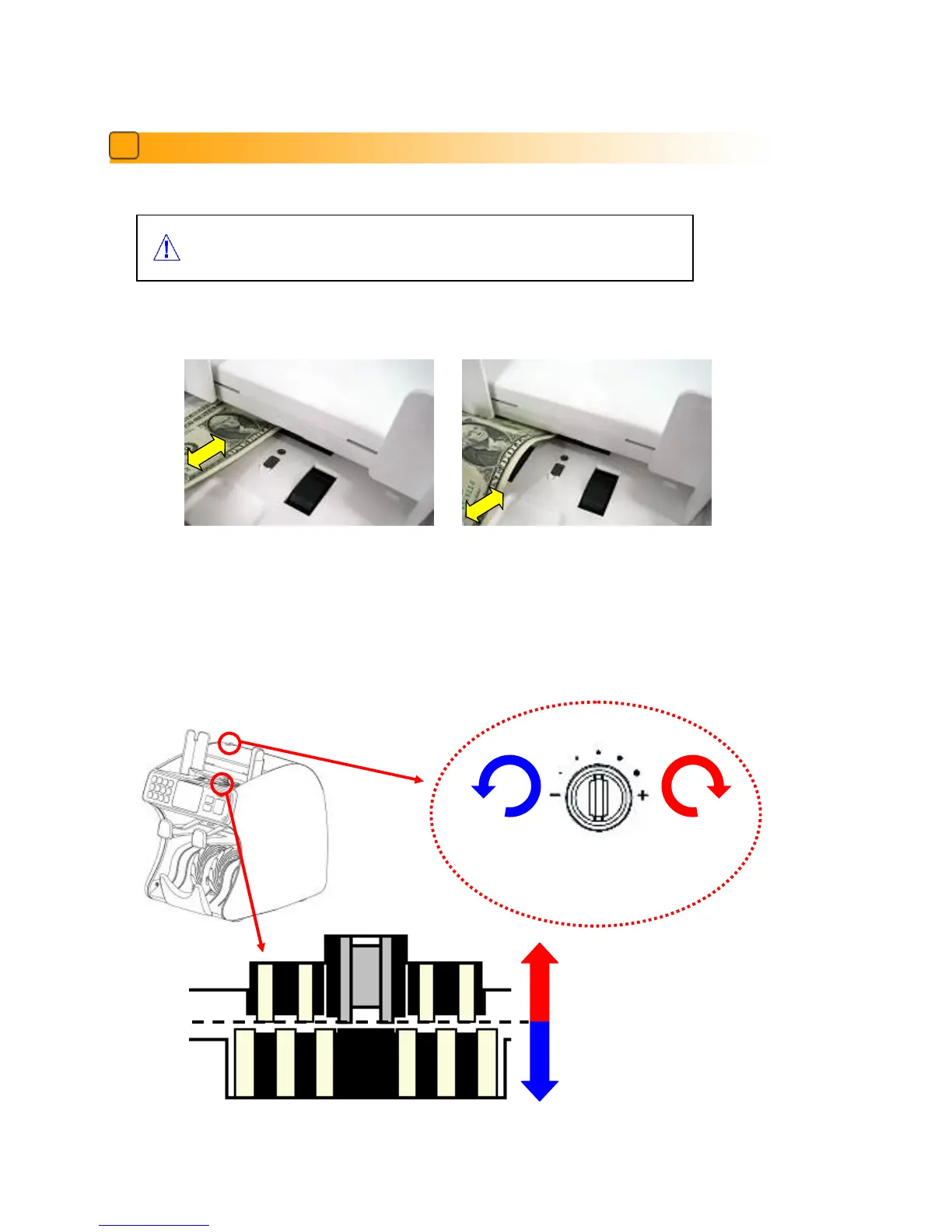

10 Adjustment
10-1. Gap of ADF
If too Wide ‘Double Feeding’ or ‘Over Run’
If too Narrow ‘Miss Feeding’ or ‘Jam0’
Tighten (Narrower)
Loosed (Wider)
Loosed
(Wider)
Tighten
(Narrower)
CAUTION
Turn off the machine before adjustment.
