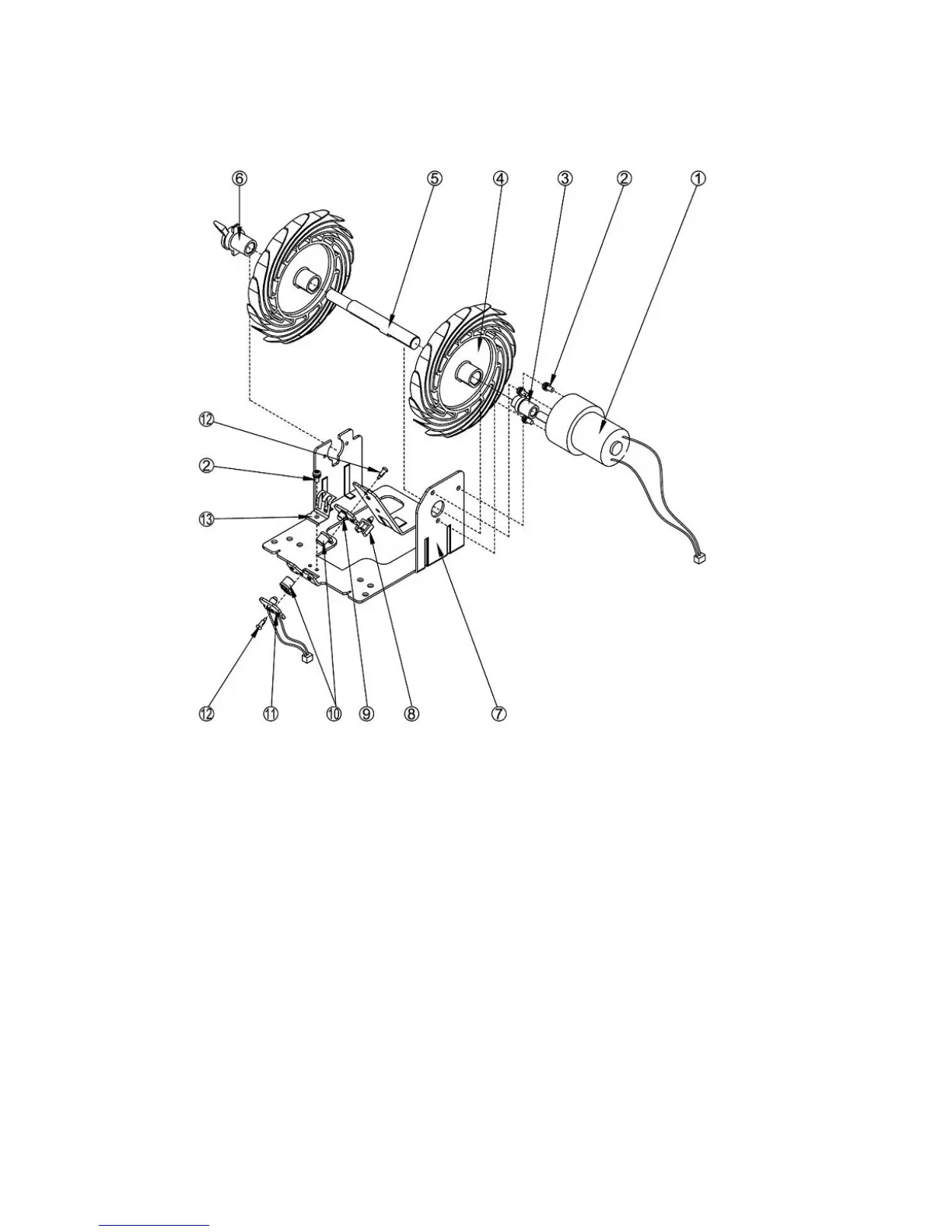

13-12. Bkt Stacker Sensor
1 MOTOR_STACKER (W/ SHP-18 Harness)
2 SCREW_M/C_PH/SWW_M3X6_Fe_Zy
3 BUSH_STACKER_MOTOR_P
4 WING_STACKER_P
5 SHAFT_STACKER_P
6 BUSH_STACKER_WING
7 BKT_STACKER_SENSOR_P
8 WIRE_SADDLE_SMALL
9 P-STACKER_TRN_V1.2 (W/ 2P Harness)
10
CAP_UV
11
P-STACKER_RCV_V1.2 (W/ 2P Harness)
12
SNAP_RIVET_(SR2664B)
13
GROUND_FINGER
