SBM SB-9 - Case Detector with MR

CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 61 -

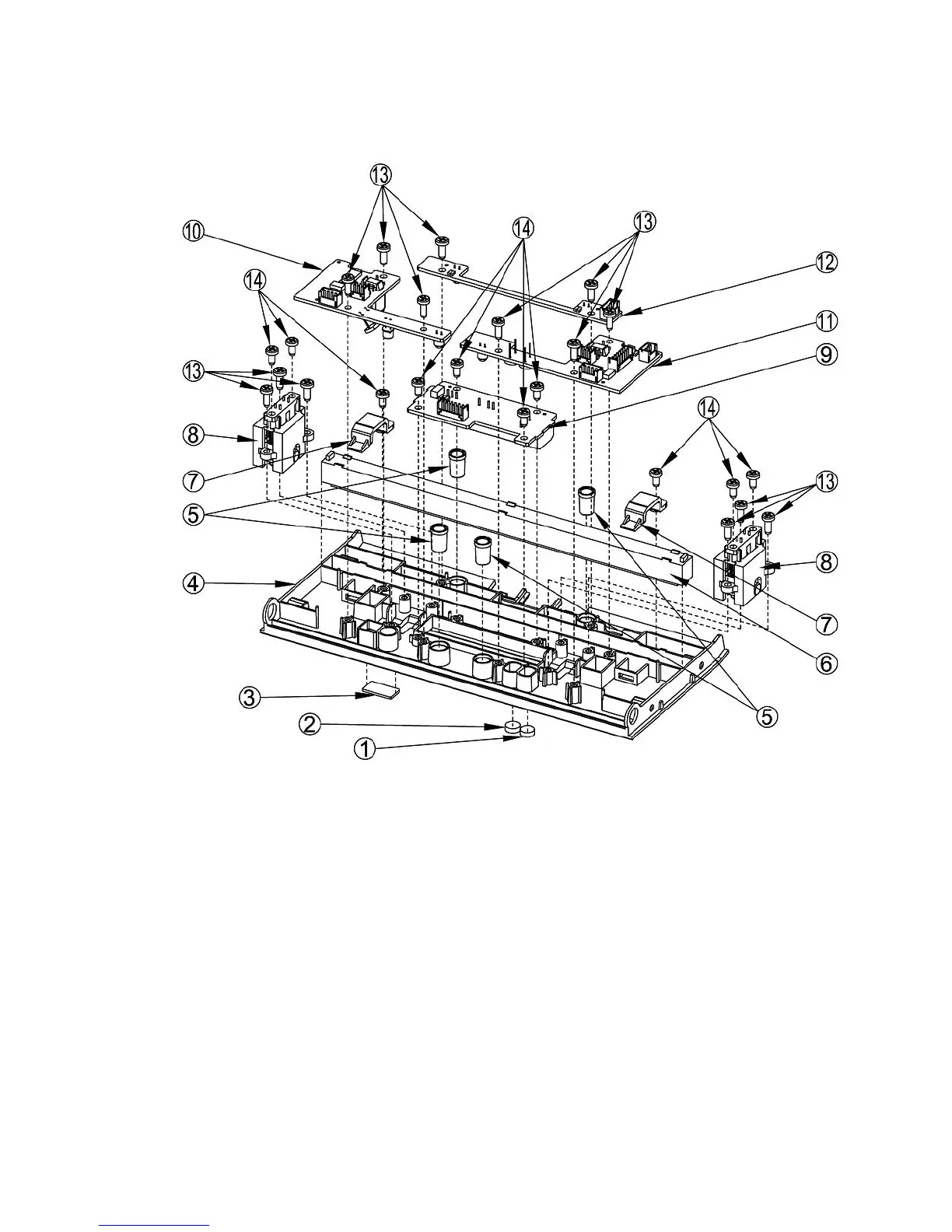

13-15. Case Detector With MR
1 UV_FILTER(N) (420nm, D7*2.5T) 9
MRA
2 SUV_FILTER (375nm, D7*2.5T) 10
MRS_R
3 GLASS_UV_REFLECT 11
MRS_L
4 CASE_DETECTOR_P2 12
RP_RCV
5 CAP_RP 13
SCREW_T/P_PH_T2_Ø3X8_Fe_Zy
6 PBA_IR_TRN_MODULE 14
SCREW_T/P_PH_T2_Ø3X6_Fe_Zy
7 LOCKER_IR_LED
8 MDD (Module Double Detector)
