CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 39 -
10-4. Brightness of LCD (Back Light)

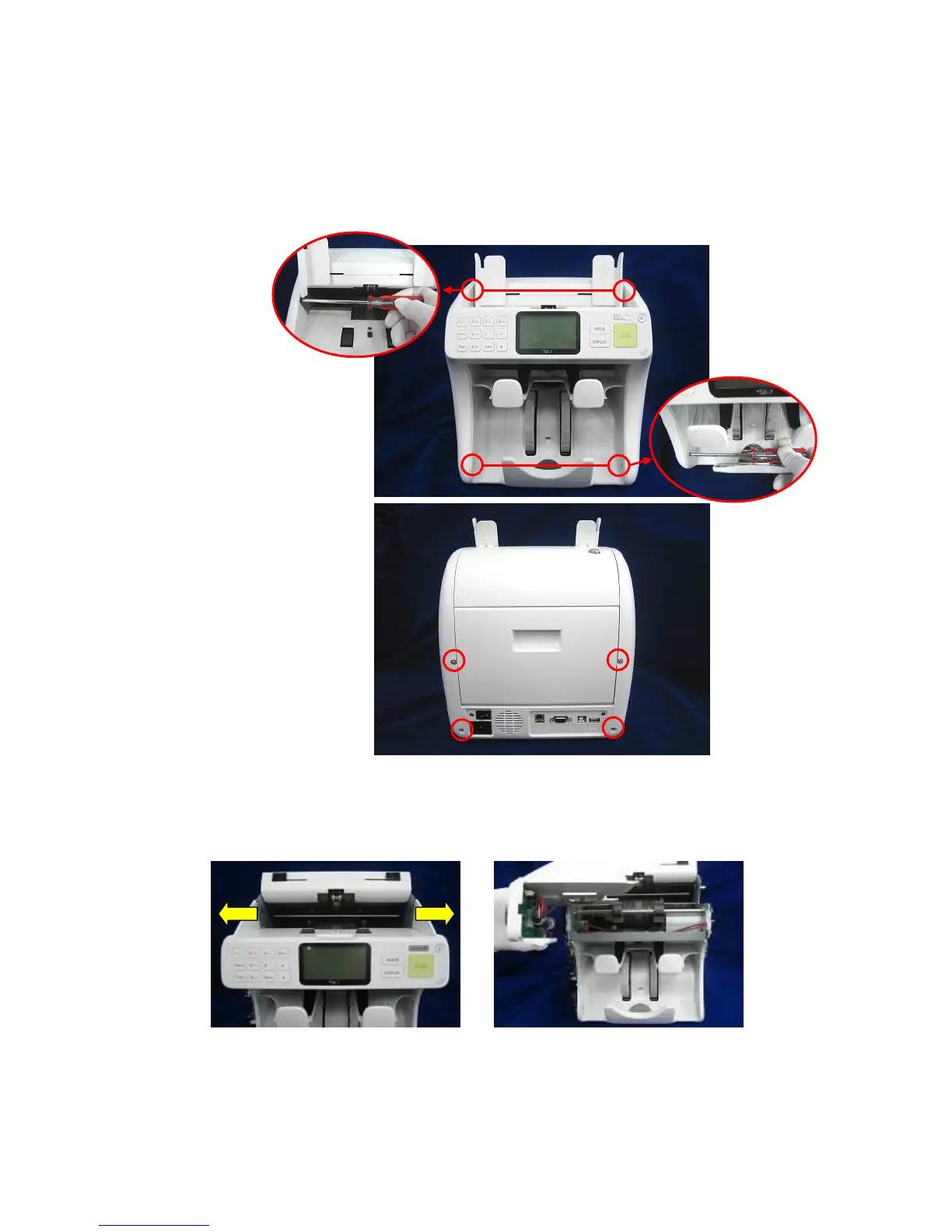

Step 1. . Remove Side Cover.
Step 2. Pull OPE cover slightly to
remove OPE cover as the below
image.
Step 3. Maintain the space as the below image so
that you can adjust it comfortably.
Step 4. Turn on the machine.
Be careful with the operation of motor as Hopper
sensor is working.
