SBM SB-9 - Machine Description and Controls; Components and Ports

CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 9 -
2 Description of the Parts

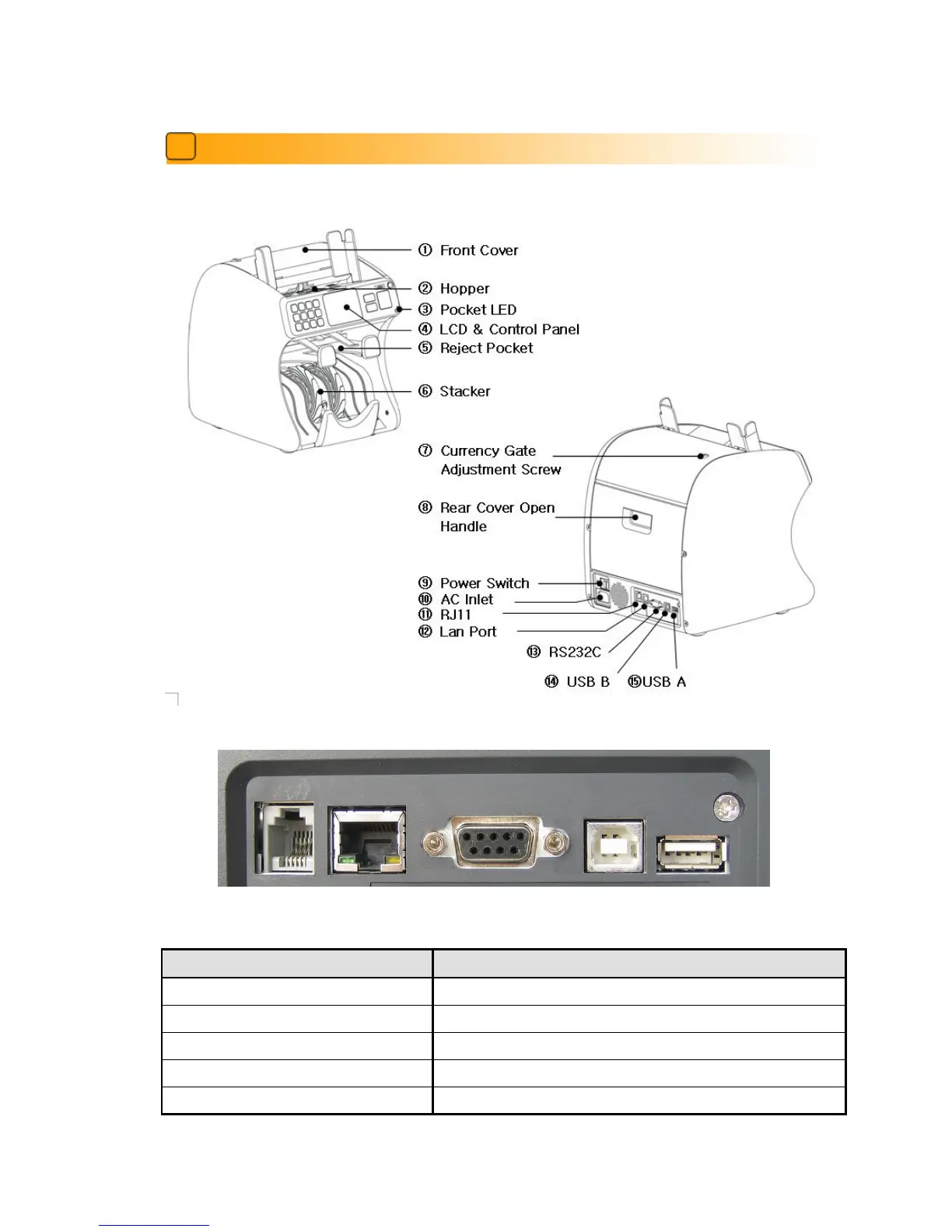

2-1. Out Side
2-2. Interface Port
RS232C LAN RS232C USB USB
(RJ-11) (RJ-45) (9P D-SUB) (Type B) (Type A)
PORT INTERFACE
RS232C (RJ-11) Customer Display
LAN (RJ-45) Network (100M BPS) : Optional
RS232C (9P D-SUB) Printer or PC
USB(Type B) PC
USB(Type A) USB MEMORY (Firmware Upgrade )
