CURRENCY DISCRIMINATION COUNTER SB-9(2000S) SERVICE MANUAL
- 67 -

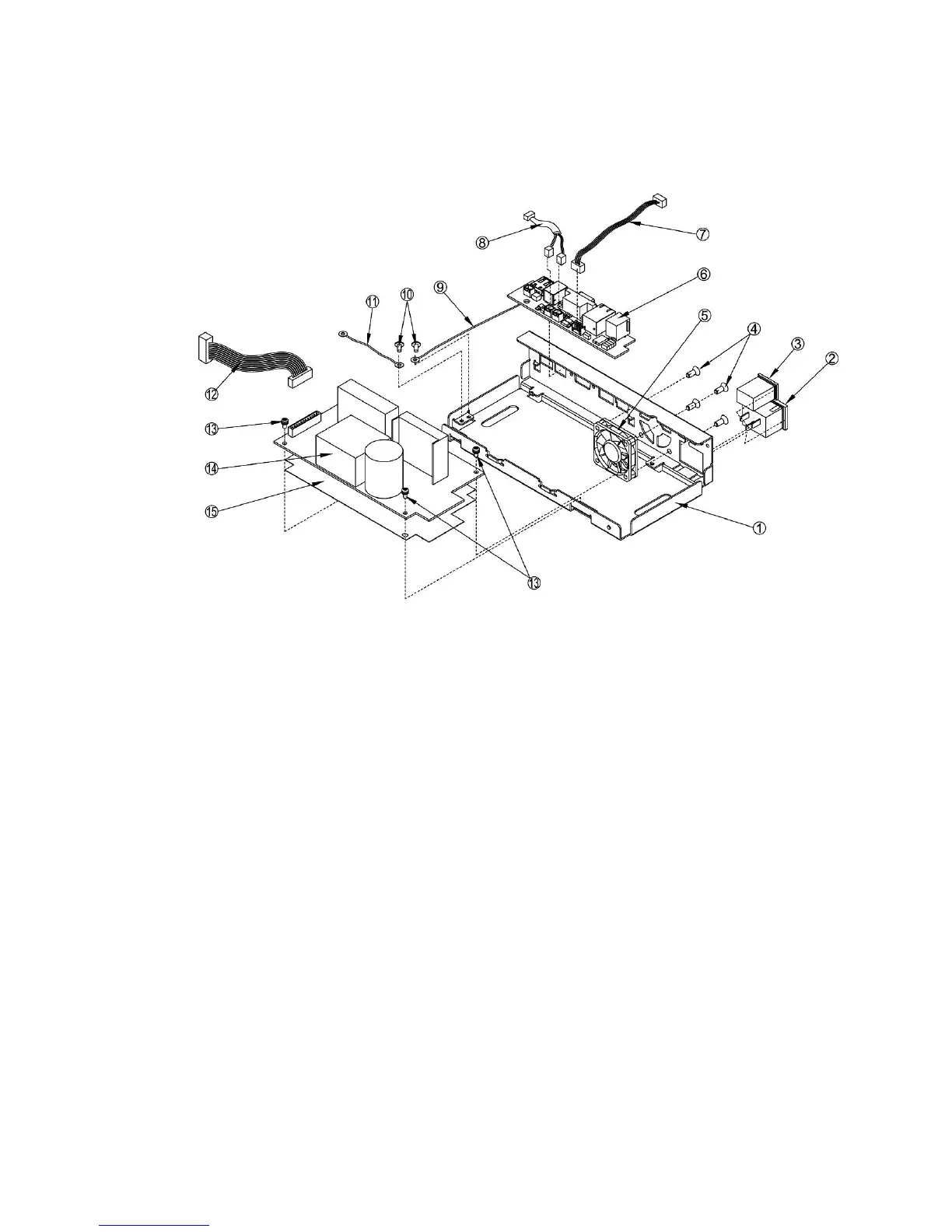

13-21. Bkt SMPS Bottom
1
BKT_SMPS_BOTTOM
2,3
SHP-23 3P (AC INLET)
4
SCREW_T/P_FH_M4x10_Fe_Ni
5
COOLING_PAN_40X40(t=10mm) SHP-24 2P (IF-FAN)
6
SB-9-IF V1.5
7
NHP-02 12P (MAIN - IF)
8
NHP-03 06P (MAIN - IF)
9
SHP-25 (IF-GROUND)
10
SCREW_M/C_PWH_M3X6_Fe_Ni
11
SHP-29 (IF-SASH)
12
SHP-07 12P-10P (SMPS-POWER)
13
SCREW_M/C_PH/SWW_M3X6_Fe_Zy
14
SB-9 SMPS
15
FLIM_SMPS_P
