Scaime eNod4-D ETHERNET - Prevent Electrostatic Discharges; Prevent Electromagnetic disturbances

15
SCAIME Manual : NU-eNod4D-ETH-E-0418_216710-E.docx
4.1 Cabling basic rules
4.1.1 Prevent Electrostatic Discharges
For ESD protection, cabling for the analog load cell must include a ferrite and a silicone protection sleeve, not included
with the transmitter.

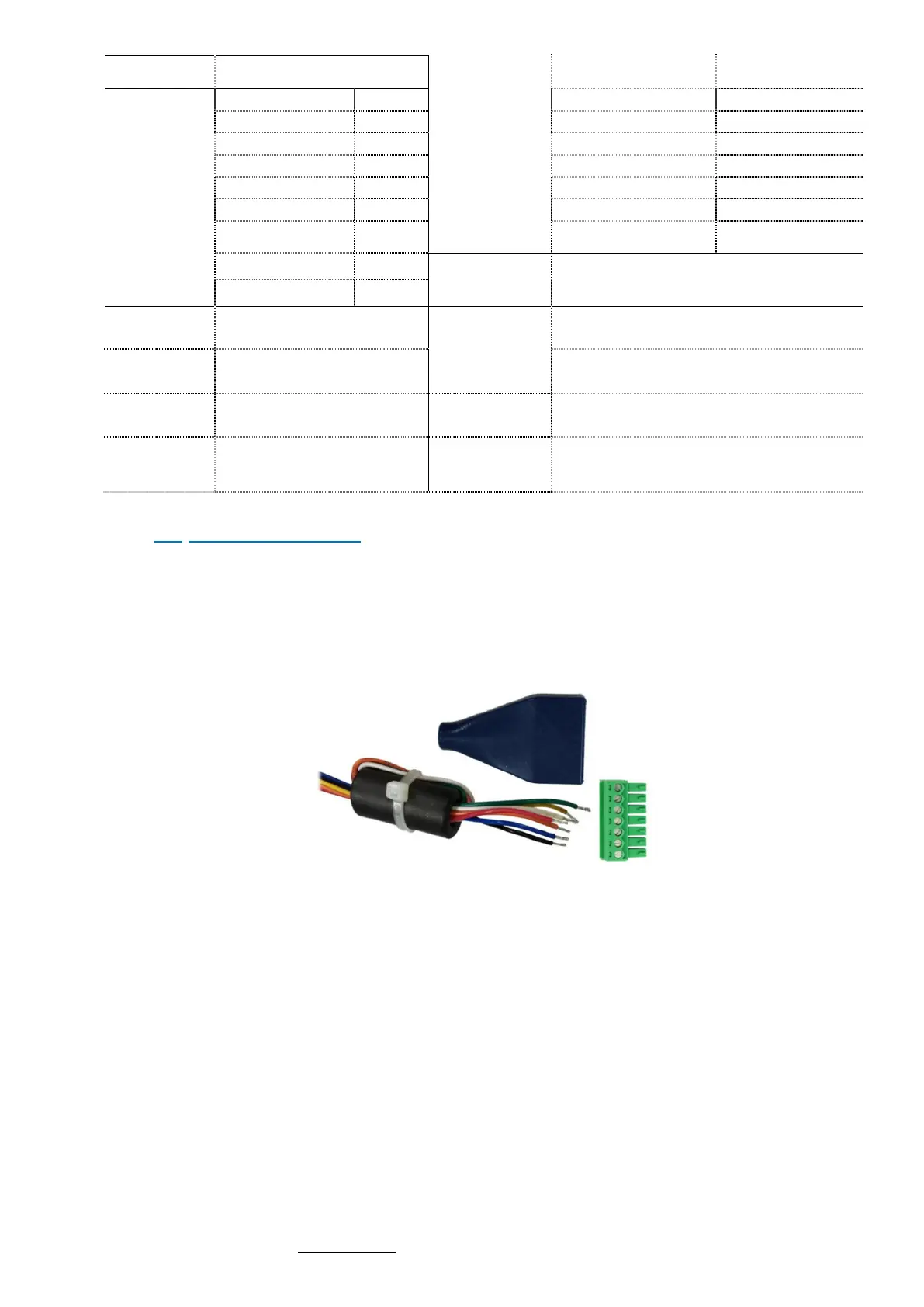

Install the ferrite by passing the analog cell connection through the ferrite and wrapping it around once, as shown on
the following picture:
A4
Port USB
Connexion IO+
IO+ connection
3 IN5-TTL
A5
entrées/sorties
IN / OUT
1 IN1+ 4 V-
2 IN1- 5 GNDA
3 IN2+ 6 IN4+
4 IN2- 7 IN3+
5 OUT
COM
8 Iout
6 OUT1 9 GNDA
7 OUT2 10 Vout
8 OUT3
SW1
Sélecteur Adresse haute (hex)
High Address selector (hex)Low
9 OUT4
SW2
Sélecteur Adresse basse (hex)
Low Address selector (hex)
A7
2 x RJ45
Ethernet
Ethernet ETH1 RJ45 (sortie)
Ethernet ETH1 RJ45 (output)
SW3
Sélecteur Baud rate AUX/USB
Aux/USB Baud rate selector
Ethernet ETH2 RJ45 (entrée)
Ethernet ETH2 RJ45 (input)
SW4
bouton poussoir Reset
reset push button
NS / MS
LED NS: Network Status (Bus Fault Profinet)
LED MS: Module Status (System Fault Profinet)
S1-S2-S3-S4
LED sorties logiques
outputs LED
PWR-USB
LED alimentation & activité USB
power supply & USB activity LED
