11 DOSING BY FILLING OPERATING MODE
The filling operating mode is a way to monitor a dosing cycle of a product by measuring the weight of a receiver
placed on a load cell.
In this operating mode, the dosing process is fully managed by eNod4-D. With its four digital outputs it allows the
monitoring of all steps of the dosing cycle.
Fig. 6 and 7 shown below represent graphically how a filling cycle is working and what is the influence of the variables
involved.
coarse feed
fine feed
cycle in progress
emptying
dosing result available
start cycle
Time
Measure
1
4
3
2
2 5
7
target weight
(target weight – fine feed level)
(target weight – in-flight weight)
min empty weight
max empty weight

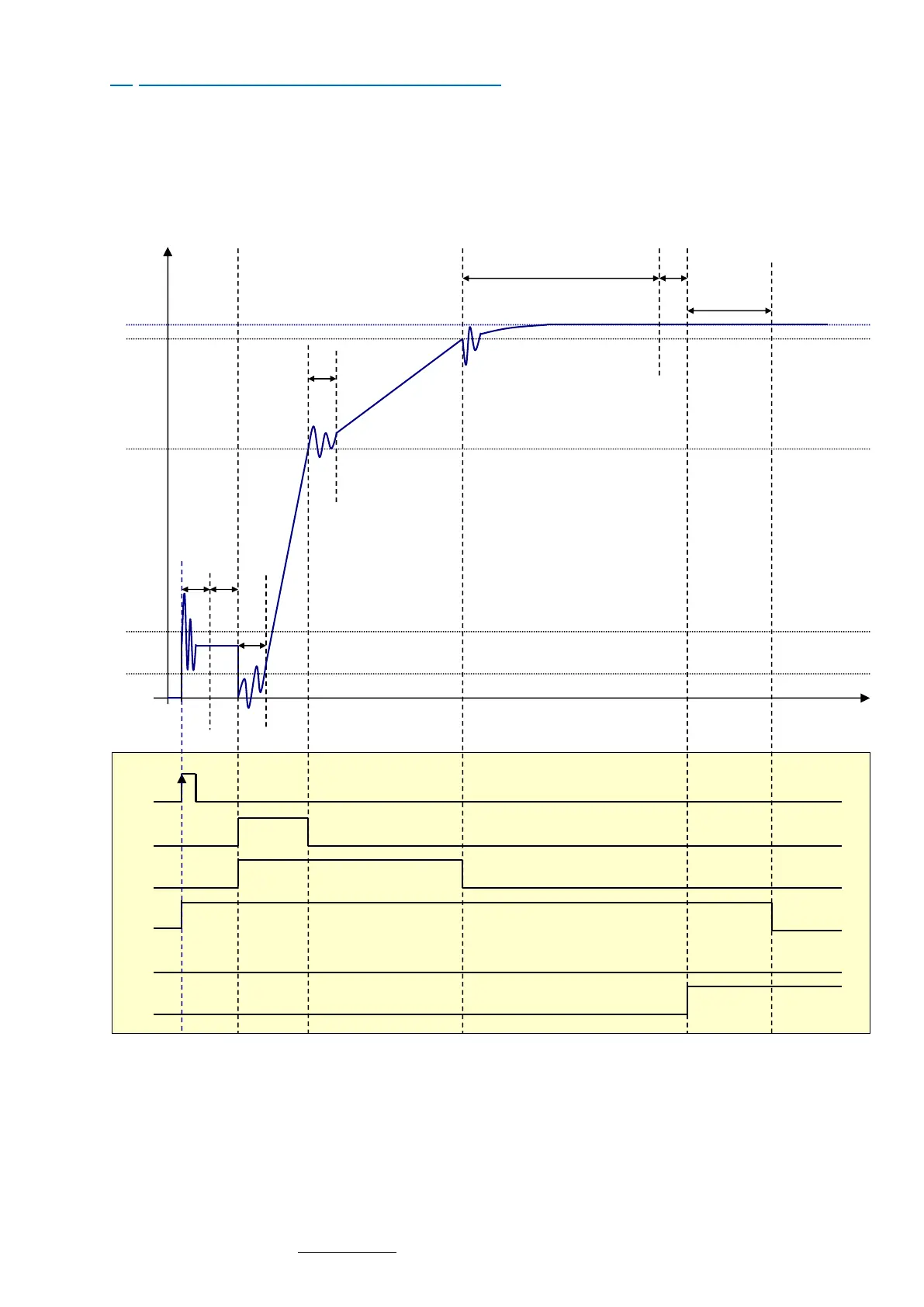

Fig. 6: filling cycle without emptying phase
