Scaime eNod4-D ETHERNET - Page 34

34
SCAIME Manual : NU-eNod4D-ETH-E-0418_216710-E.docx
 1: start delay
 2: motion time out
 3: coarse feed effect neutralization time
 4: fine feed effect neutralization time
 5: final stabilization time
 6: emptying holding time
 7: end of cycle waiting time
Time
start cycle
coarse feed
fine feed
cycle in progress
emptying
dosing result available
Measure
1
4
3
2
2 5
6
target weight
(target weight – fine feed level)
(target weight – inflight weight)
emptying end level
min empty weight
max empty weight
7

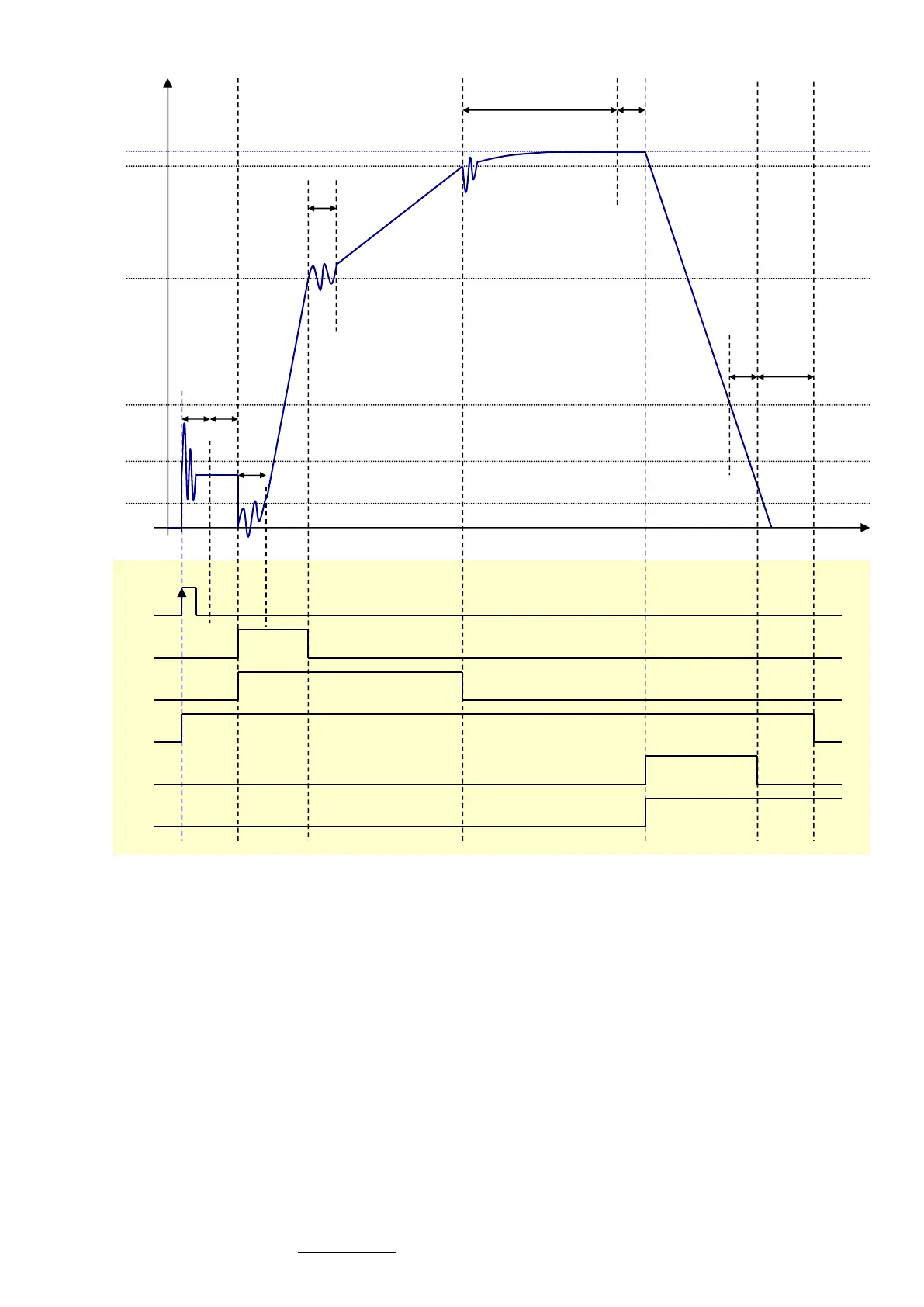

Fig. 7 : complete filling cycle with emptying phase
