4.2 Power supply connection
On the front panel a green light ‘PWR’, (D7) indicates if power is connected.

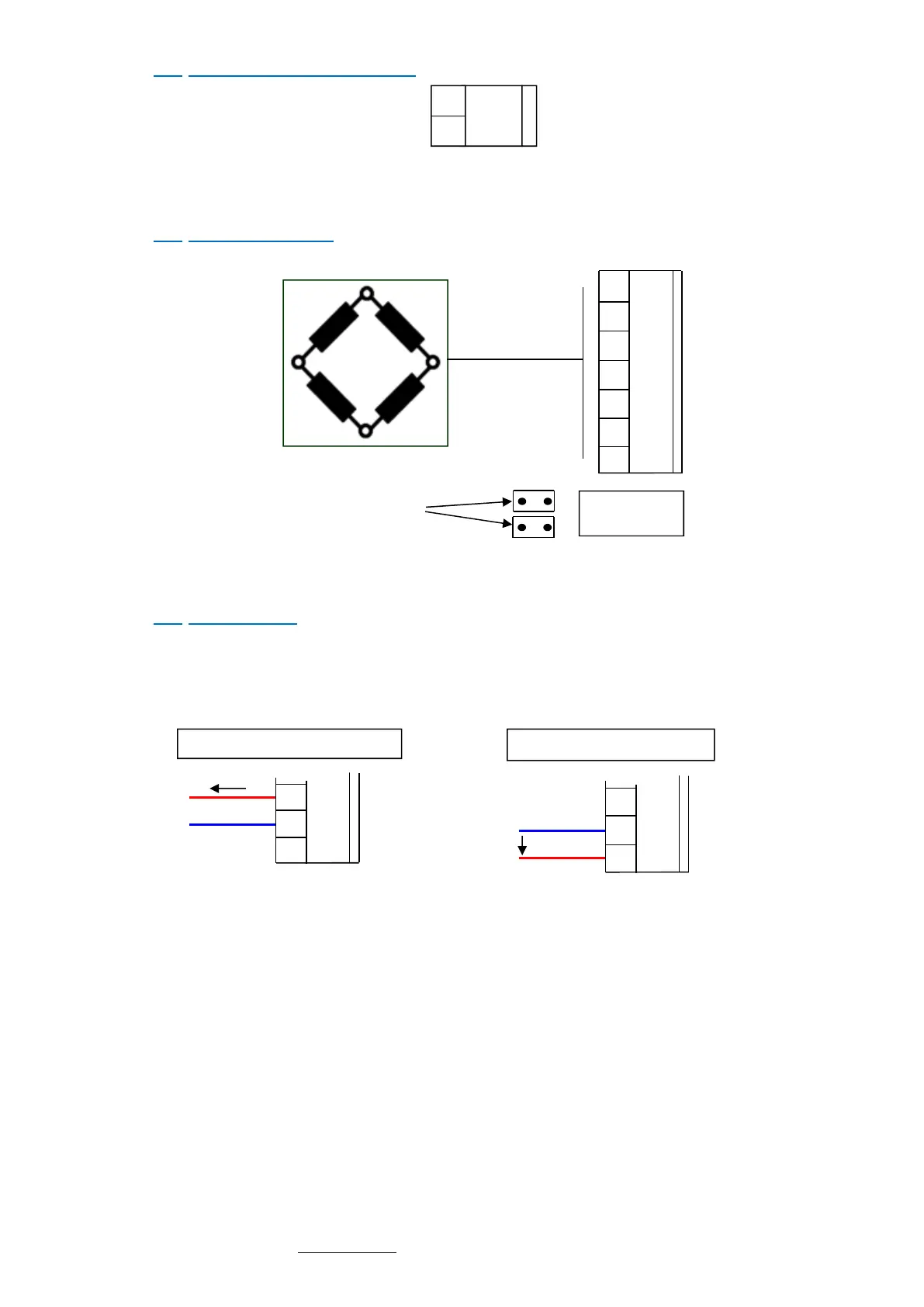

4.3 Load-cell wiring
 4 wires load-cell: jumpers in place (by default at delivery).
 6 wires load-cell: jumpers removed
4.4 IO+ version
An analog board in current and voltage might be used with eNod4 to provide IO+ version. This has to be requested
when ordering eNod4 product. The analog output is both current and voltage galvanically isolated at 1000V.
Voltage output might be set either 0-5V or 0-10V, and the current output to 4-20mA, 0-24mA, 0-20mA or 4-20mA
alarm 3.6mA. It is software setting and both output (current and voltage) might separately be enable.
The IO+ version is fitted with two additional inputs IN3 and IN4:
1
2
+VDC
GND
A1
1
2
3
4
5
6
7
Exc+
Sens+
Exc-
Sens-
Sig+
Sig-
Shield
4/ 6 wire jumper
ON: 4 wires
OFF: 6 wires
I
OUT
N
Current output connection
CN2
Iout
GNDA
Vout
8
9
10
V
OUT
N
Voltage output connection
CN2
Iout
GNDA
Vout
8
9
10
A3
