12.1 Reloading management
eNod4-D provides two mechanisms (optional) for reloading management. They allow eNod4-D to enter a reloading
phase in case of a lack of product in the tank.
cycle in progress
reloading
dosing result
available
start cycle
reloading max.
level
coarse
flow
fine
flow
6
5
4
3
1
target
weight
(target weight – fine feed
level)
(target weight – inflight
weight)
reference
weight
2
2
dosing result
!
target weight + residual weight >
gross value
7

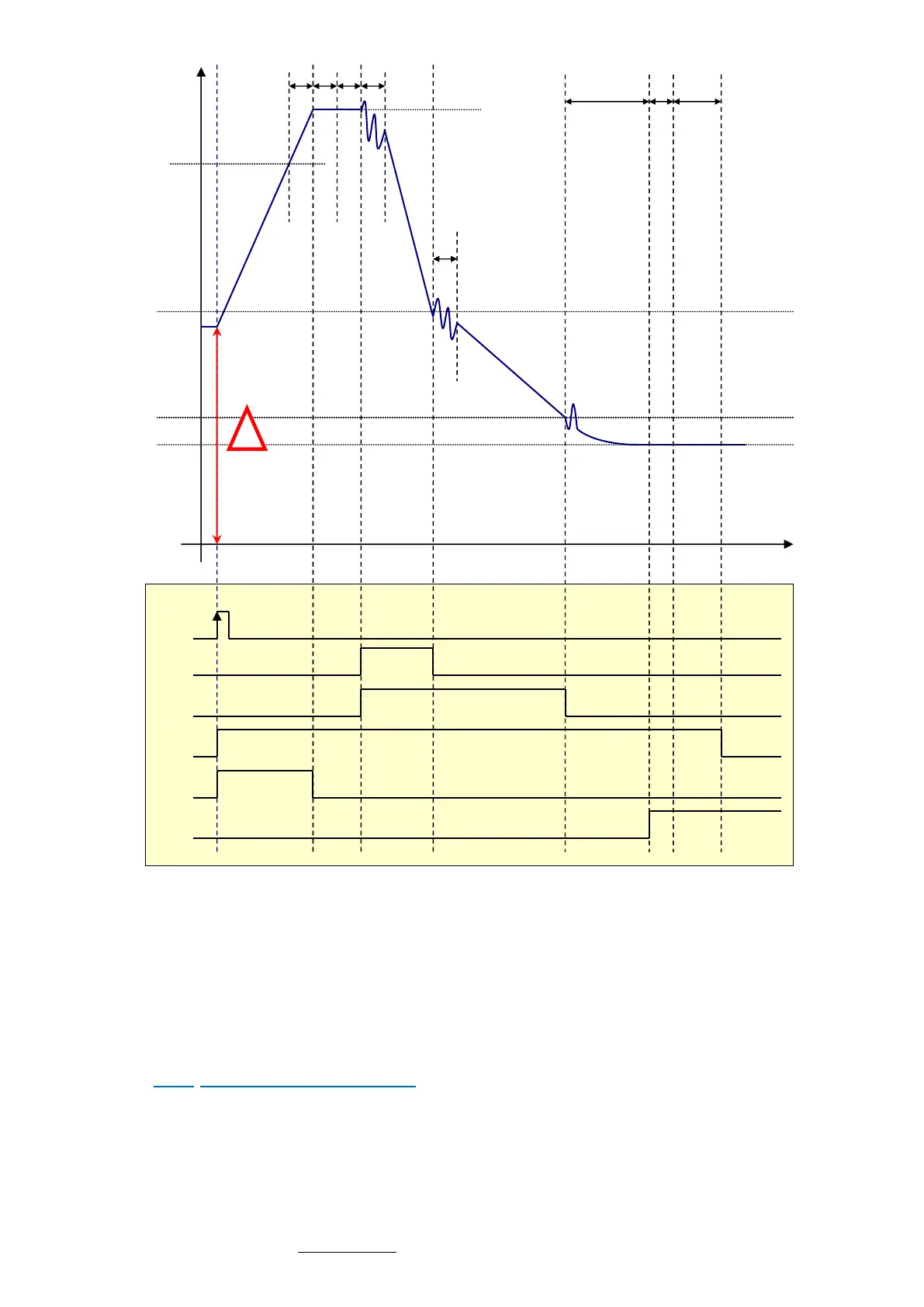

Fig. 9: dosing by unloading cycle with reloading phase at the start of the cycle
Time
Measure
