SCAIME Manual : NU-eNod4D-ETH-E-0418_216710-E.docx

13.1.5.6 Functioning Mode (eNod4-C, D, F, B)

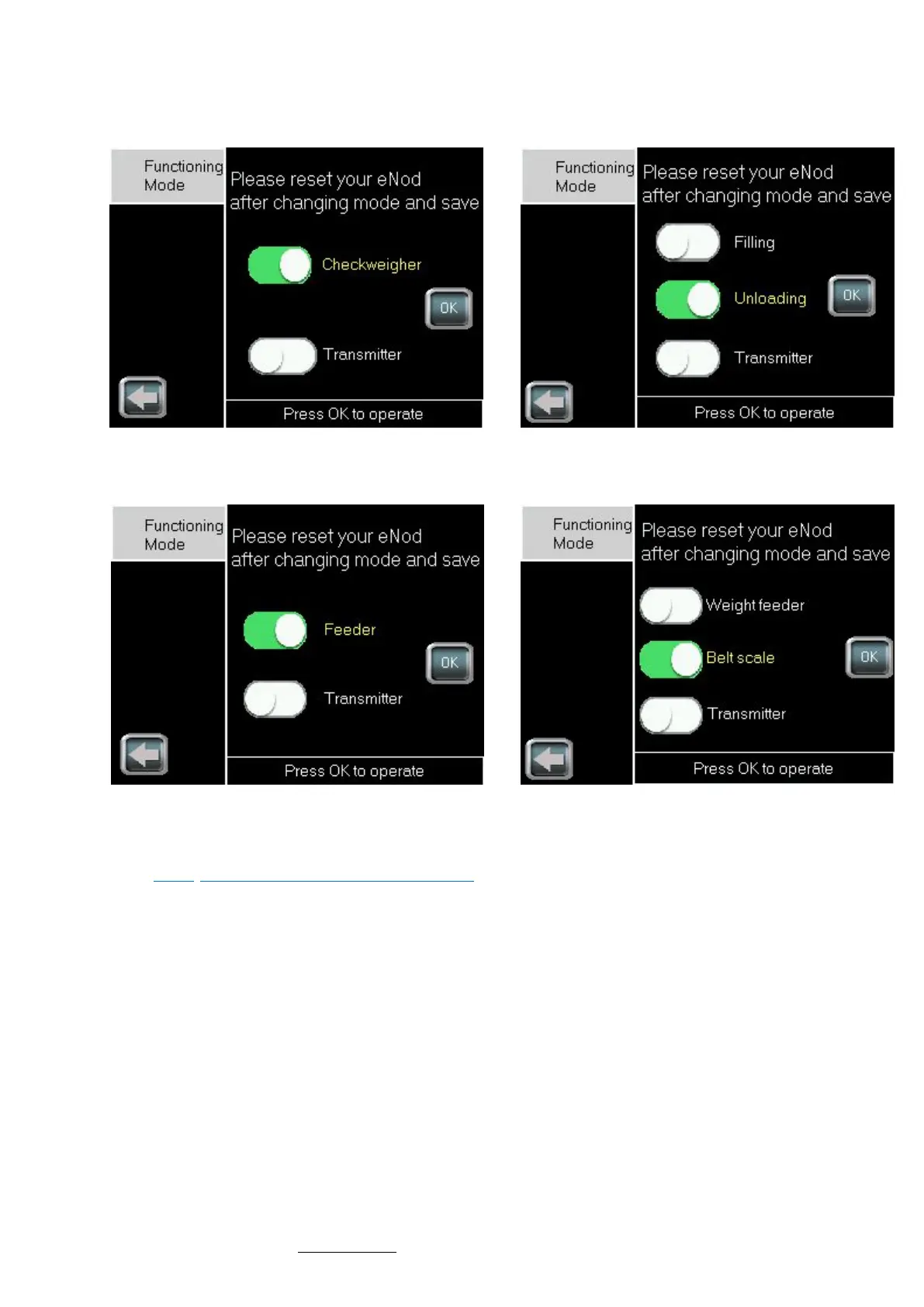

 According to the eNod4 model, the following screen is displayed to select the functioning mode

13.2 Dosing setup menu (eNod4-D)

eNod4-C eNod4-D

eNod4-F

eNod4-B
