Inspection
Operation at Top of
Car without TSD21

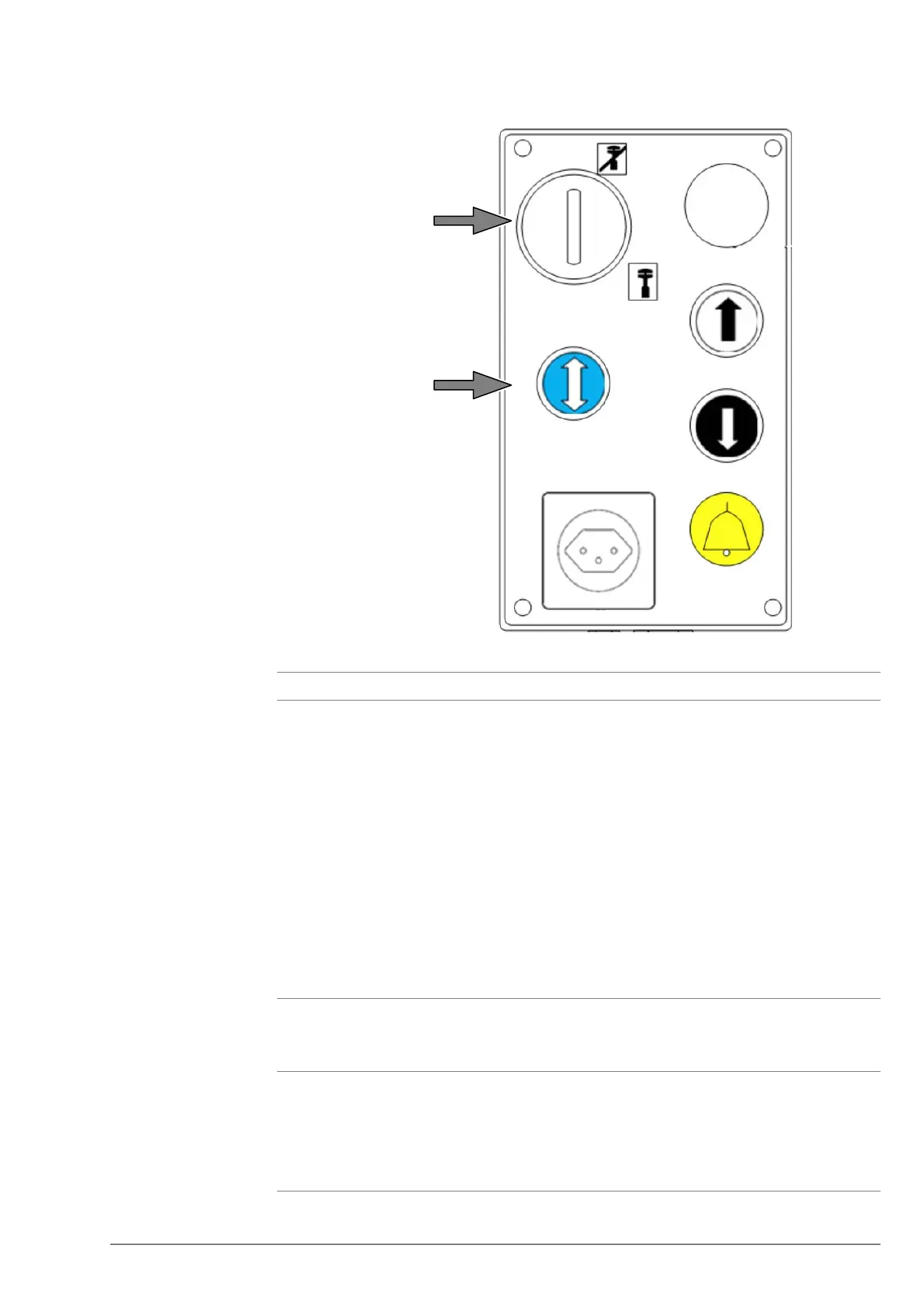

Inspection Panel Top of Car REC without TSD21 [604620_035; 07.12.2015]
No Step
1
Preparation for entering car roof:
– Activate the "Automatic Car Positioning Sequence" by pressing the
"RESET INSPECTION" button on SMICHMI for more than 3 seconds when
controller is in normal mode.
– All registered car calls will be served and all landing calls will be cancelled.
– The car first travels to the landing floor where the controller is installed and
opens the doors, allowing the maintenance person to check that the car is
empty.
– Press "RESET INSPECTION" button again.
– The doors are closed and the car starts to travel down until the car roof is
at the floor level of the landing where the controller is located.
– Maintenance person can now open the shaft door with a triangular key.
– Press JHC.
– Entering car roof.
2 Activation:
– Switch JREC to "Inspection"
– Release JHC only if JREC has been switched to "Inspection"
3 Operation:
– Press and hold DREC_U and DREC_E to move the car upwards
– Press and hold DREC_D and DREC_E to move the car downwards
– Release DREC_U or DREC_D or DREC_E to stop the car movement
– Press JHC to stop the car movement
STOP
JREC
DREC_E
JHC
DREC_U
RUN
DREC_D
DA-U
PC
NORMAL
I
N
S
P
E
C
T
I
O
N
