Inspection
Operation in Pit
without TSD21

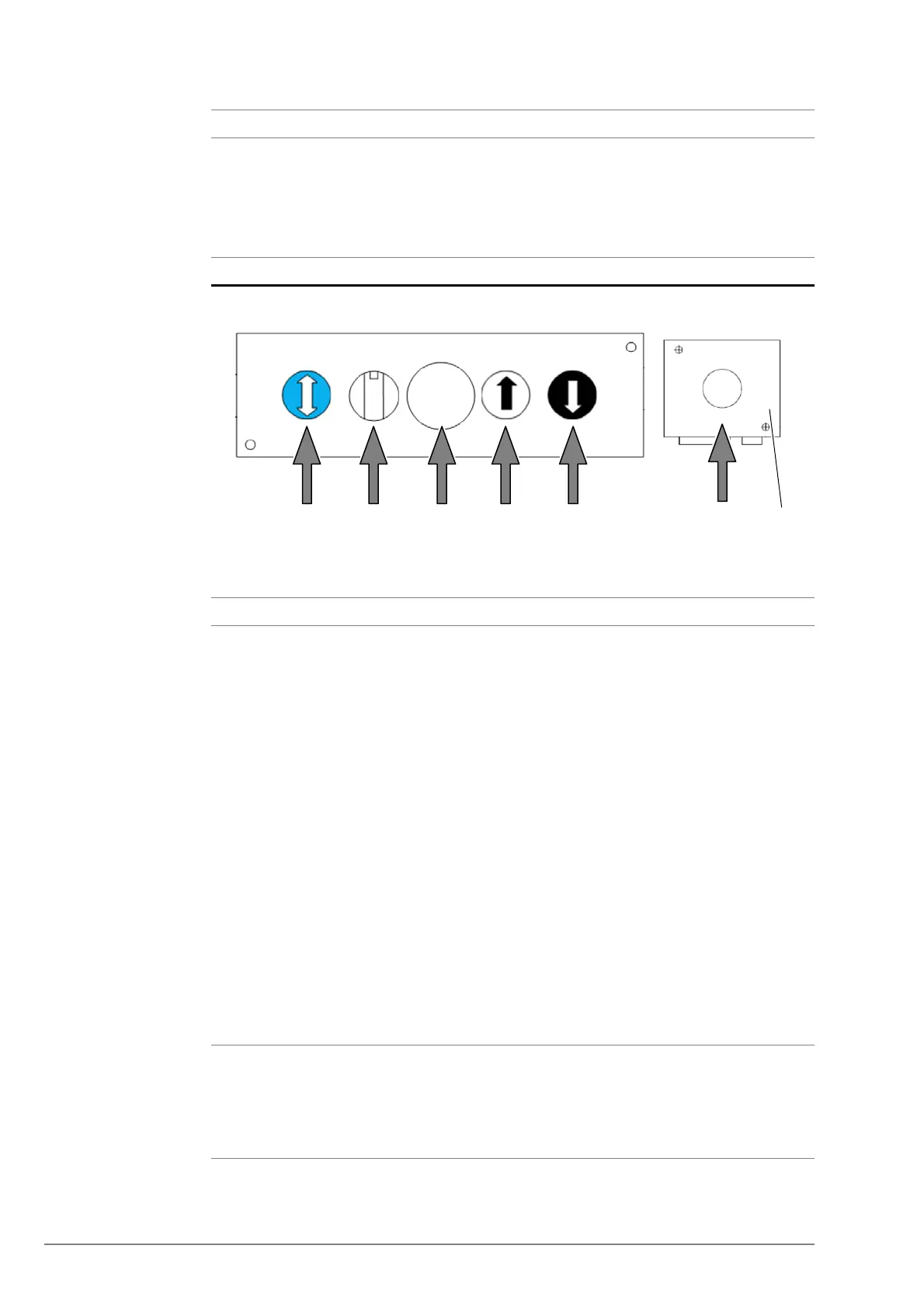

Pit Inspection Panel RESG [604620_036; 23.08.2017]
4 Deactivation:
– Press JHC
– Switch JREC to "Normal"
– Open the shaft door and leave the car roof
– Release JHC only after leaving the shaft
No Step
1 Pit box
No Step
1
Preparation for entering shaft pit:
– Activate the "Automatic Car Positioning Sequence" by pressing the
"RESET INSPECTION" button on SMICHMI for more than 3 seconds when
controller is in normal mode.
– All registered car calls will be served and all landing calls will be cancelled.
– The car first travels to the landing floor where the controller is installed and
opens the doors, allowing the maintenance person to check that the car is
empty.
– Press "DOWN" button on SMICHMI, controller acknowledges the request
with a beep
– Maintenance person can now enter the car and press any floor button on
any COP (For example: press the button for the first floor).
– Elevator now closes the door and travels to the first floor.
– Once arrived at first floor, elevator will open the door to let the maintenance
person to leave the car, and then close the door.
– After closing the door, elevator moves the car in up direction for a
configurable distance so that the shaft door to the pit access is freed.
– Maintenance person can now open the shaft door with a triangular key.
– Press JHSG1 on Pit Box close to the shaft door.
– Entering shaft pit, if necessary with the help of the pit ladder.
2 Activation:
– Switch JRESG to "Inspection"
– If necessary, return the pit ladder to its designated location
– Release JHSG1 on Pit Box only if JRESG has been switched to
"Inspection"
DRESG_E JRESG JHSG DRESG_U DRESG_D JHSG1 1
STOP
STOP
INSPECTION
NORMAL
JHSG1
