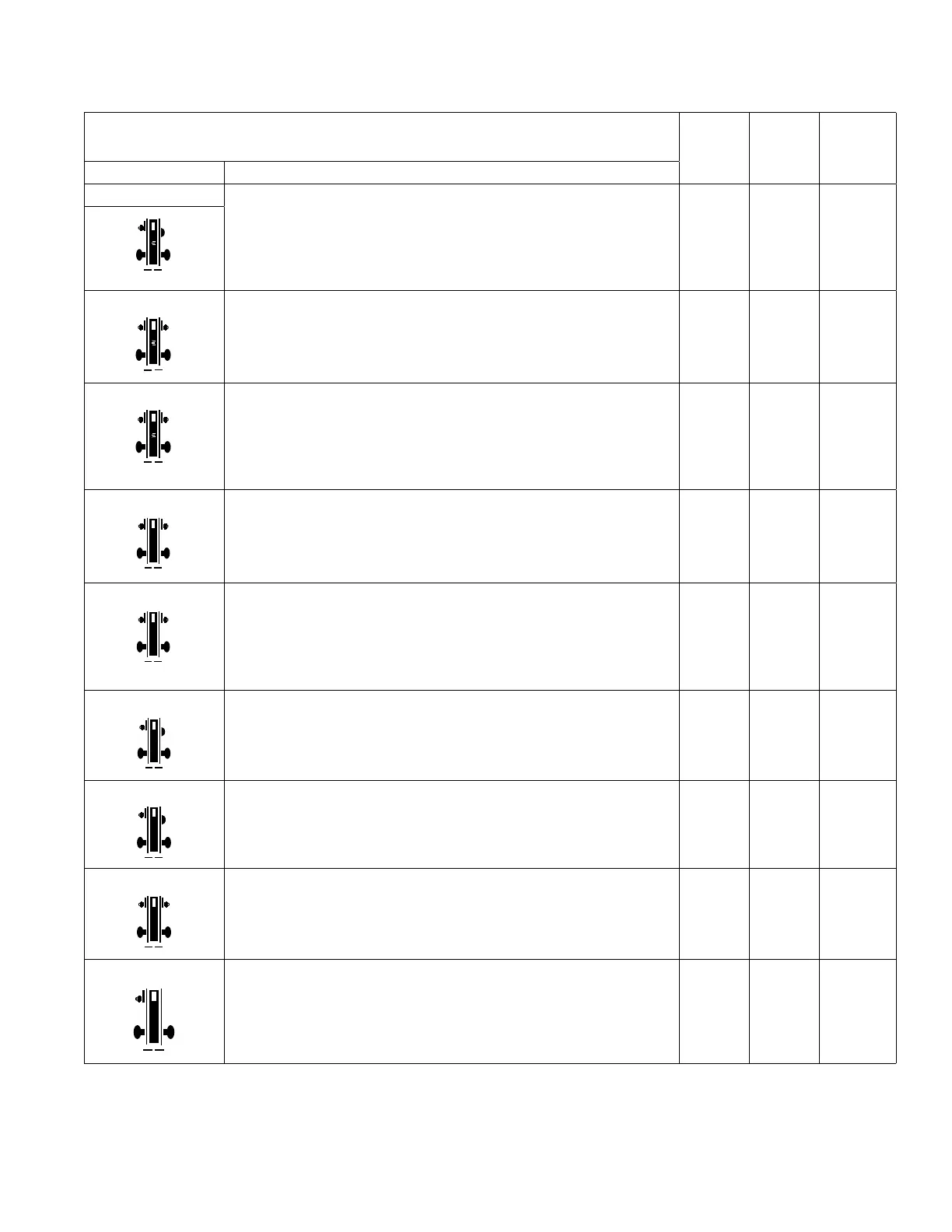

Lock assembly drawing index
Schlage • L-Series service manual • 13
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
LV9456 Corridor lock wtih Vandlgard
®
z
Latchbolt is retracted by knob/lever from either side. Deadbolt is operated by key
outside or inside thumbturn. Throwing deadbolt locks outside knob/lever. Turning
inside knob/lever simultaneously retracts deadbolt and latchbolt and unlocks
outside knob/lever. Inside knob/lever is always free for immediate exit.
Vandlgard function allows exterior lever to rotate freely down while remaining
securely locked.
28 88 L283-177
L9457 F33 Classroom security lock* z
Latchbolt is retracted by knob/lever from either side. Deadbolt is operated by key
from either side. Throwing deadbolt locks outside knob/lever. Turning inside
knob/lever simultaneously retracts deadbolt and latchbolt and unlocks outside
knob/lever. Inside knob/lever is always free for immediate exit.
29 87 L283-138
LV9 457 Classroom security lock* with Vandlgard
�
z
Latchbolt is retracted by knob/lever from either side. Deadbolt is operated by key
from either side. Throwing deadbolt locks outside knob/lever. Turning inside
knob/lever simultaneously retracts deadbolt and latchbolt and unlocks outside
knob/lever. Inside knob/lever is always free for immediate exit. Vandlgard
function allows exterior lever to rotate freely down while remaining securely
locked.
29 88 L283-177
L9458 F34 Classroom security lock* with auxiliary latchz
Latchbolt is operated by knob/lever from either side except when outside is
locked by key from inside or outside. Deadbolt is retracted by key from inside or
outside. Operating inside knob/lever retracts both bolts and unlocks the outside.
Auxiliary latch deadlocks the latchbolt when deadbolt is thrown. Inside lever is
always free for immediate egress.
29 89 L283-310
LV9458 Classroom security lock* with auxiliary latch with Vandlgard
�
z
Latchbolt is operated by knob/lever from either side except when outside is
locked by key from inside or outside. Deadbolt is retracted by key from inside or
outside. Operating inside knob/lever retracts both bolts and unlocks the outside.
Auxiliary latch deadlocks the latchbolt when deadbolt is thrown. Inside lever is
always free for immediate egress. Vandlgard function allows exterior lever to
rotate freely down while remaining securely locked.
29 90 L283-311
L9460 x XL11-635 L9460 with fixed dummy trim
Knob/lever is always fixed on both sides. Deadbolt is operated by key outside or
thumbturn inside. Specify per XL11-635.
35 91 XL11-635
L9460 x XL11-886 Deadbolt with retraction by inside knob/lever
Deadbolt is operated by key outside or thumbturn inside. Rotating inside knob/
lever retracts deadbolt. Outside knob/lever is always fixed. Specify per XL11-886.
36 93 –
L9462 x XL11-886 Double cylinder deadbolt* with retraction by inside knob/lever
Deadbolt is operated by key on either side. Rotating inside knob\lever retracts
deadbolt. Outside knob/lever is always fixed. Specify per XL11-886.
29 93 –
L9464 x XL11-886 Single cylinder deadbolt with retraction by inside knob/lever
Deadbolt is operated by key outside. Rotating inside knob/lever retracts
deadbolt. Outside knob/lever is always fixed. Specify per XL11-886.
30 93 –
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
z Available with Request to Exit feature.
