14 • Schlage • L-Series service manual

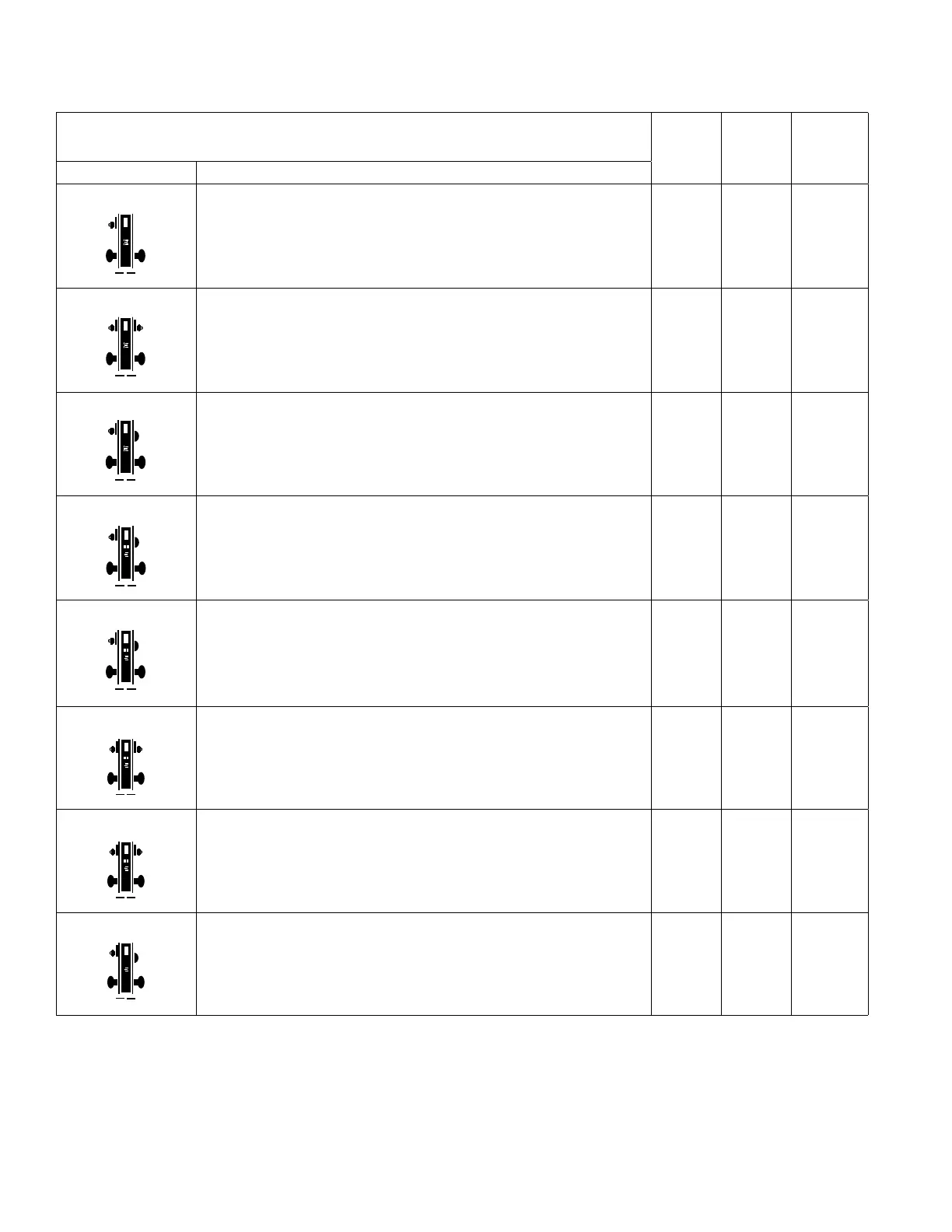

Lock assembly drawing index
L9000 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed locks
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
part no.
SCHLAGE ANSI Description
L9465 Closet/storeroom lock
Latchbolt is operated by knob/lever from either side. Deadbolt is operated by key
outside.
30 94 L283-140
L9466 F14 Storeroom/utility room lock*
Latchbolt is operated by knob/lever from either side. Deadbolt is operated by key
from either side.
29 94 L283-140
L9473 F21 Dormitory/bedroom lock
Latchbolt is operated by knob/lever from either side. Deadbolt is operated by key
outside or thumbturn inside.
28 94 L283-140
L9480 Storeroom lock with deadbolt
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always fixed. Deadbolt is operated by key outside or thumbturn inside. Turning
inside knob/lever simultaneously retracts both deadbolt and latchbolt. Auxiliary
latch deadlocks latchbolt when door is closed. Inside knob/lever is always free for
immediate exit. (Previously XL11-591).
37 95 L283-141
LV9480 Storeroom lock with deadbolt with Vandlgard�
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always inoperative. Deadbolt is operated by key outside or thumbturn inside.
Turning inside knob/lever simultaneously retracts both deadbolt and latchbolt.
Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is
always free for immediate exit. Vandlgard function allows exterior lever to rotate
freely down while remaining securely locked. (Previously XL11-591).
37 96 L283-178
L9482 x XL11-543 Institution lock with deadbolt*
Latchbolt is operated by key from either side. Knob/lever on both sides is always
fixed. Deadbolt is operated by key on either side. Auxiliary latch deadlocks
latchbolt when door is closed. Specify per XL11-543.
38 97 –
LV9482 x XL11-543 Institution lock with deadbolt* with Vandlgard�
Latchbolt is operated by key from either side. Inside and outside knob/lever are
always inoperative. Deadbolt is thrown or retracted by key on either side. Auxiliary
latch deadlocks latchbolt when door is closed. Vandlgard function allows exterior
lever to rotate freely down while remaining securely locked. Specify per XL11-543.
38 98 –
L9485 Hotel or restroom lock
Latchbolt is operated by key outside or by knob/lever inside. Outside knob/lever
is always fixed. Deadbolt is thrown or retracted by inside thumbturn. When
deadbolt is thrown all keys become inoperative except emergency keys. Turning
inside knob/lever simultaneously retracts both deadbolt and latchbolt. Auxiliary
latch deadlocks latchbolt when door is closed.
37 95 L283-141
† Locks with holdback feature are not UL listed. Installation should be in accordance with existing codes only.
* Caution: Double cylinder locks on residences–or on any door in any structure which are used for egress–are a life safety hazard in times of
emergency, and their use is not recommended. Installation should be in accordance with existing codes only.
Not sold separately as a part.
z Available with Request to Exit feature.
