Schlage L460 - Door Bolt (L480)

18 • Schlage • L-Series service manual

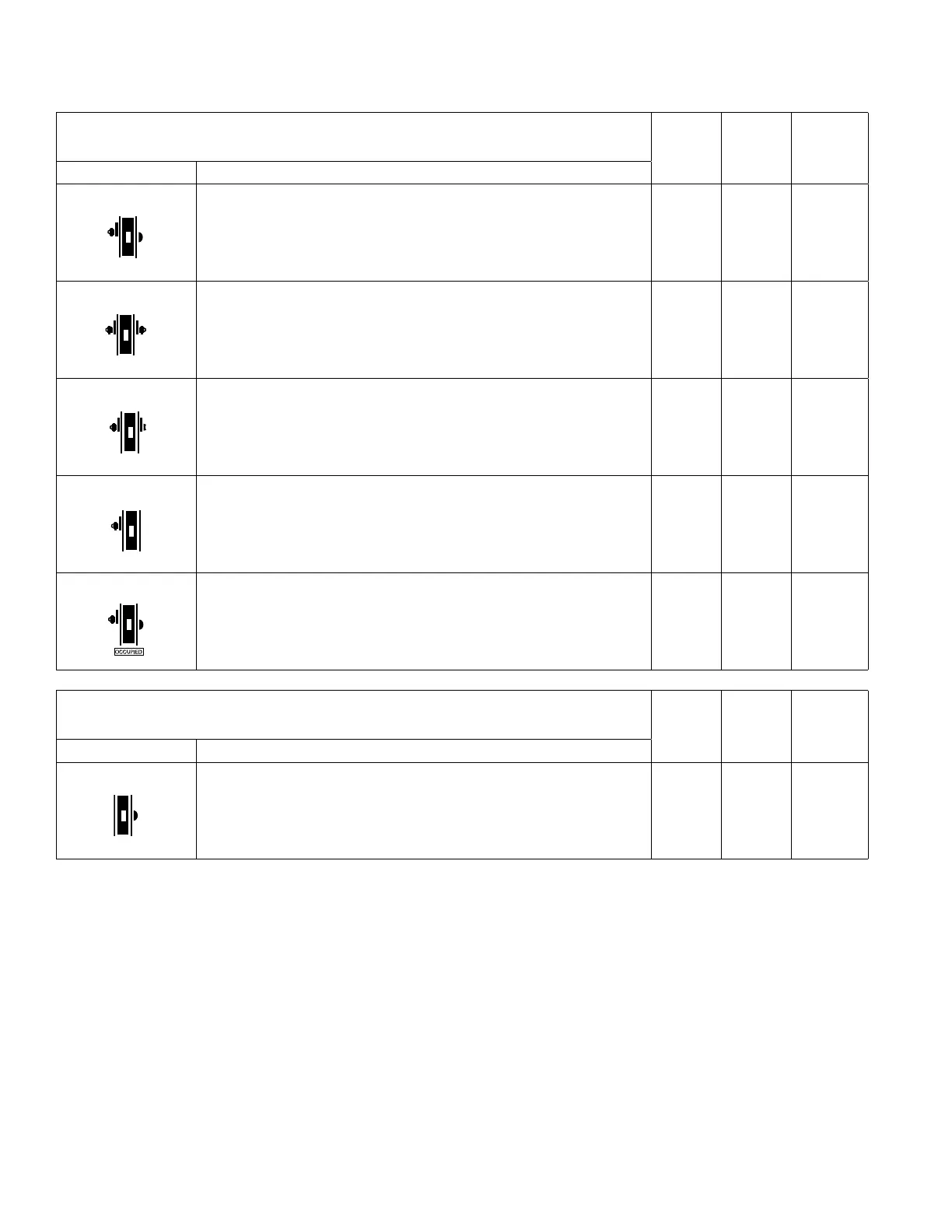

Lock assembly drawing index
L400 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Keyed L400-Series
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
page no.
SCHLAGE ANSI
L460 E06071 Cylinder by thumbturn lock
Deadbolt is operated by key outside or thumbturn inside.
22 55 L283-099
L462 E06061 Double cylinder lock*
Deadbolt is operated by key on either side.
22 55 L283-099
L463 E06091 Classroom lock
Deadbolt is operated by key on outside. Inside cylinder turn retracts deadbolt but
cannot extend it.
22 55 L283-099
L464 E06081 Cylinder lock
Deadbolt is operated by key on one side. No trim on opposite side. Available with
rose trim only.
22 55 L283-099
L496 Deadbolt with “Occupied” indicator
Deadbolt is operated by key outside or thumbturn inside. Furnished with 09-611
per L583-375 indicator. When deadbolt is thrown “OCCUPIED” plate is
displayed. Available with rose trim only. (Previously XL11-911).
22 55 L283-099
L400 FUNCTIONS
ANSI/BHMA A156.13, 1994, Series 1000, Grade 1
Non-keyed L400-Series
Trim
assembly
page no.
Lock
assembly
page no.
Lock case
page no.
SCHLAGE ANSI Description
L480 F14 Door Bolt
Deadbolt is operated by thumbturn on one side. No trim on opposite side.
22 55 L283-099
