2.3 Installation, fastening, cable entry

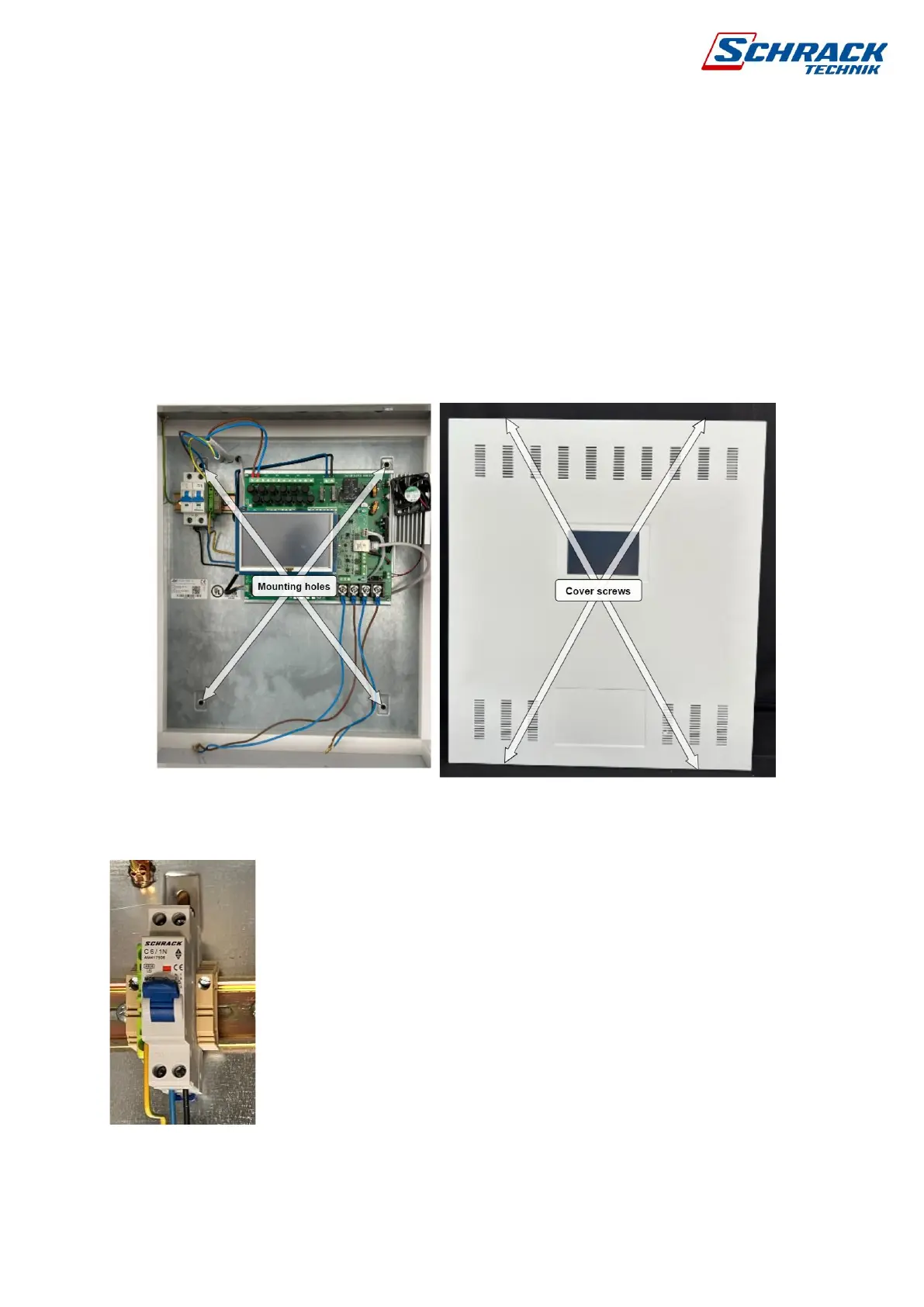

To remove the front panel of the control panel, remove the fastening screws. Fasten the
SECURO 24 PRO control panel to the wall with sufficiently robust screws and fastening
elements, at least 4 pieces.
The weight of the control panel in the one-hour version (NCCB2461E.) is 14 kg without
batteries and 43 kg including 2 pcs. 45Ah batteries.
The three-hour version (NCCB2463E.) weighs 17 kg without batteries and 75 kg including 4
pcs. 45 Ah batteries.
Use the rubber glands on the top of the control panel for cable inlets.
2.4 Main AC breaker and terminal blocks
To supply the control panel with 230V AC, connect the solid or twisted
end sleeved cable with a cross section of at least 3 x 1.5mm². Make sure
the phase correct wiring. Before connecting wires, make sure that they
are de-energized. The maximum current consumption of the system is
3A ~230VAC.
