Installation and operating instructions
16 Vers. 1.0 2024_03

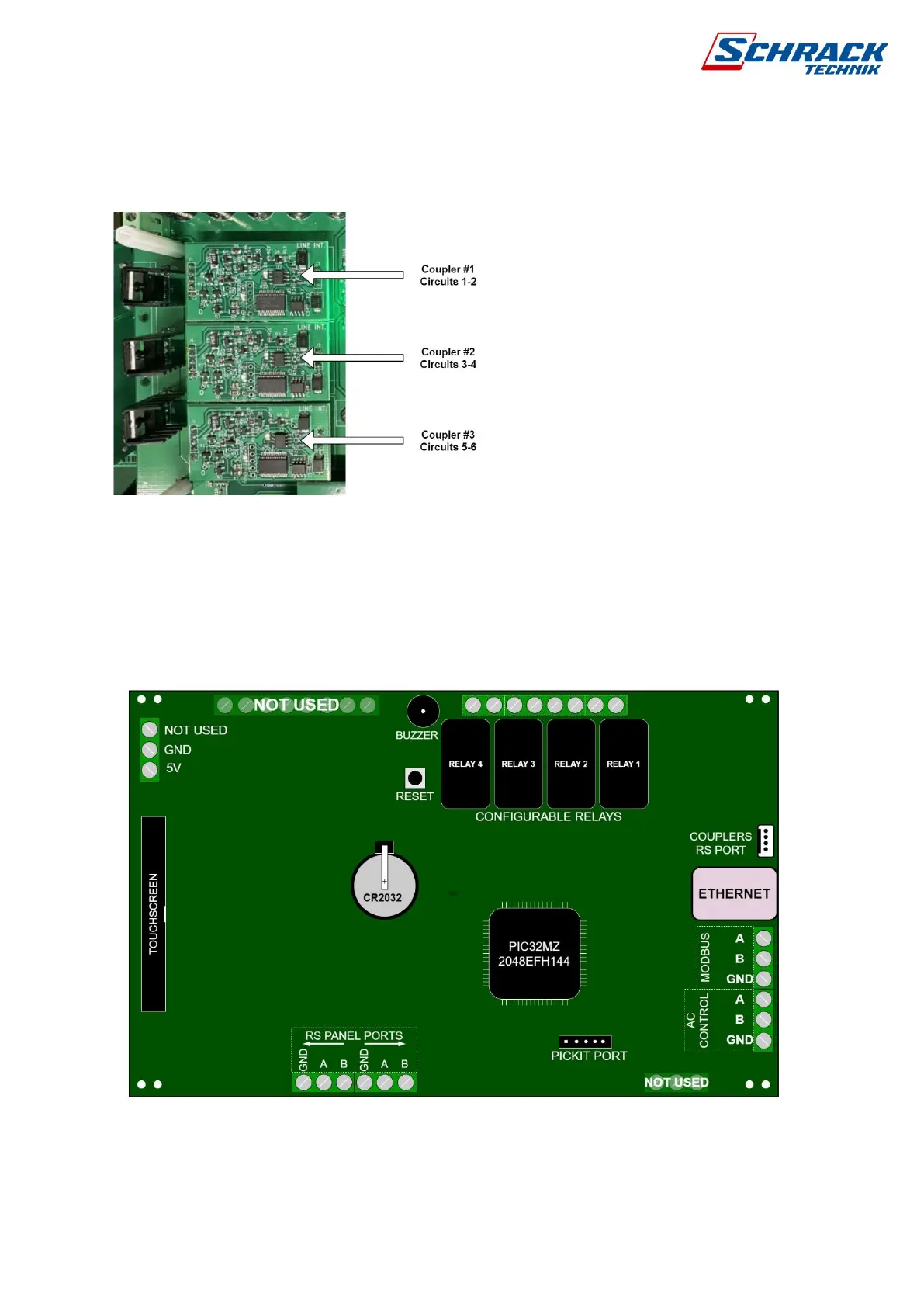

2.9 Line interface module
Under the Master panel there are 3-line interface modules, each with a unique identification
number. Each of them is responsible for monitoring 2 circuits. If there is no communication
with any of the modules, it must be replaced immediately, quickly inform the service.
Communication cables can only be replaced with factory ones.
2.10 Master panel
The master panel controls the SECURO 24 PRO emergency lighting panel and displays the
most important information about the system via the touch screen. It can be networked with
other control panels via TCP/IP or RS485. It has 4 programmable relay outputs. Adressable
