Installation and operating instructions
29 Vers. 1.0 2024_03

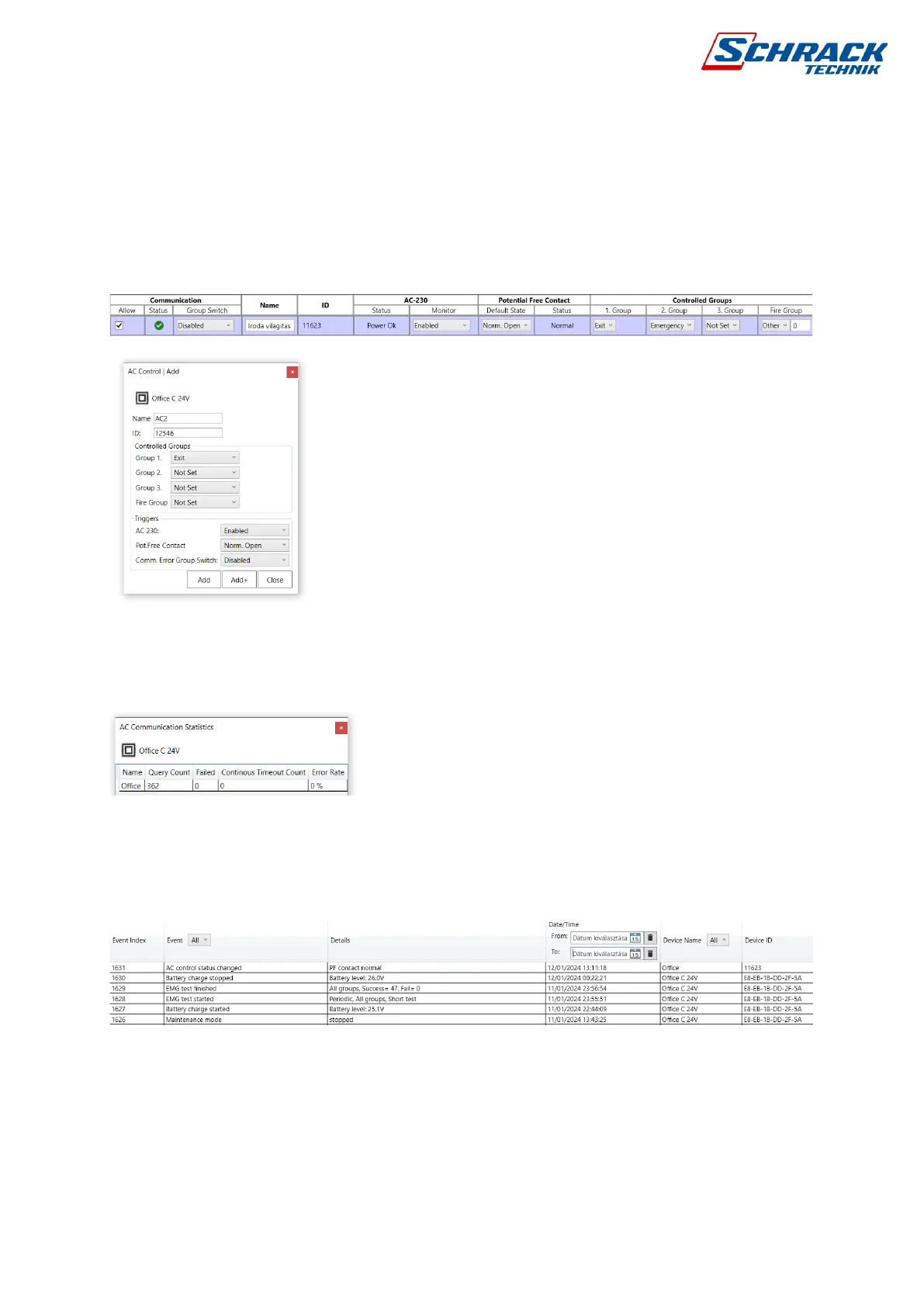

4.2.6 Line monitoring modules (AC Control)
The line monitoring modules must be added to the system individually based on the
identification numbers on the sticker. You can set whether there should be phase monitoring,
by default it monitors closing or disconnecting contacts. You can link 3 groups, which can be
local or network. The fire groups controlling dynamic luminaires are also controlled by these
modules. In the software you can monitor the live state changes of modules, disable them or
even temporarily activate group control.
The communication quality of the modules can be checked based on the queries. If the error
rate is too high ~10%, debugging is required. It can be caused by a fault in the communication
cable or even by a faulty module. If group linking is enabled in case of communication signal
loss, the configured groups will be automatically switched on after 100 incorrect queries.
4.2.7 Event list / alerts
The last 2000 events are stored in the memory of the control panel, from which the old ones
are automatically overwritten. The event list can be filtered and saved in pdf format.
We distinguish alarm signals; these are all events for which we can program a relay control.
Typically, communication failure, test failure, battery failure. For the rest state of the relays,
alarms must be acknowledged.
