Installation and operating instructions
18 Vers. 1.0 2024_03

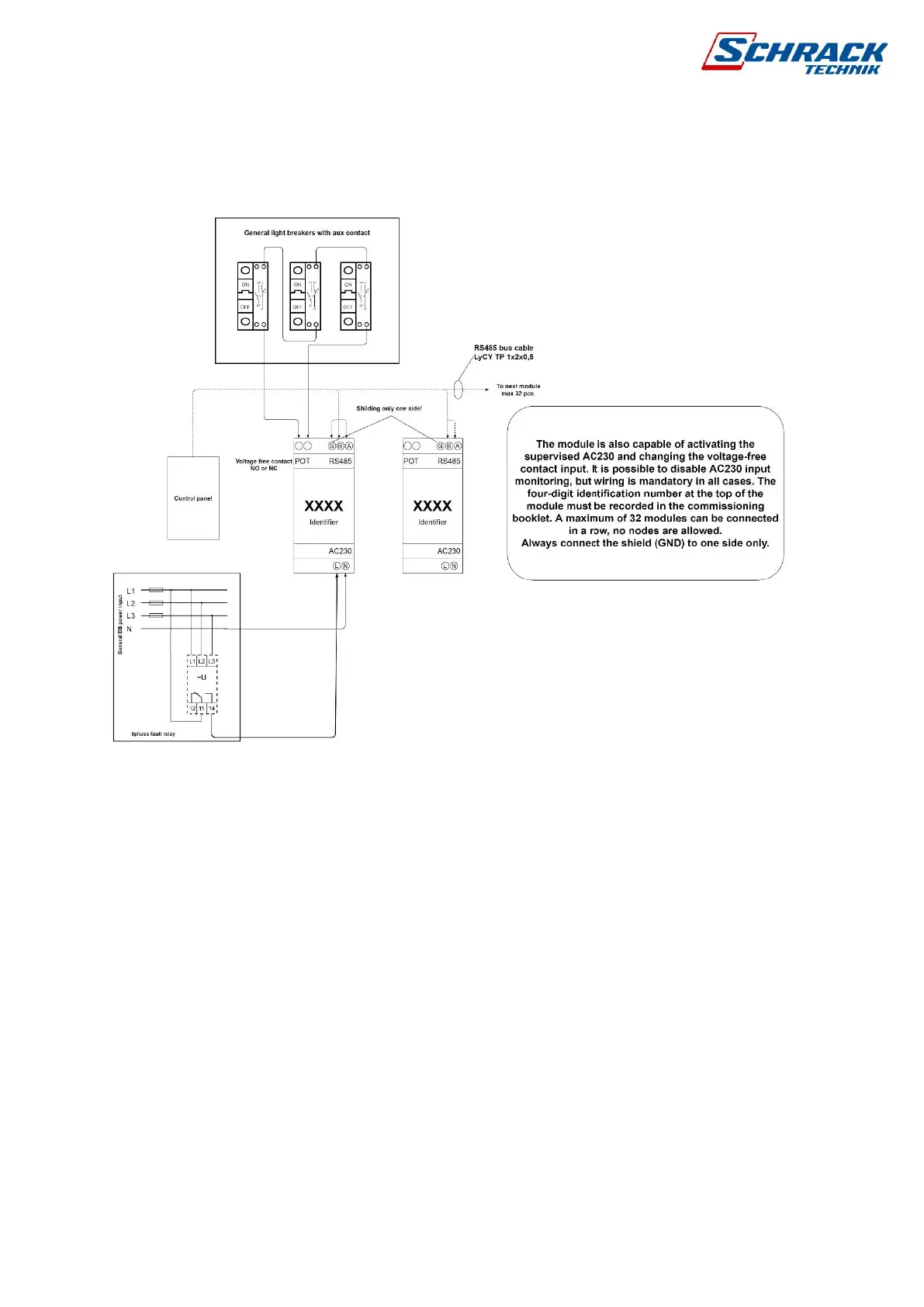

Schematic diagram of AC voltage monitoring modules
Below, you can see an example of phase monitoring, in which you monitor the 3 phases
supplying the distributor and the position of the circuit breakers of the lighting circuits. Thus,
you can activate the safety light even in case of phase failure and circuit disconnection.
