Assembly
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296
41

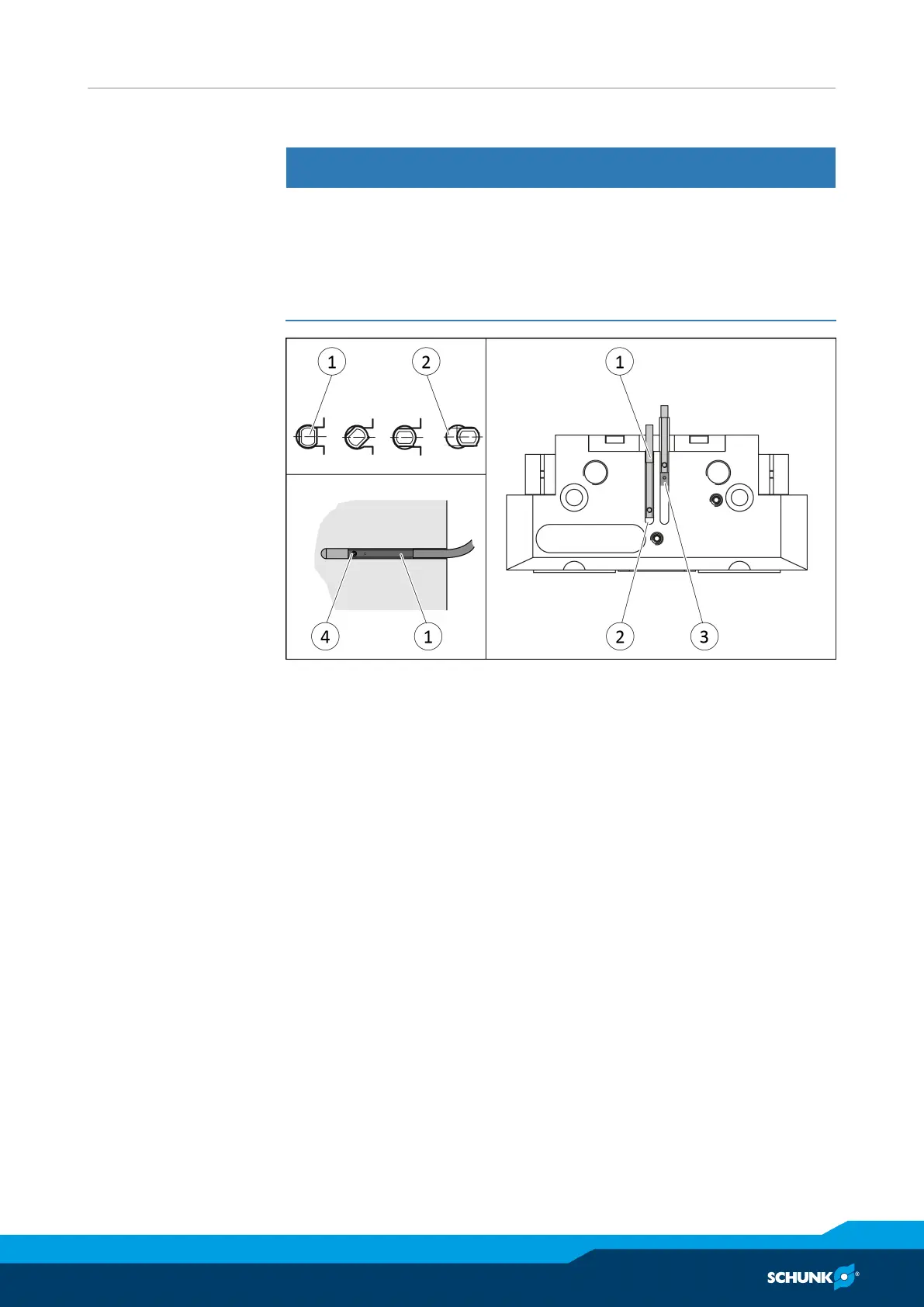

5.3.13 Mount the reed switch RMS 22
CAUTION
Material damage due to an incorrect tightening torque!
If the threaded pin is tightened with an incorrect tightening
torque, the product may be damaged.
• Observe a maximum tightening torque of 10 Ncm for the set-
screws.
Position "Gripper open" or "Part gripped (I.D. gripping)"
Ø Bring product in the position to be set.
Ø If necessary remove T-nut (3).
Ø Turn the sensor 1 (1) into the groove (2).
OR: Slide the sensor 1 (1) into the groove (2) until the sensor 1
(1) stops at the end of the groove.
Ø Pull the sensor 1 (1) back again slowly until it switches.
Ø Secure the sensor 1 (1) using the set-screw (4).
Tightening torque: 10 Ncm
Ø Bring product into the "Gripper open" or "Part gripped" position
and test the function.
Position "Gripper closed" or "Part gripped (O.D. gripping)"
Ø Bring product in the position in which it is to be set.
Ø If necessary remove T-nut (3).
Ø Turn the sensor 2 (1) into the groove (2).
OR: Slide sensor 2 (1) into the groove (2) in the direction of the
housing middle (3), until the sensor 2 (1) switches.
Ø Secure the sensor 2 (1) using the set-screw (4).
Tightening torque: 10 Ncm
Ø Bring product into the "Gripper closed" or "Part gripped"
position and test the function.
