5.3.11 Mount the analog magnetic switch MMS 22-A
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
NOTE

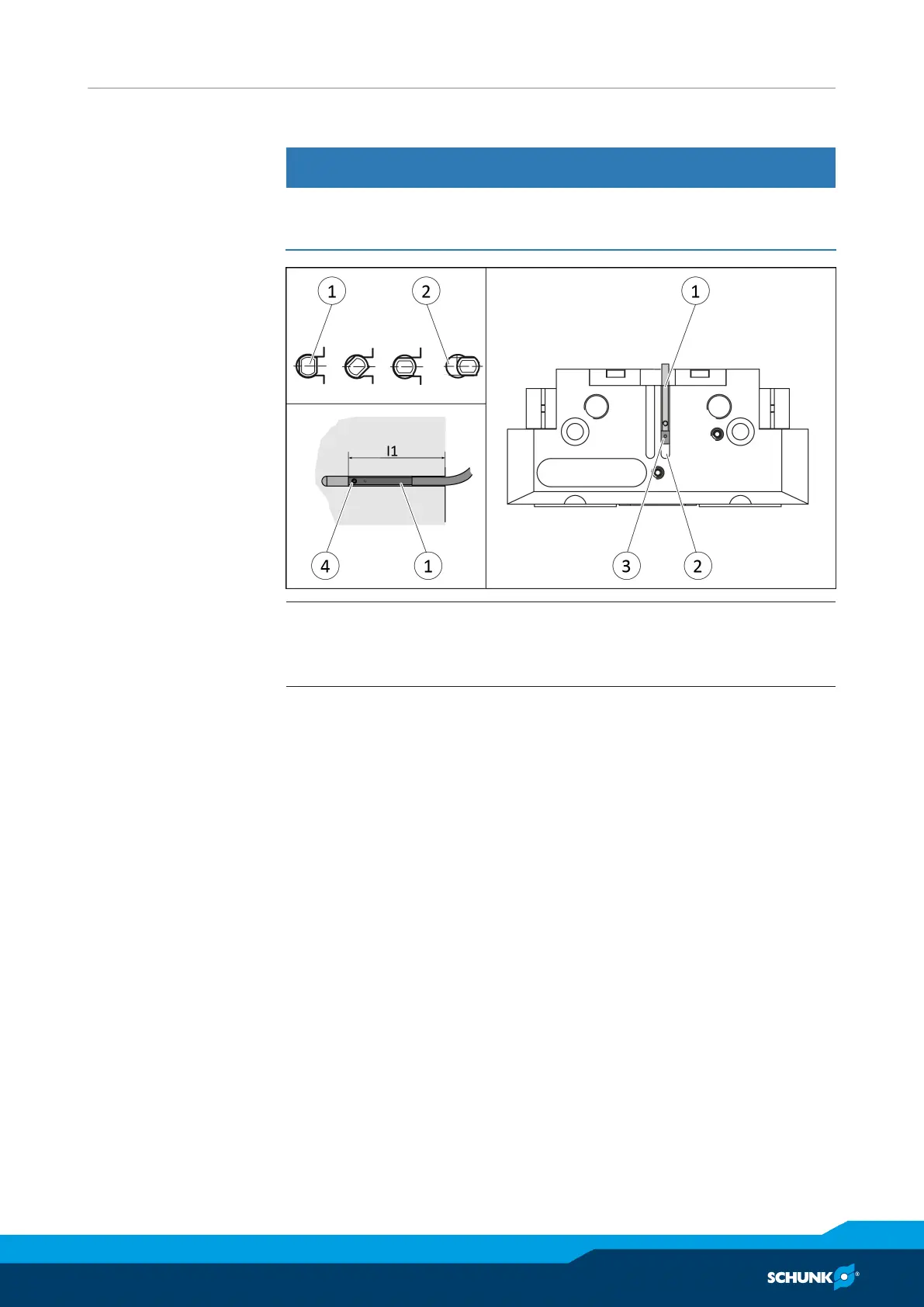

If there is no T-nut available, slide the sensor according to
dimension I1 into the groove (2), see following table.
Ø Turn the sensor (1) into the groove (2).
OR: Slide the sensor (1) into the groove (2) until the sensor (1)
stops at the T-nut (3).
Ø Secure the sensor (1) using the set-screw (4).
Tightening torque: 10Ncm
Ø Adjust sensor (1), see sensor assembly and operating
manual.
