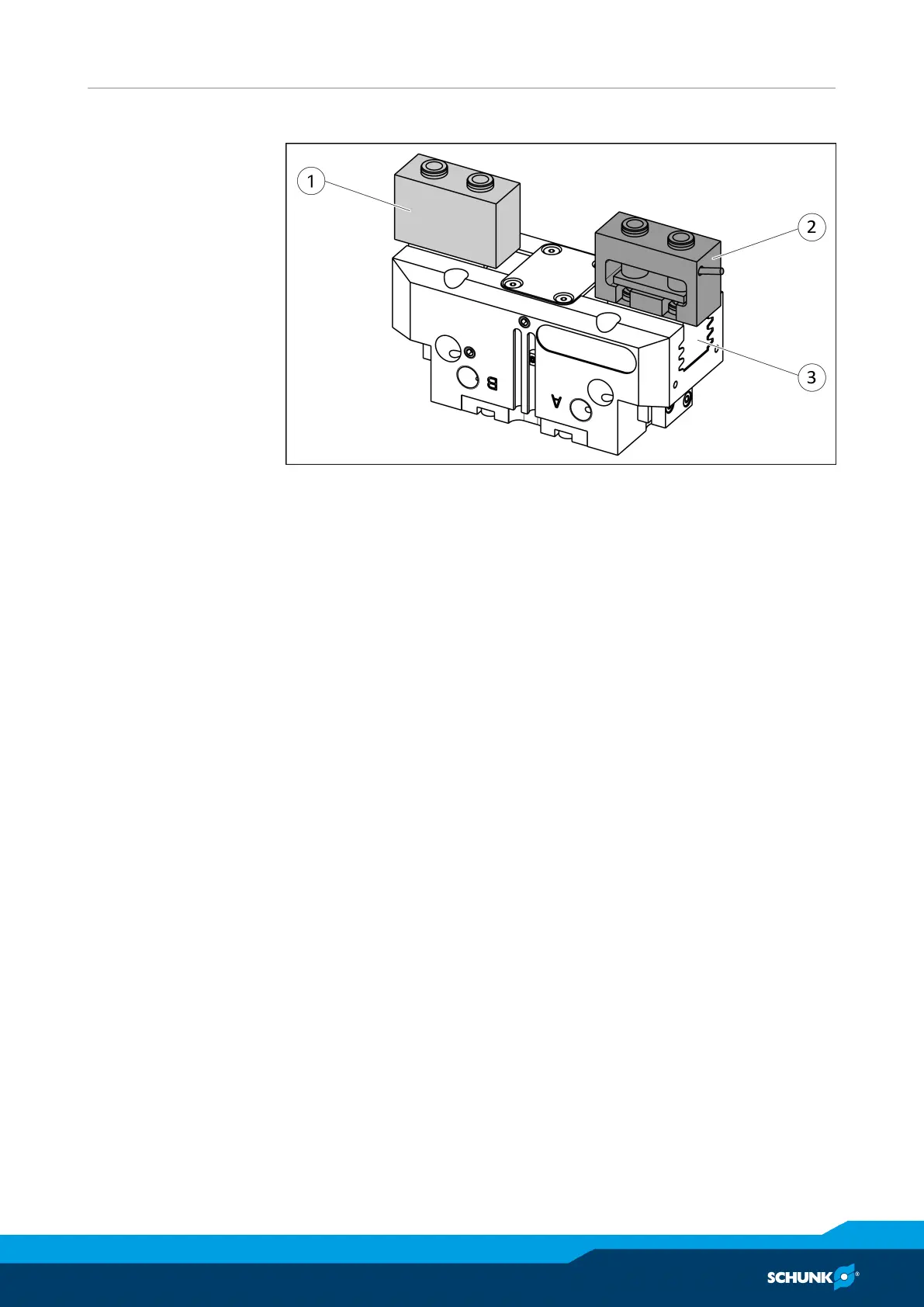

5.3.17 Mount the force-measuring jaw FMS
Ø Screw intermediate jaws (2) onto the base jaws (4).
✓ Use centering sleeves between base jaw and intermediate
jaw.
Ø Screw passive force-measuring jaw (1) and active force-
measuring jaw (3) onto the intermediate jaws.
✓ Use centering sleeves between force-measuring jaw and
intermediate jaw.
Ø Screw gripper fingers onto the force-measuring jaws (1, 3).
✓ Use centering sleeves between force-measuring jaw and
gripper finger.
Ø Connect the evaluation unit, see Sensor Assembly and
Operating Instructions.
