Maintenance
60
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296
7.6.2 Sizes 125 - 380

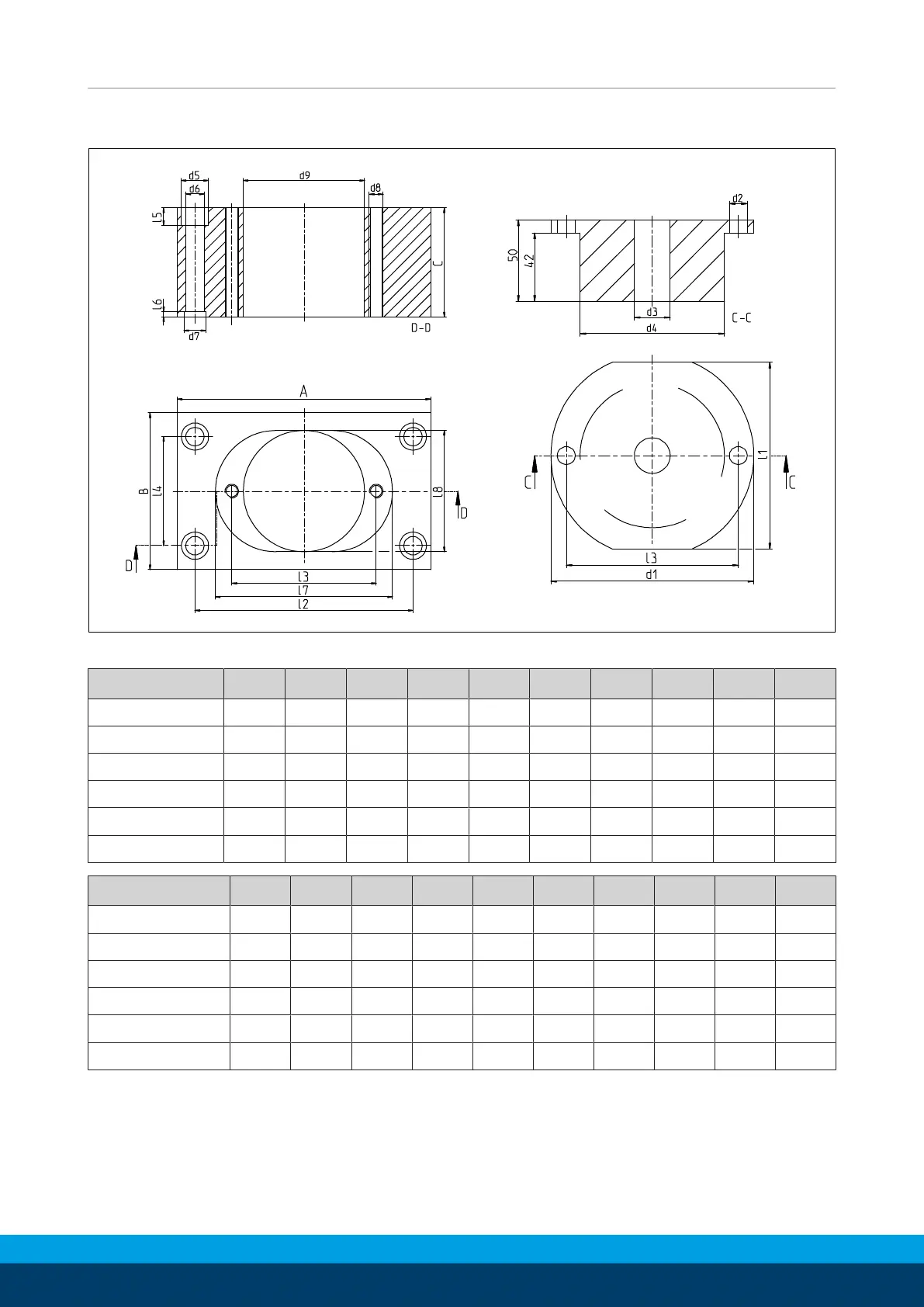

Cylinder piston assembly device - dimensions in mm
A B C d1 d2 d3 d4 d5 d6 d7
PGN-plus 125 100 60 50 96 9 15 45 14 9 12
PGN-plus 160 125 72 50 90.5 9 18 57.5 15 9 12
PGN-plus 200 154 100 65 110 9 20 78 18 11 14
PGN-plus 240 186 115 80 125 11 22 88 20 13.5 16
PGN-plus 300 210 140 95 149 11 30 114.3 26 17.5 22
PGN-plus 380 285 170 110 180 13.5 32 129 33 22 28
d8 d9 l1 l2 l3 l4 l5 l6 l7 l8
PGN-plus 125 M8 - 60 82 80 45 9 3 67 46
PGN-plus 160 M8 58.5 72 100 74.5 56 9 3 - -
PGN-plus 200 M8 79 100 130 95 70 11 4 - -
PGN-plus 240 M10 89 115 160 106 80 13 4 - -
PGN-plus 300 M10 115.3 139 180 130 96 17 6 - -
PGN-plus 380 M12 130 170 250 150 116 21 8 - -
