Maintenance
64
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296

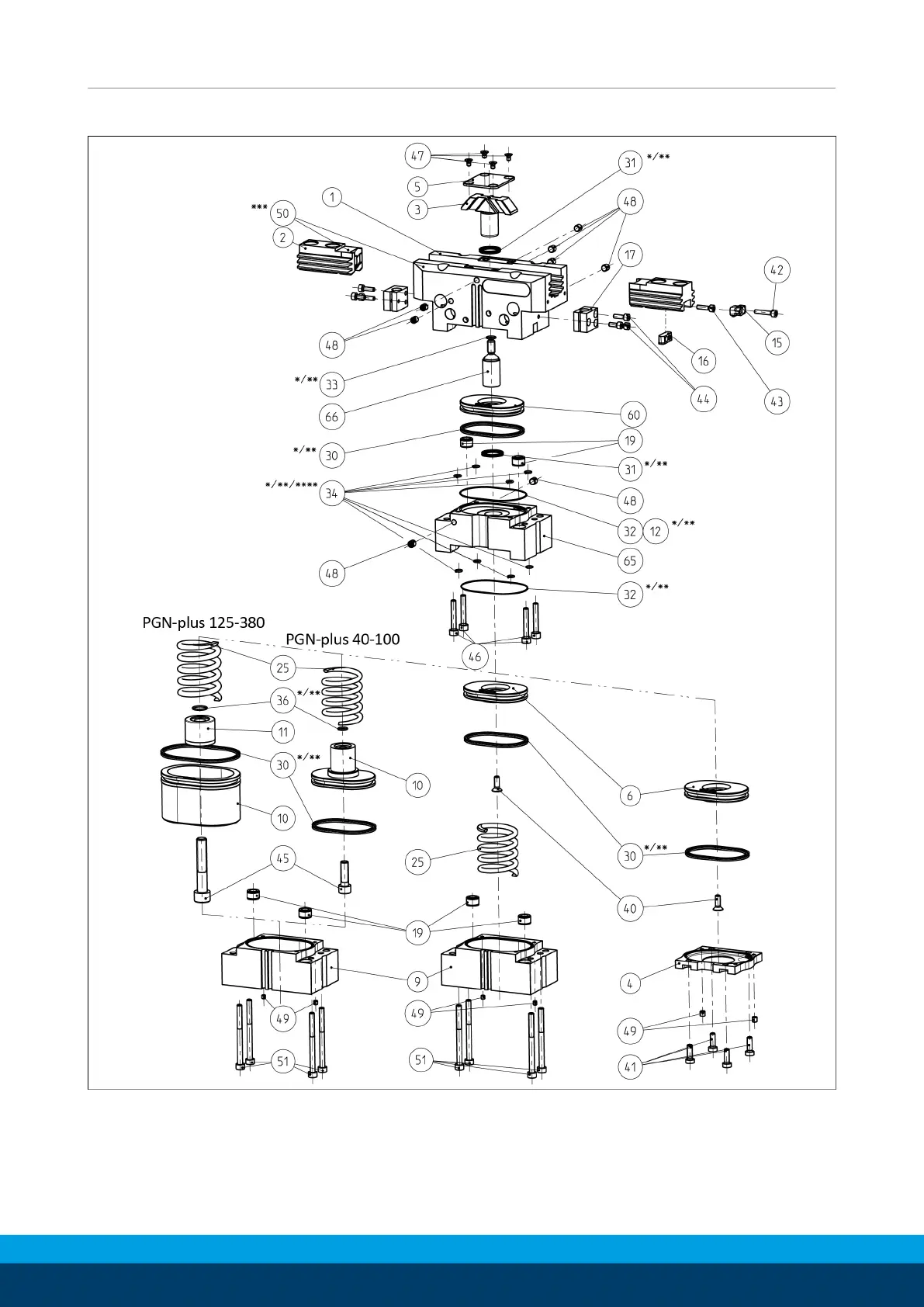

7.7.3 Version with power booster cylinder
*
Wearing part, replace during
maintenance.
***
Positions are adapted to each other and
can not be replaced by the customer.
** Included in the seal kit. Seal kit can
only be ordered completely.
**** not with PGN-plus 40 - 80
