Assembly
44
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296
5.3.15 Mount the flexible position sensor FPS
The flexible position sensor FPS consists of an evaluation unit and
one of the following sensors:
• MMS 22-A-5V
• FPS-S M8
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
5.3.15.1 Mounting the MMS 22-A-5V
Note: In order to mount the sensor MMS 22-A-5V, no additional
attachment kit is required.
Ø Assembling the sensor,
Mount the analog magnetic switch MMS 22-A [
}
37] .
Ø Connect the control unit output and adjust the sensor (see
assembly and operating manual of the sensor).
5.3.15.2 Mounting the FPS-M8
To be able to mount the sensor, the gripper has to be retrofitted
with a special mounting kit.
Variant Dust-tight:
Before attaching the sensor, remove the sealing bolts from the
bracket. Before adjusting the control cam, unscrew the set-screw
from the side cover.
Ø Move product to the "gripper open" position.

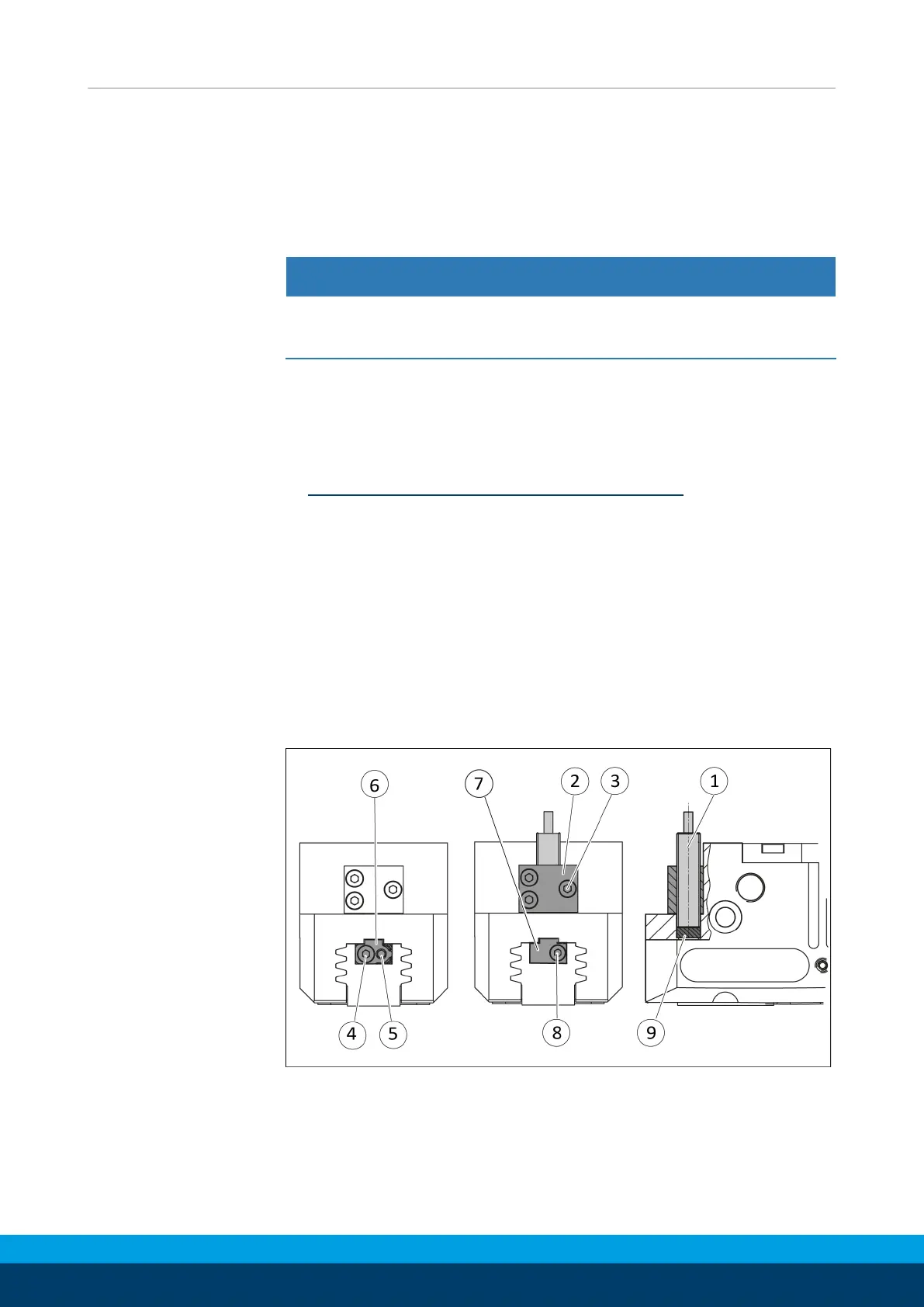

Ø Loosen screw (4) and remove control cam (6) for the inductive
monitoring from the base jaw.
Ø Remove screw (5) from the base jaw.
