Maintenance
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296
59
7.6 Assembly device cylinder piston with gripping force
maintenance
7.6.1 Sizes 40-100
l
1
± 0.02
A
Ø d
3
B
C
0.02
0.02
t
3
Ø 15
E
H8
Ø d
2
D
H8
l
2
± 0.02
Ø d1
h7
B
B
A
A
t
2
t
1
1x 45°
B - B
A - A

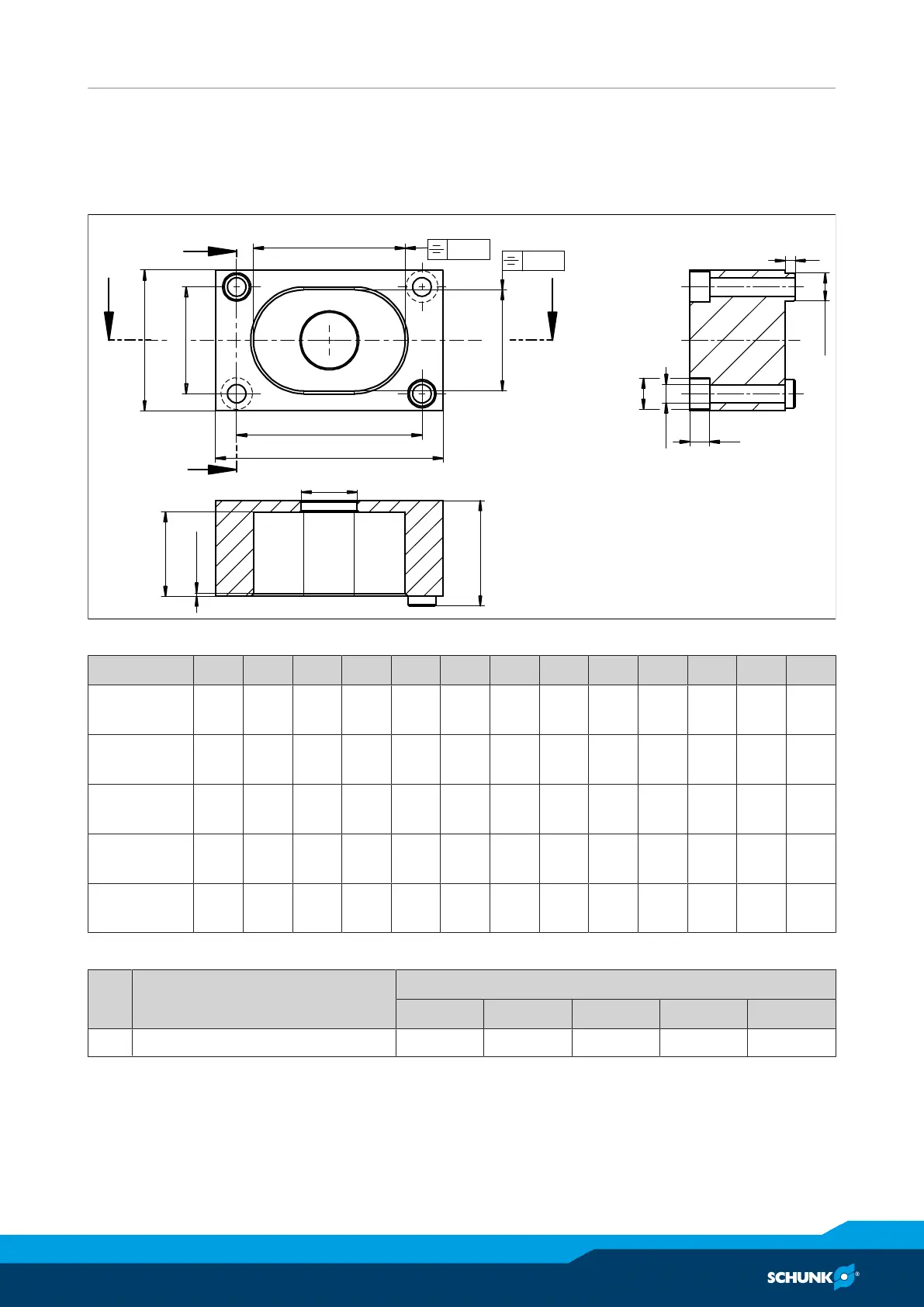

Cylinder piston assembly device - dimensions in mm
a b c d e l1 l2 d1 d2 d3 t1 t2 t3
PGN-plus
40
38 24 20 22.5 14.5 32 18 5 3.5 6.5 14 2 4
PGN-plus
50
42 30 25 25 19 35 22 6 3.5 8 18 2.5 6
PGN-plus
64
52 36 27 31 24 42 27 8 5.5 10 23 2.5 7
PGN-plus
80
63 42 32 42 30 52 32 8 5.5 10 25 2.5 6
PGN-plus
100
81 50 38 54 36 66 38 10 6.6 11 30 3.5 7
Screw for assembly device
Item Designation PGN-plus
40 50 64 80 100
101 Screw (DIN EN ISO 4762) M3 x 20 M3 x 25 M5 x 30 M5 x 35 M6 x 40
