SCHUNK PGN-plus - Connections; Mechanical Connection

Assembly
20
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296
Dust-tight (SD)
NOTE
In order to achieve perfect functioning of the gripper, the set-
screw of the air purge connection must be removed and replaced
with a pneumatic connection when using the dust-tight variant
(SD). SCHUNK recommends using the air purge connection within
the scope of the technical data, Technical data [
}
17].
5.2 Connections
5.2.1 Mechanical connection
DANGER
Danger of explosion in explosion risk areas!
• Follow the instructions in supplementary sheet "Installation
and operating instructions - EX" for modules in explosion-
resistant versions (EX)!
Evenness of the
mounting surface
The values apply to the whole mounting surface to which the
product is mounted.
Requirements for evenness of the mounting surface (Dimensions in mm)
Edge length Permissible unevenness
< 100 < 0.02
> 100 < 0.05

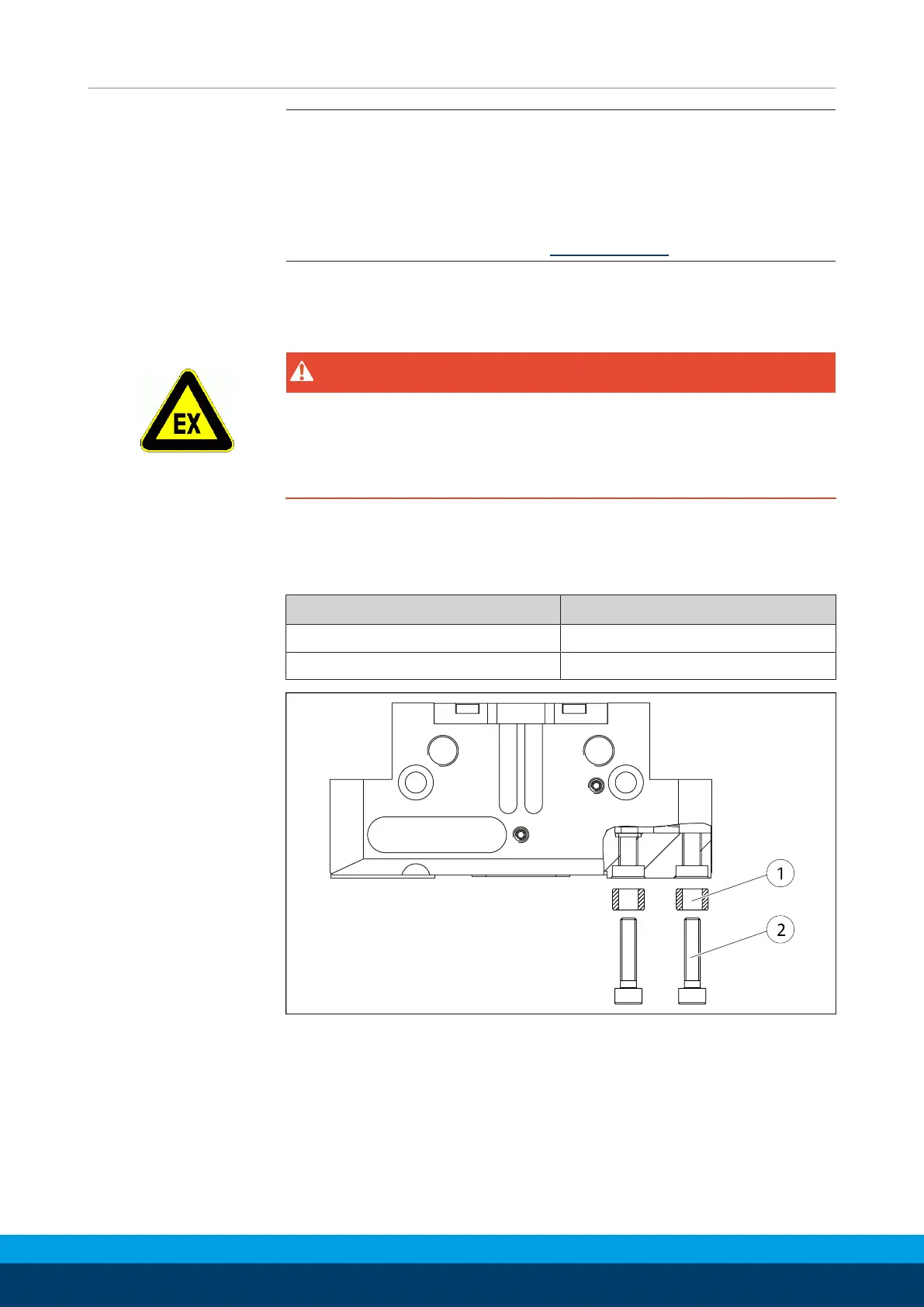

Connections at the
base jaws
Connections at the base jaws
