Assembly
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296
21
Item
Mounting PGN-plus
40 50 64 80 100 125
1 Centering sleeve Ø4 Ø5 Ø6 Ø8 Ø10 Ø10
2 Thread in base jaws M2.5 M3 M4 M5 M6 M6
Mounting screw
strength class
12.9
Max. depth of
engagement from
locating surface [mm]
6.1 8.5 10 10 14 13
Item
Mounting PGN-plus
160 200 240 300 380
1 Centering sleeve Ø14 Ø16 Ø16 Ø22 Ø28
2 Thread in base jaws M10 M12 M12 M16 M20
Mounting screw strength
class
12.9
Max. depth of engagement
from locating surface [mm]
17 17 21 28 40
Dust-tight (SD)
NOTE
On delivery of the dust-tight version (SD) the intermediate jaws
are screwed onto the base jaws. The intermediate jaws can
become off while removing the screws.
Observe during assembly, that the intermediate jaws are between
the base jaws und the gripper finger.

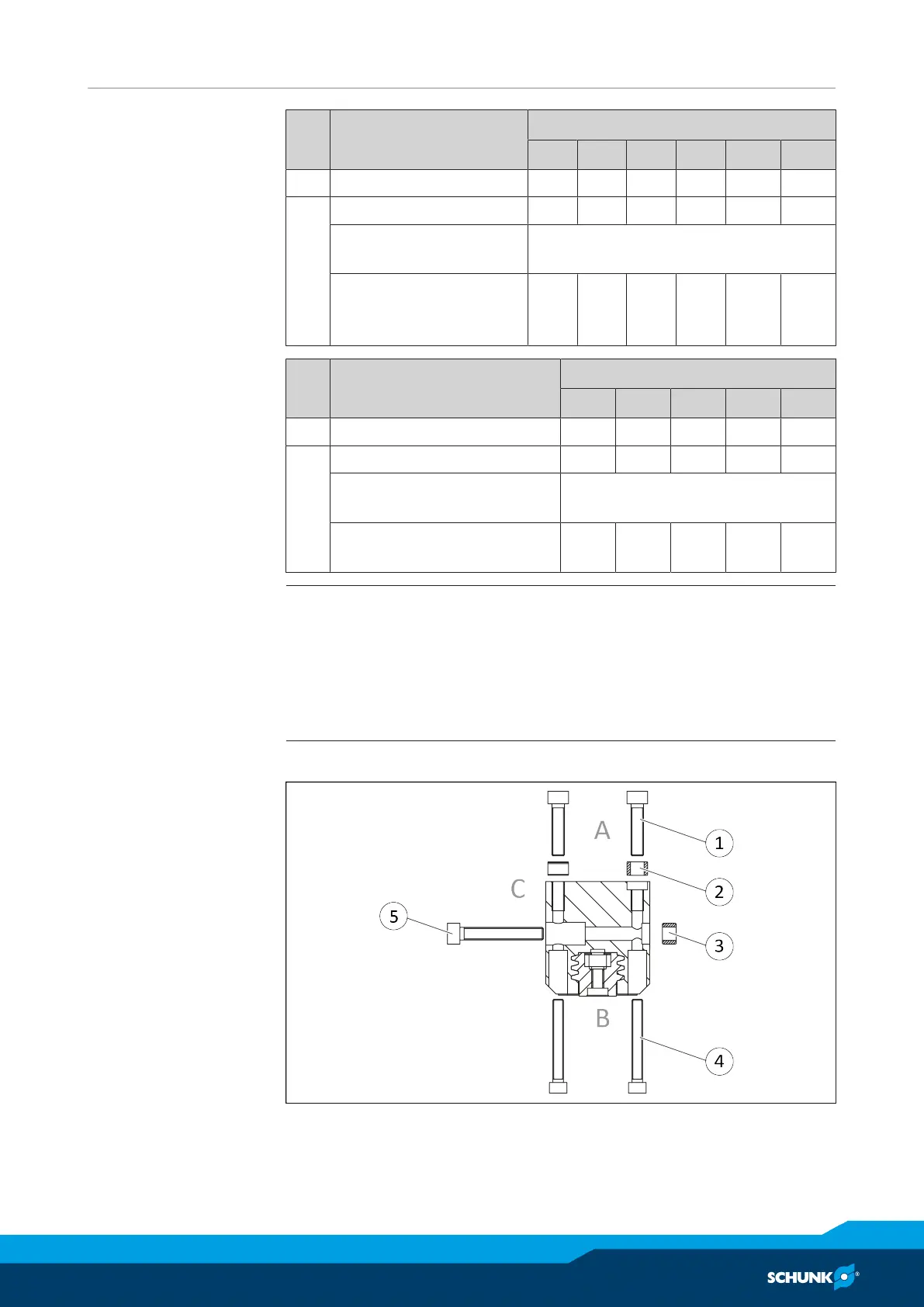

Connections at the
housing
The product can be mounted from three sides.
Connections at the housing
