Maintenance
54
09.00 | PGN-plus | Assembly and Operating Manual | en | 389296

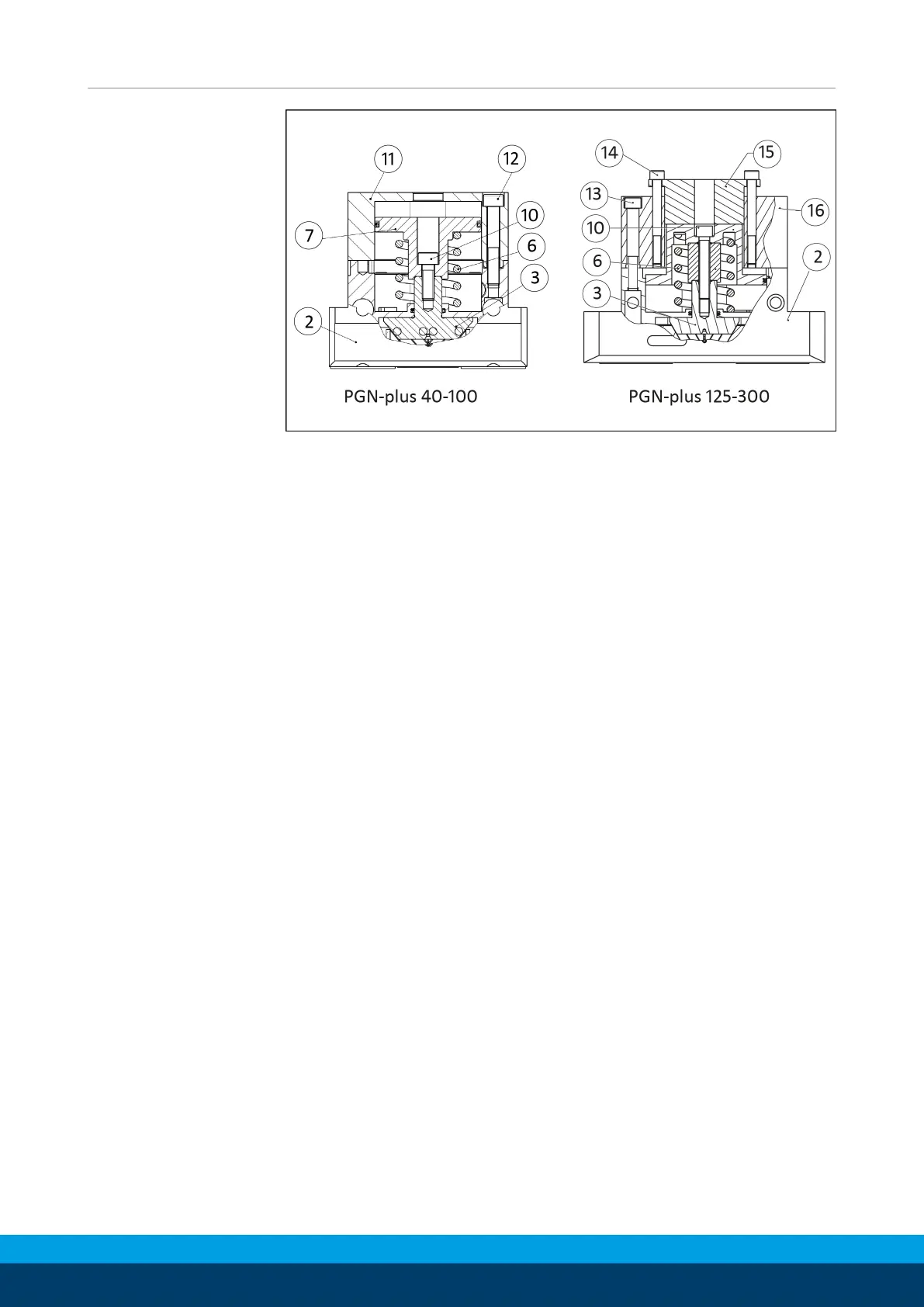

Ø Size 40-100: Instead of the cover (9) position device (11) with
the centering sleeves (5) on the housing (2) then fasten both
components with screws (12).
Size 125-380: Sizes 125-380 require a two-part device. Instead
of the cover (9) position device 1 (16) with the centering sleeves
on the housing (2) then fasten both components with screws
(13). Position device 2 (15) in device 1 (16) and fasten them
both with 2 screws (14).
Ø Unscrew the screw (10).
Ø Size 40-100: Loosen the screws (12) evenly and carefully
remove device (11).
Size 125-380: Loosen the screws (13) evenly and carefully
remove devices (15/16).
Ø Press the piston (3) upward out of the housing (2).
Ø Pull the base jaws (4) out of the housing (2).
