Date Code 20000421 Installation 6-19
SEL-251, -2, -3 Instruction Manual

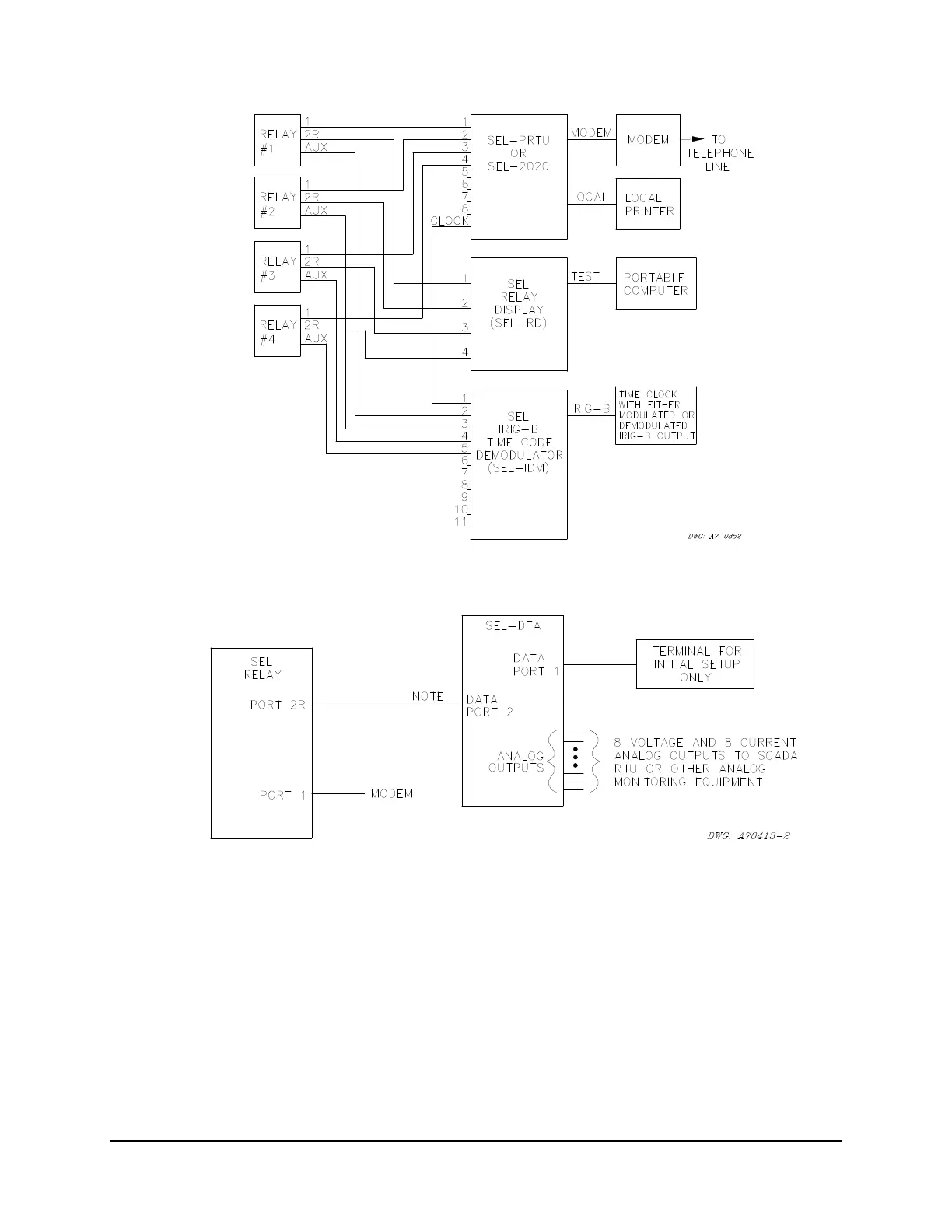

Figure 6.10: Remote Communications, Local Display, and Clock Connections - Multiple
Relay Units at One Location
Figure 6.11: SEL Relay Communications Diagram for Connection to the SEL-DTA
