6-20 Installation Date Code 20000421
SEL-251, -2, -3 Instruction Manual

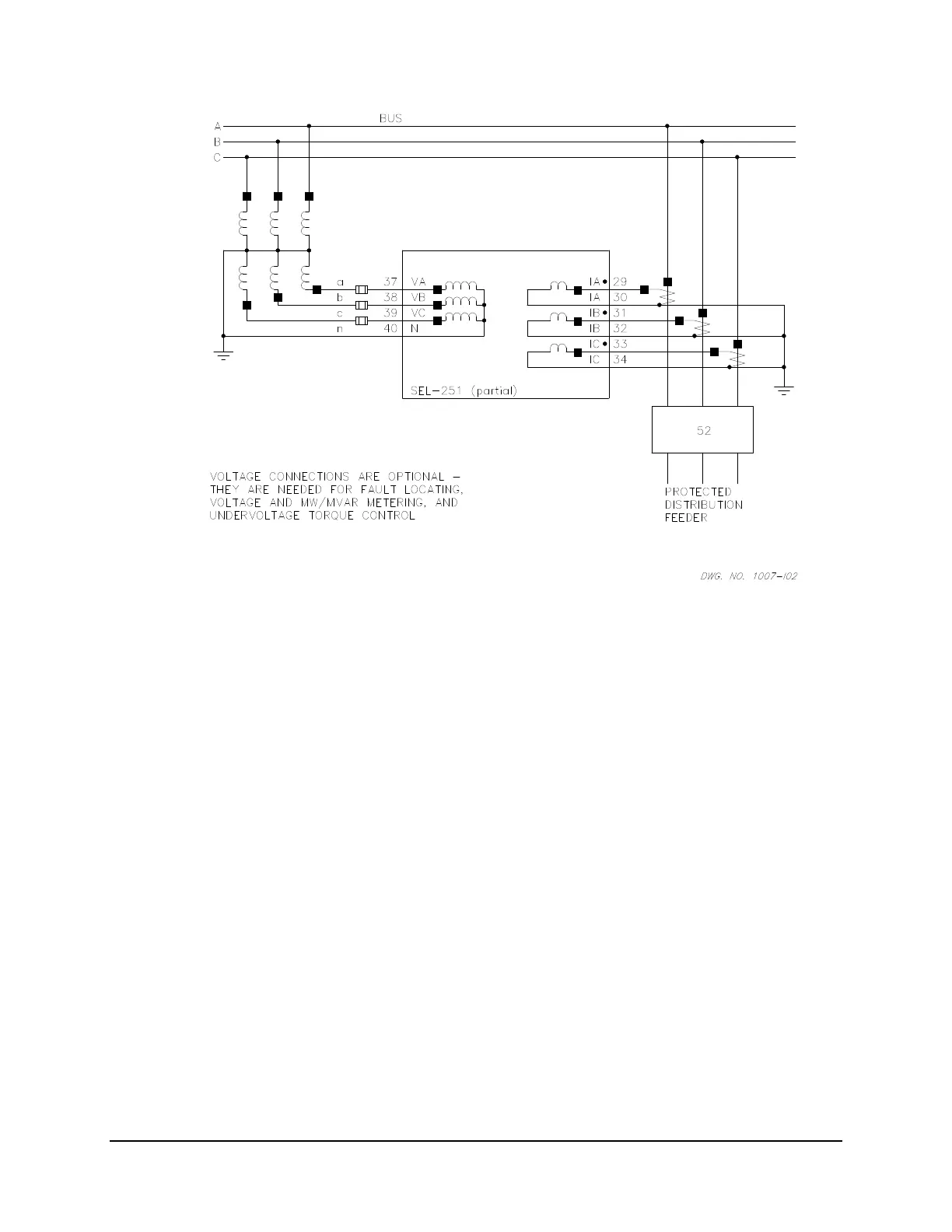

Figure 6.12: SEL-251 Relay Typical AC External Current and Voltage Connections
