Schwing CPC III - Page 36

DATE
SHEET NUMBER
REV.
SIZE
DRAWING NUMBER
B
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A
A
B
B
C
C

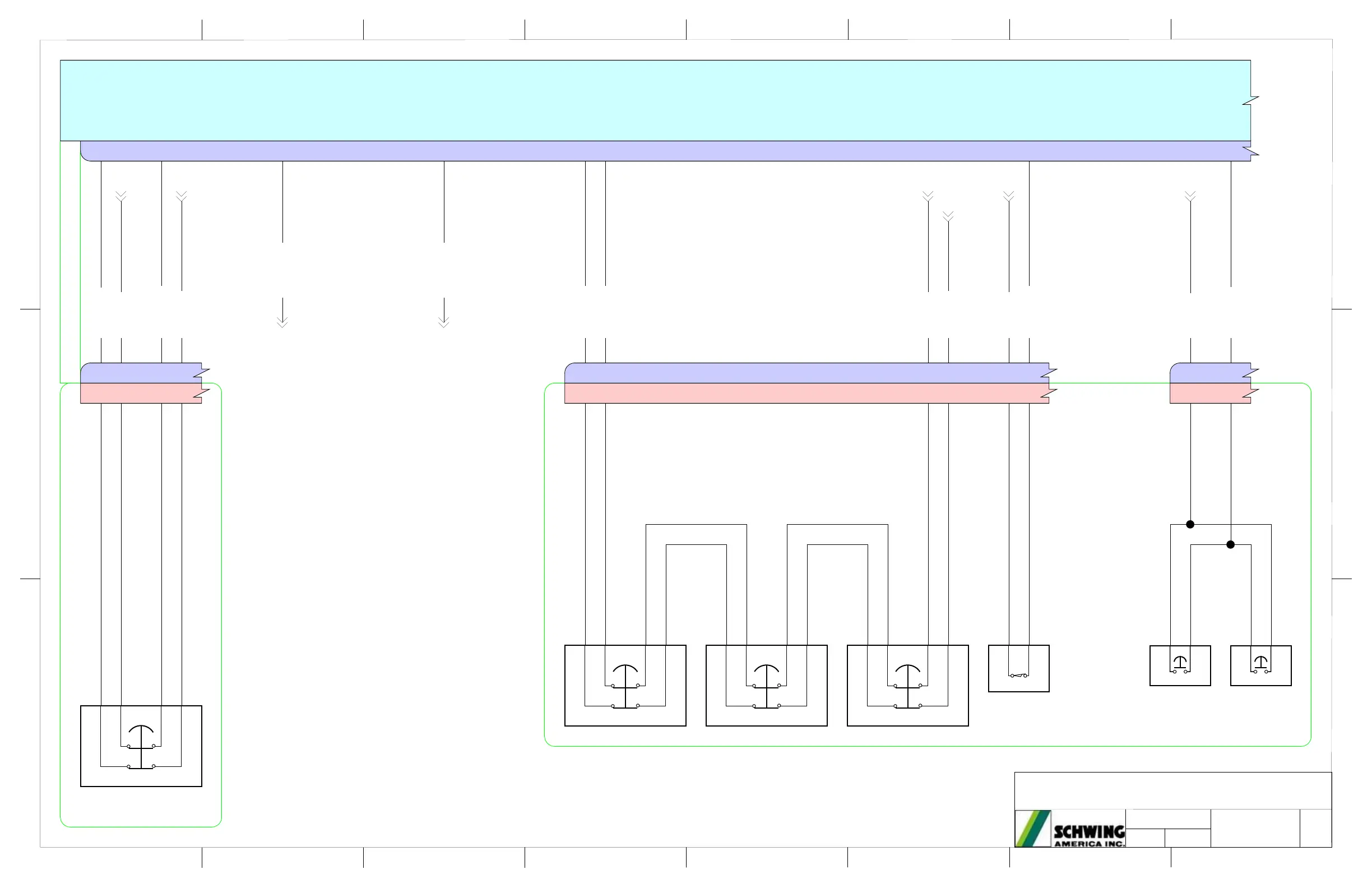

Schematic CPC3
01
98455320
4 of 18
6/10/20
REFERENCE ONLY
Main Harness: 98457837
REFERENCE ONLY
SP20
SP21
PLCST
33 52 34 53 35 54 36 55
JRC
E H R F C S
JBC
k U m T
PFC
S
b
P17/C-5
JFC
S b
PBC
k
U
m
T
P17/A-5
PRC
E
H
R
F
C
S
P17/C-8
HANDVALVES E-STOP
NC
PUSH BUTTON
E-STOP HOPPER RIGHT
4 56 7
NC
PUSH BUTTON
E-STOP WATERBOX
4 56 7
NC
PUSH BUTTON
HOPPER GRATE
SWITCH
NC
OUTRIGGER
ENABLE LEFT
NO
PUSH BUTTON
OUTRIGGER
ENABLE RIGHT
NO
PUSH BUTTON
PLC - 98391422
33 - IN07
OUTRIGGER ENABLE PB
34 - IN05
E-STOP REAR CH2
35 - IN03
E-STOP REMOTE CH2
36 - IN01
E-STOP CH2
52 - IN06
HOPPER GRATE
53 - IN04
E-STOP REAR CH1
54 - IN02
E-STOP REMOTE CH1
55 - IN00
E-STOP CH1
E-STOP HOPPER LEFT
4 56 7
NC
PUSH BUTTON
PLCST:55-PBC:k
WH 0.8mm²
PLCST:36-PBC:U
WH 0.8mm²
PLCST:53-PRC:E
WH 0.8mm²
PLCST:34-PRC:H
WH 0.8mm²
PLCST:52-PRC:R
WH 0.8mm²
PLCST:33-PFC:S
WH 0.8mm²
PLCST:54-PPRS:4
RD 0.8mm²
P18/B-7
PLCST:35-PPRS:7
RD 0.8mm²
P18/B-8
PDM4:B-PBC:m
RD 0.8mm²
P3/A-7
PDM4:G-PBC:T
RD 0.8mm²
P3/A-6
PDM1:H-PFC:b
RD 0.8mm²
P3/A-7
PDM4:D-PRC:C
RD 0.8mm²
P3/A-6
PDM4:E-PRC:F
RD 0.8mm²
P3/A-6
PDM1:B-PRC:S
RD 0.8mm²
P3/A-8
