Schwing CPC III - Page 37

DATE
SHEET NUMBER
REV.
SIZE
DRAWING NUMBER
B
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A
A
B
B
C
C

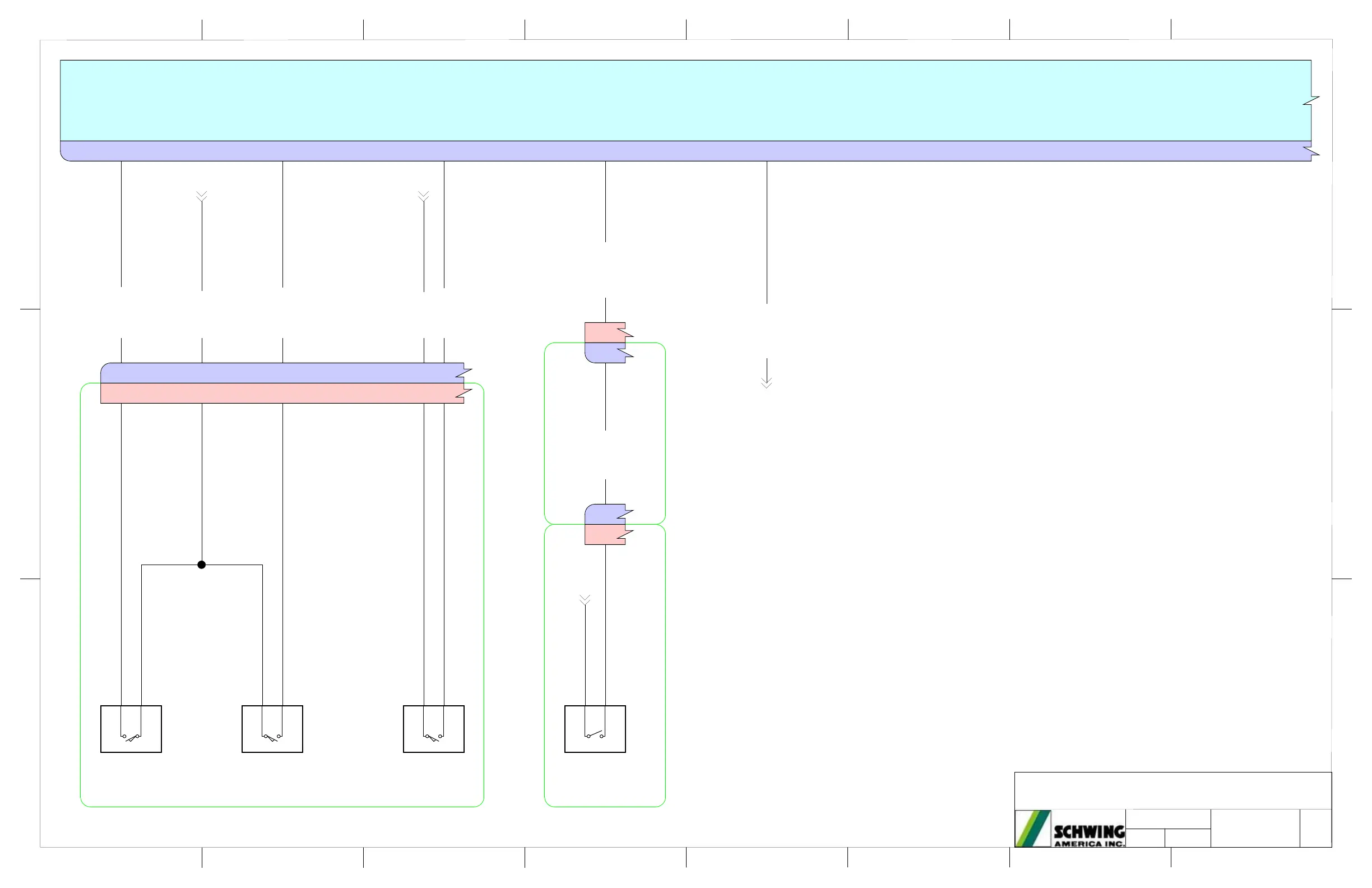

Schematic CPC3
01
98455320
5 of 18
6/10/20
REFERENCE ONLY
98457028
REFERENCE ONLY
SP24
JIOC
B
PIOC
B
P7/B-8
JIOE
12
PIOE
12
P16/C-3
JFC
K L J W j
PFC
K
L
J
W
j
P17/C-5
PLCST
24 41 23 40 22 39 21 38
SLEW LIMIT
RIGHT
NO
SLEW LIMIT
LEFT
NO
BOOM #1
TELESCOPE
DISABLE
NO
RAM CHANGE
SWITCH
NO
PLC - 98391422
21 - IN14 22 - IN12
MAINTENANCE SWITCH
23 - IN10
TELESCOPE DISABLE
24 - IN08
SLEW LIMIT LEFT
38 - IN15 39 - IN13 40 - IN11
RAM CHANGE MODE
41 - IN09
SLEW LIMIT RIGHT
PLCST:24-PFC:K
WH 0.8mm²
PLCST:41-PFC:L
WH 0.8mm²
PDP1:1-PLCST:22
WH 0.8mm²
P8/B-7
PDM1:E-PFC:W
RD 0.8mm²
P3/A-8
PDM10:B-PFC:j
GY 0.8mm²
P3/C-3
PIOE:12-PIOC:B
WH 0.8mm²
PLCST:40-JIOE:12
WH 0.8mm²
P6/A-8
PLCST:23-PFC:J
WH 0.8mm²
