SDLG WP6 - Engine Accessory System; 3111 Disassembly and Assembly of Engine Accessory System

Service Manual for WP6 Diesel Engine
96
311 Engine Accessory System
3111 Disassembly and Assembly of Engine Accessory System
31111 Exploded View of Engine Accessory System
Gasket
Hexagon bolt
Draw-in bolt
Nut
Draw-in bolt pad
Air compressor
Hexagon bolt
Gasket
Generator
Generator support
Air compressor support
Belt
Gasket
Sleeve
Hexagon socket cap screw

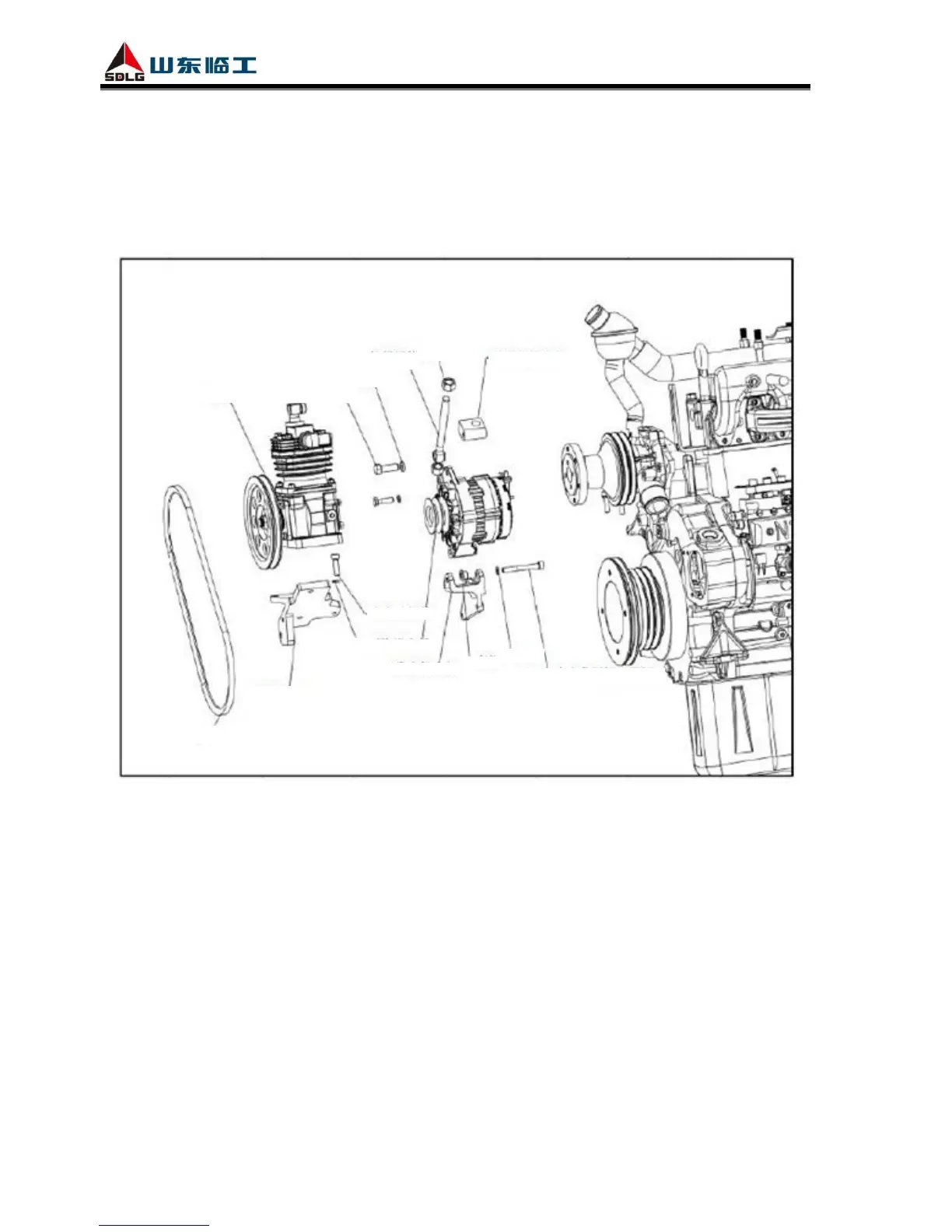

Fig. 3-59 Exploded view of engine accessory system
31112 Steps to Disassemble Engine Accessory System
(1) Remove air compressor pulley belt, air compressor and its connecting bolts, refer to
disassembly of air compressor for details.
(2) Remove generator draw-in bolt and generator, refer to disassembly of generator for details.
