Service Manual for WP6 Diesel Engine
26
32 Cylinder Cover Assembly
321 Disassembly and Assembly of Cylinder Cover Assembly

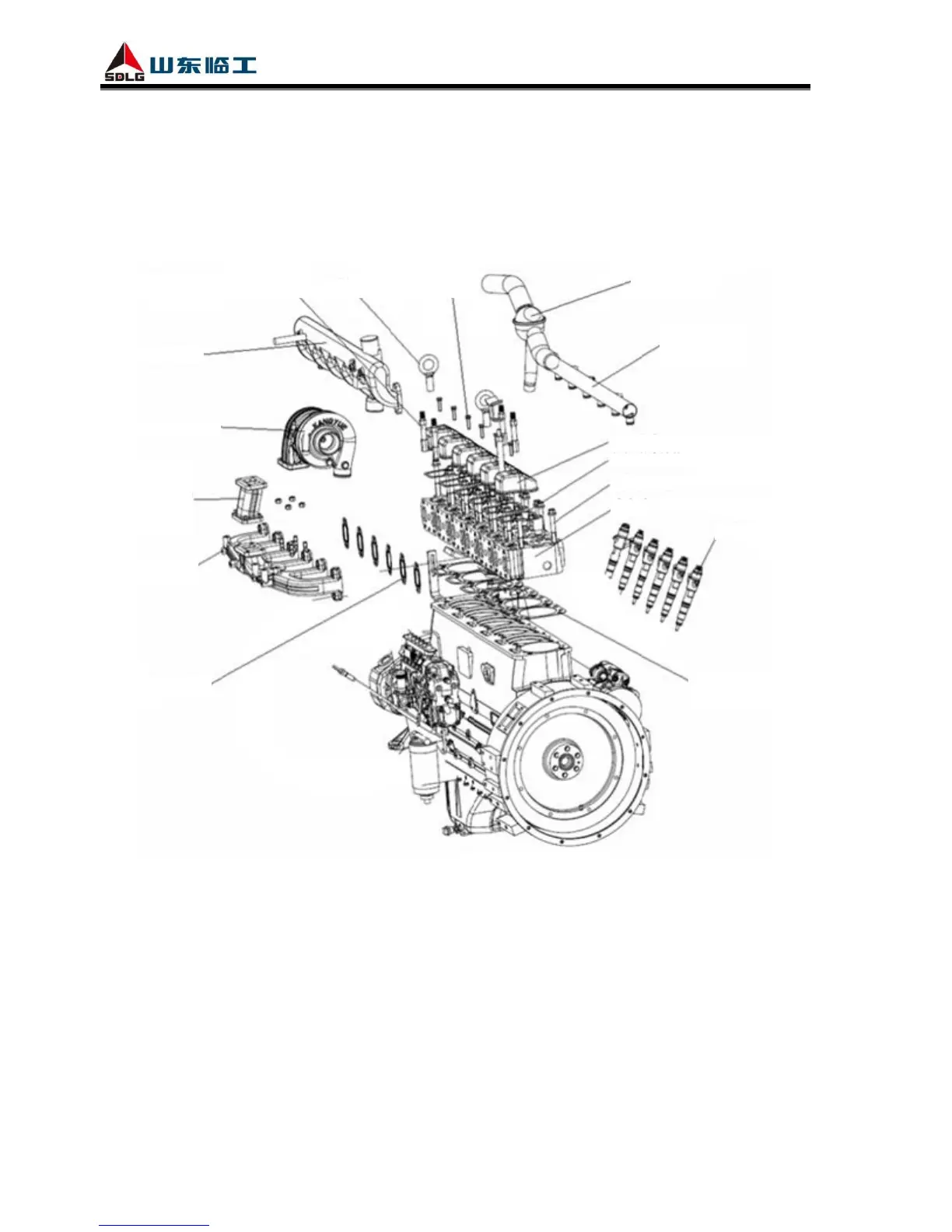

3211 Exploded View of Cylinder Cover Assembly
Connecting
bolt
Lifting eye
Cylinder
cover shield
bolt
Thermostat
Intake pipe
Turbocharger
Exhaust
pipe
adapter
Exhaust pipe
Intake pipe
gasket
Water
outlet pipe
Cylinder cover shield
Cylinder cover shield gasket
Cylinder cover bolt
Cylinder cover
Injector
Cylinder
cover gasket
Fig. 3-1 Exploded view of cylinder cover assembly
3212 Steps to Disassemble Cylinder Cover Assembly
(1) Remove air filter, refer to disassembly of air intake and exhaust system for details;
(2) Remove turbocharger and its connecting pipes, refer to disassembly of air intake and exhaust
system for details;
(3) Remove injector fuel return pipe, disconnect high pressure fuel pipe, refer to disassembly of
fuel system for details;
(4) Remove thermostat and its water outlet pipe;
