Service Manual for WP6 Diesel Engine
86
382 Disassembly, Inspection, Maintenance and Assembly of Fan
3821 Exploded View of Fan

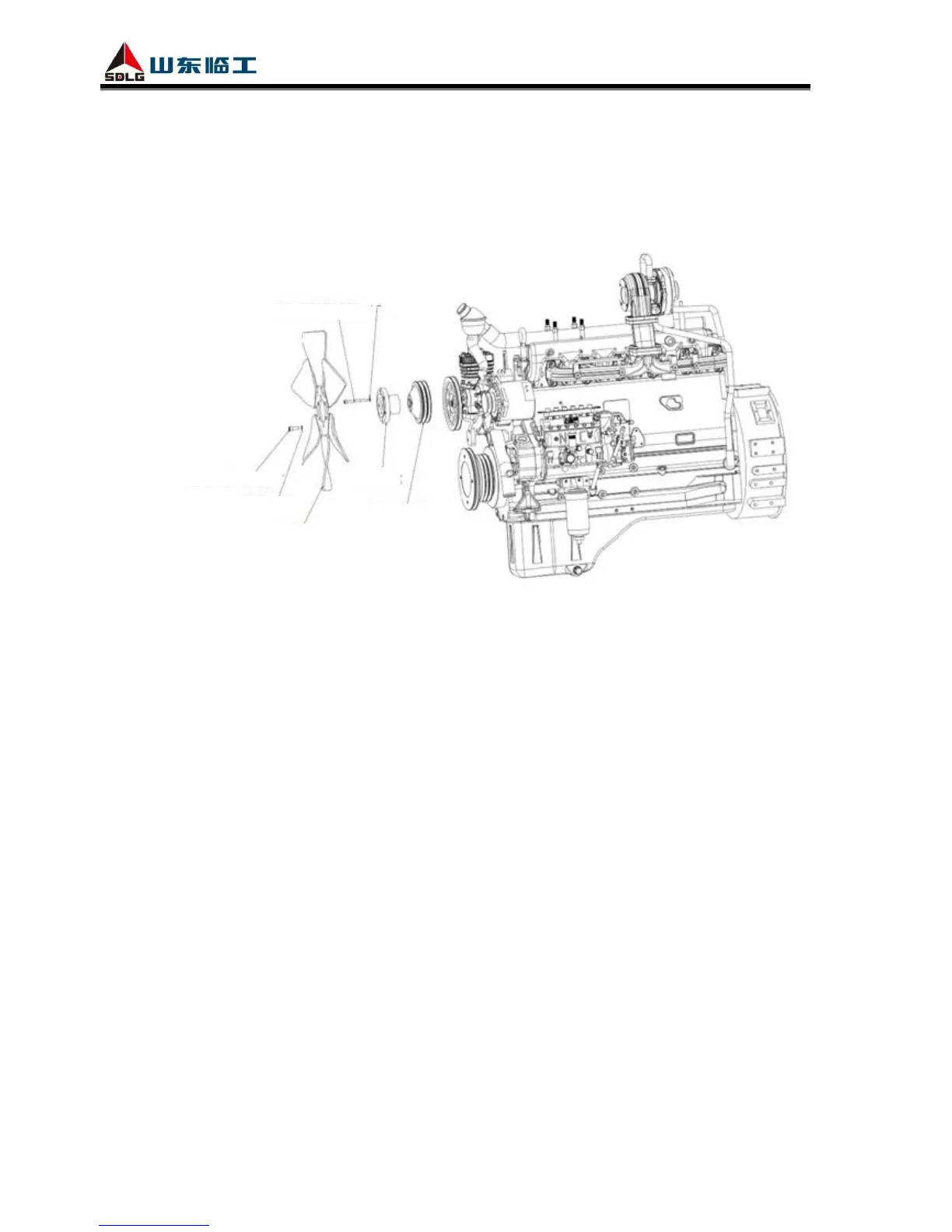

Fig. 3-49 Exploded view of fan
3822 Steps to Disassemble Fan
As shown in Fig. 3-49:
(1) Remove the screws and gaskets that connecting fan and connecting plate, take down the fan.
(2) Remove the screws and gaskets that connecting the pulley and connecting plate.
(3) Remove connecting plate.
(4) Take down the pulley.
3823 Inspection and Maintenance of Fan
Check fan, connecting plate and water pump pulley for crack and damage.
3824 Steps to Assemble Fan
Assembling steps are contrary to disassembling ones.
